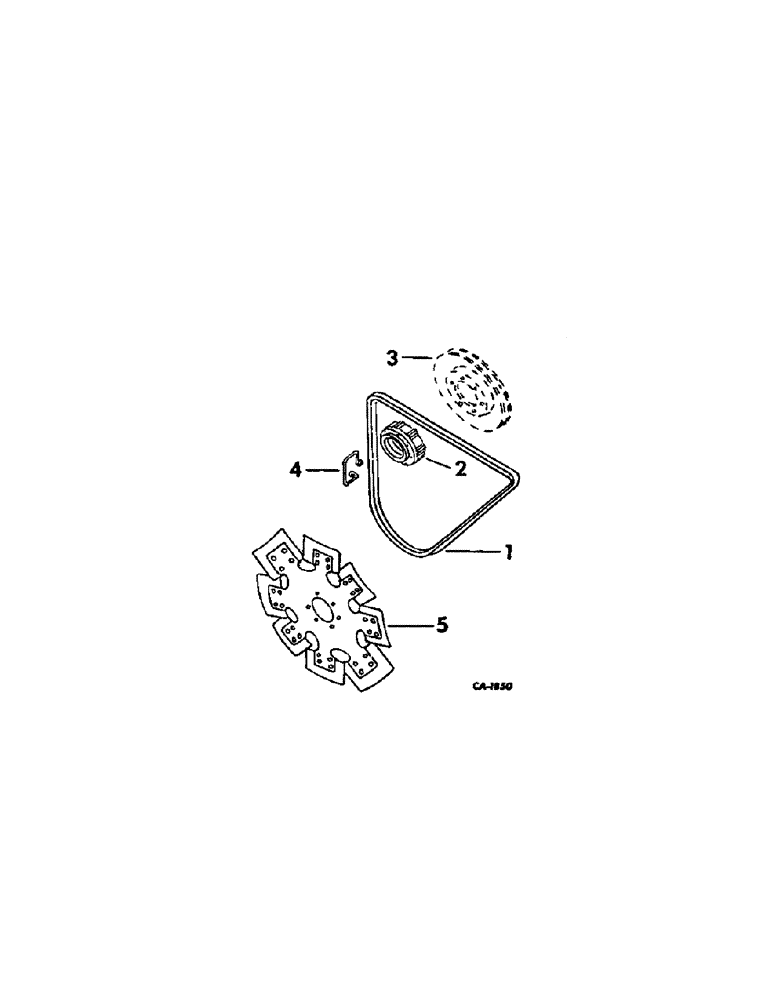

Запчасти Case IH 21026 (06-03) - COOLING, FAN BLADES, BELT AND CONNECTIONS Cooling

1

385120R2

V-BELT,0.597" W 66.50" L

Water pump & alternator 0.597" W 66.50" L

1шт.

2

(Not used in this application)

1шт.

3

PULLEY, water pump, refer to the water pump section in the Eng-5 catalog

1шт.

4

(Not used in this application)

1шт.

5

530119R1

FAN ASSY, blade

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Hex, 3/8"-16 x 1", G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.
