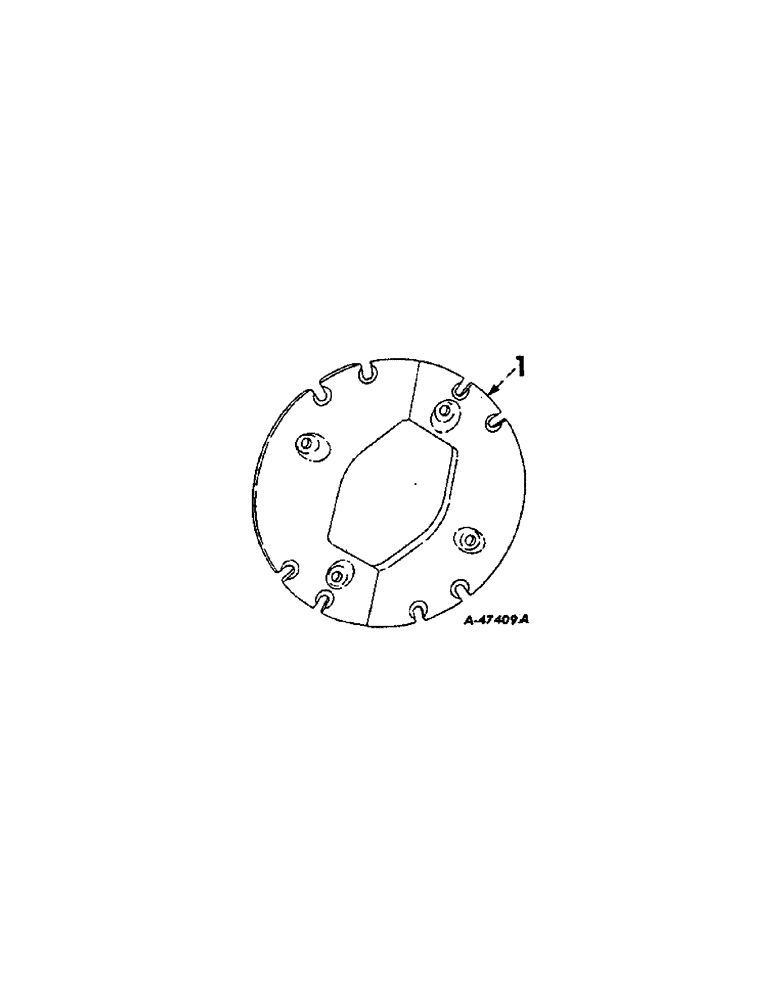

Запчасти Case IH 21026 (02-04[B]) - MISCELLANEOUS, REAR WHEEL WEIGHTS, SPLIT TYPE Accessories & Attachments / Miscellaneous

1

400078R1

WHEEL WEIGHT

WEIGHT, rear wheel, half, approx 75 lbs, first position

4шт.

401919R1

BOLT,3/4" - 10 x 9 1/2"

3/4-10 x 9-1/2 C-Z sq-hd mach, 8 used w/30 in. wedge lock rear wheels

1шт.

375116R1

BOLT,3/4" - 10 x 4"

3/4-10 x 4 C-Z sq-hd mach, 8 used w/34 & 38 in. rear wheels

1шт.

401918R1

BOLT (SPREADER),3/4" - 10 x 6 1/2"

BOLT, 3/4-10 x 6-1/2 C-Z sq-hd mach, 8 used w/34 & 38 in. wedge rear wheels

1шт.

366110R1

BOLT,Sq Hd, 3/4" - 10 x 4 3/4"

3/4-10 x 4-3/4 C-Z sq-hd mach, 8 used w/38 in. power adjusted rear wheels

1шт.

280954

NUT,3/4"-10, G5

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

1

400078R1

WHEEL WEIGHT

WEIGHT, rear wheel, half, approx 75 lbs, second or third position

4шт.

366111R1

BOLT,Sq Hd, 3/4" - 10 x 3 1/4"

3/4-10 x 3-1/4 C-Z sq-hd mach

8шт.

280954

NUT,3/4"-10, G5

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

8шт.

366112R1

WASHER

11/32 x 1-1/4 x 11 ga

16шт.
