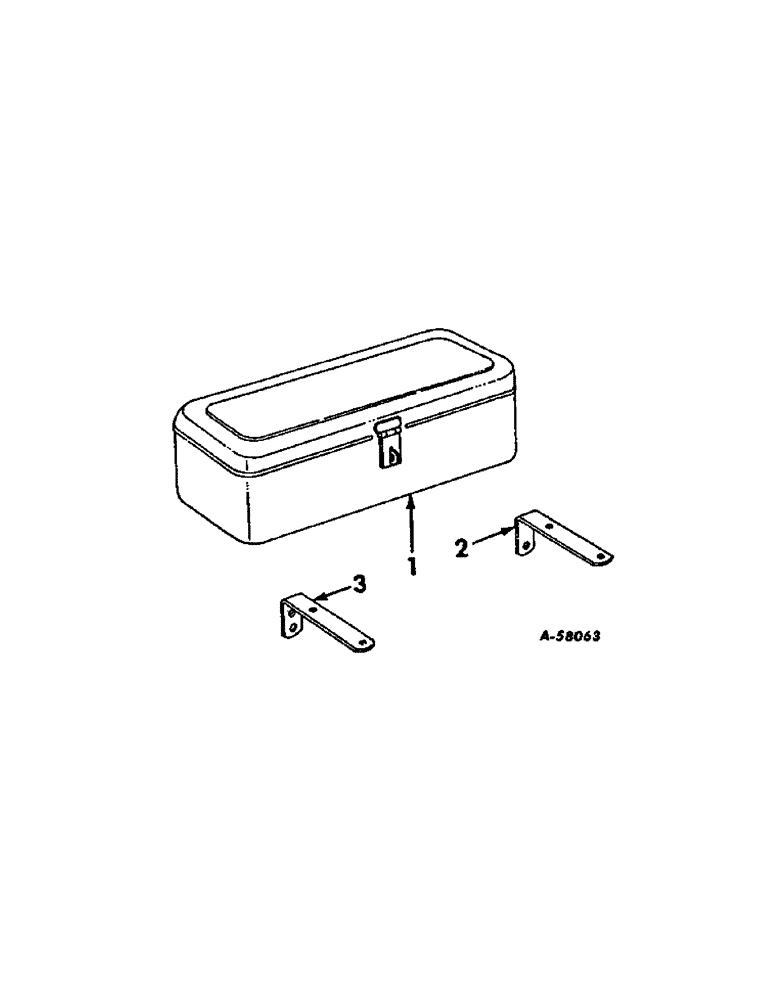

Запчасти Case IH 21026 (02-02[A]) - MISCELLANEOUS, TOOL BOX, MOUNTED ON FRONT CHANNEL Accessories & Attachments / Miscellaneous

1

400455R1

BOX, TOOL

BOX ASSY, tool

1шт.

102635

NUT,3/8"-16, G5

4шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

4шт.

2

373901R1

BRACKET, tool box rear

1шт.

102639

NUT,5/8"-11, G5

2шт.

271557

DEFLECTOR,Hex, 5/8" - 11 x 1 3/8", Gr 5

SCREW, 5/8-11 x 1-3/8 hex-hd cap

2шт.

20662R1

BOLT (SPREADER),Hex, 5/8" - 11 x 2 1/8", Gr 8

SCREW, 5/8-11 x 2-1/8 hex-hd cap, diesel engine tractors

1шт.

578274R1

WASHER

21/32 x 1 x 11 ga

2шт.

3

373901R1

BRACKET, tool box front

1шт.

102639

NUT,5/8"-11, G5

2шт.

13-1022

BOLT,Hex, 5/8" - 11 x 1-3/8", Gr 5, Full Thd

SCREW, 5/8-11 x 1-3/8 hex-hd cap

2шт.

20662R1

BOLT (SPREADER),Hex, 5/8" - 11 x 2 1/8", Gr 8

SCREW, 5/8-11 x 2-1/8 hex-hd cap, diesel engine tractors

1шт.

578274R1

WASHER

21/32 x 1 x 11 ga

2шт.
