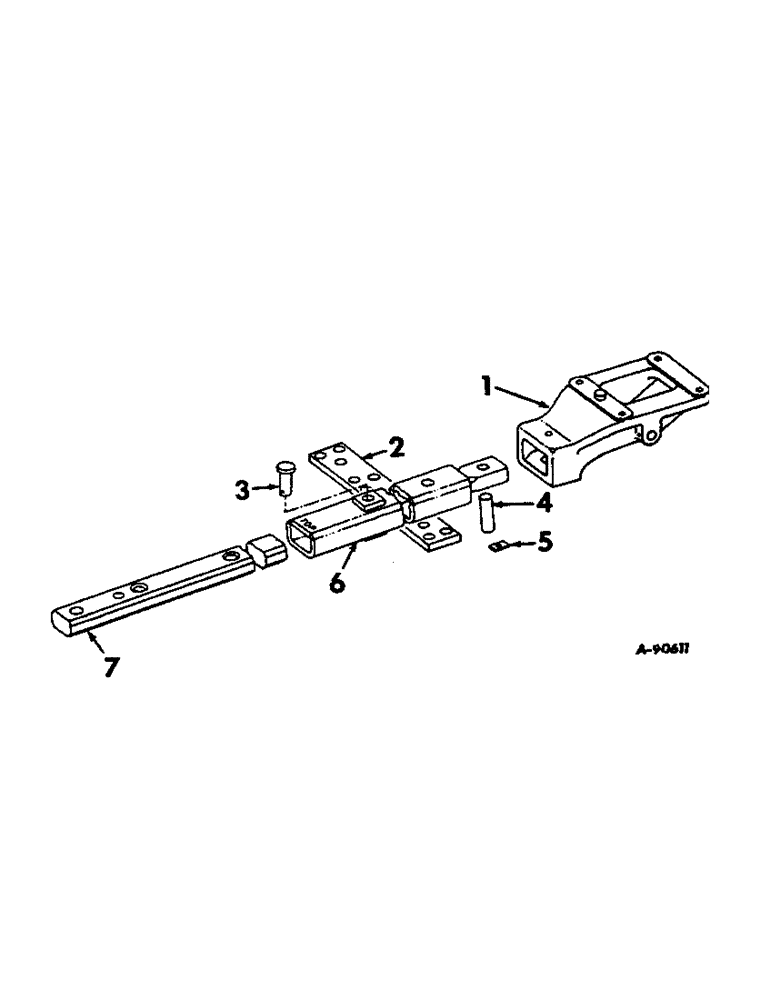

Запчасти Case IH 21026 (09-05) - FRAME, SWINGING DRAWBAR, TRACTORS WITH TWO OR THREE POINT HITCH (12) - FRAME

ATTACHMENT, swinging drawbar, tractors with three point hitch, 400866R91, consists of all parts marked unit A

1шт.

ATTACHMENT, independent swinging drawbar, tractors with two-point hitch, 393502R91, consists of all parts marked unit B

1шт.

1

SUPPORT ASSY, swinging drawbar pivot, refer to rear frame, cover and connection listing, section 7

1шт.

2

389065R1

BAR, support, unit B

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd cap

4шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 hex-hd cap, drawbar stop

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

2шт.

3

389428R1

AXLE PIN,25.4mm OD x 95.25mm L

PIN, drawbar, units A & B, operating position

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

3

397067R1

PIN

drawbar, units A and B, storage position

1шт.

4

57654D

PIVOT PIN

PIN, drawbar pivot, units A & B

1шт.

5

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

PLATE, pivot pin lock, unit A & B

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

393501R11

BAR

DRAWBAR ASSY, front section, units A & B

1шт.

7

397065R1

BAR

DRAWBAR, rear section, units A & B

1шт.

389070R92

PARTS ACCESSORY, hammer strap

1шт.
