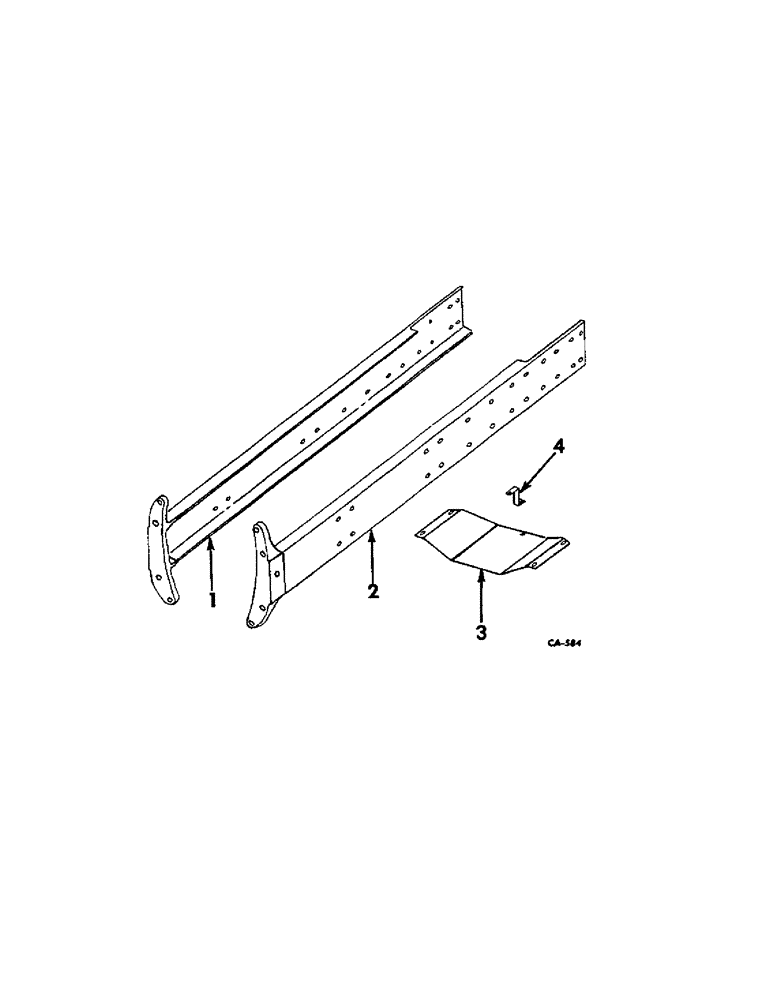

Запчасти Case IH 21026 (09-02) - FRAME, FRONT CHANNELS (12) - FRAME

1

379399R11

CHANNEL ASSY, LH front frame

1шт.

525841R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

SCREW, 5/8-11 x 1-1/2 hex-hd cap

4шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 hex-hd cap

2шт.

379401R1

SCREW, 3/4-10 x 3-1/4 hex-hd cap

2шт.

396842R1

12 PT SCREW,Flg, 3/4" - 10 x 3 1/4"

SCREW, 3/4-10 x 3-1/4 12 pt cap

2шт.

2

379400R11

CHANNEL ASSY, RH front frame

1шт.

525841R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

SCREW, 5/8-11 x 1-1/2 hex-hd cap

4шт.

271568

PIPE FITTING,Hex, 5/8" - 11 x 3 1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 hex-hd cap

2шт.

379401R1

SCREW, 3/4-10 x 3-1/4 hex-hd cap

2шт.

396842R1

12 PT SCREW,Flg, 3/4" - 10 x 3 1/4"

SCREW, 3/4-10 x 3-1/4 12 pt cap

2шт.

3

381714R1

SHIELD

fan pulley, Farmall tractors except hi-clear

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.
