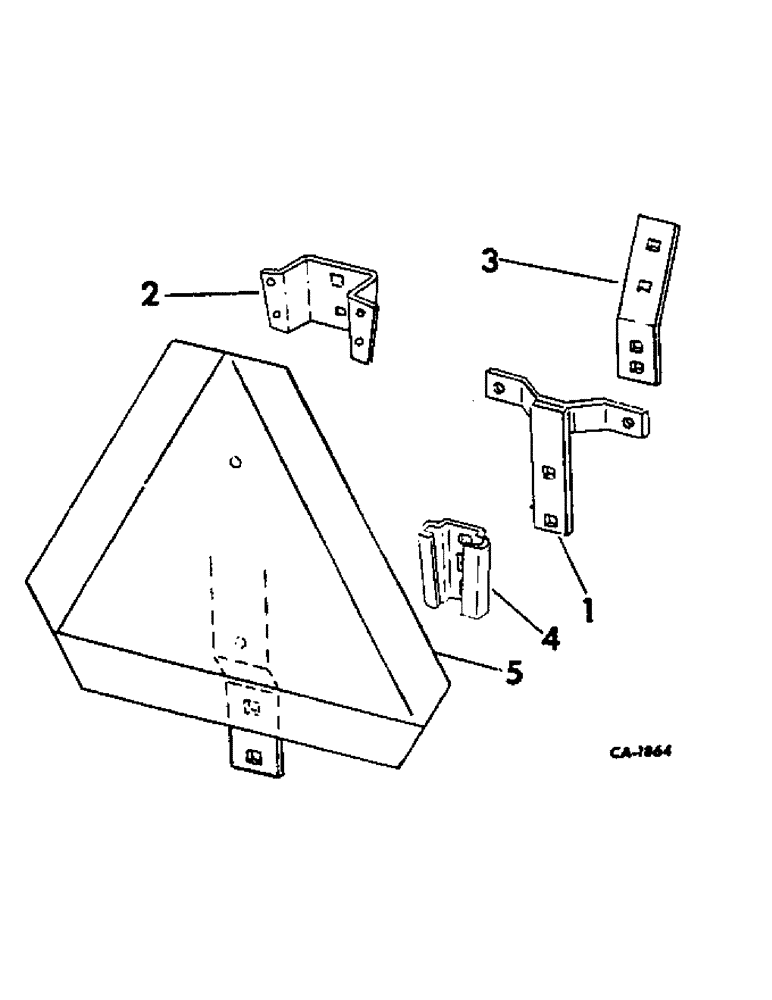

Запчасти Case IH 21026 (01-04) - PARTS ACCESSORIES AND ATTACHMENTS, SLOW MOVING VEHICLE REFLECTOR, MOUNTING BRACKET Accessories & Attachments / Miscellaneous

398972R91

PARTS ACCESSORY, S.M.V. mtg bracket, for tractors equipped w/vertical acting seat or low no sag seat, consists of ref nos. 1 and 4

1шт.

401373R91

PARTS ACCESSORY, S.M.V. mtg bracket, for tractors equipped w/hyd seat, consists of ref nos. 2 and 4

1шт.

534761R91

PARTS ACCESSORY, S.M.V. mtg. bracket, for tractors equipped w/cab, consists of ref nos. 3 and 4

1шт.

1

398973R1

BRACKET

ASSY, SMV emblem mounting

1шт.

2

401375R1

SUPPORT, SMV emblem mounting

1шт.

130141

SCREW,Sl Rnd Hd, #12 - 11 x 7/8"

12-11 x 7/8 C-Z rd hd slt wood

4шт.

3

534767R1

SUPPORT ASSY, SMV emblem mounting

1шт.

19428R1

BOLT, 5/16-18 x 5/8 cd short sq-nk crg

2шт.

19296R1

NUT,5/16"-18, G5

5/16-18 C-Z hex.

2шт.

4

398976R1

BRACKET

SOCKET, SMV emblem mounting

1шт.

19428R1

BOLT, 5/16-18 x 5/8 cd short sq-nk crg

2шт.

19296R1

NUT,5/16"-18, G5

5/16-18 C-Z hex.

2шт.

5

407218R1

PACKAGE

EMBLEM, slow moving vehicle, aluminum

1шт.

5

407220R1

PRODUCT GRAPHIC

EMBLEM, slow moving vehicle, steel

1шт.
