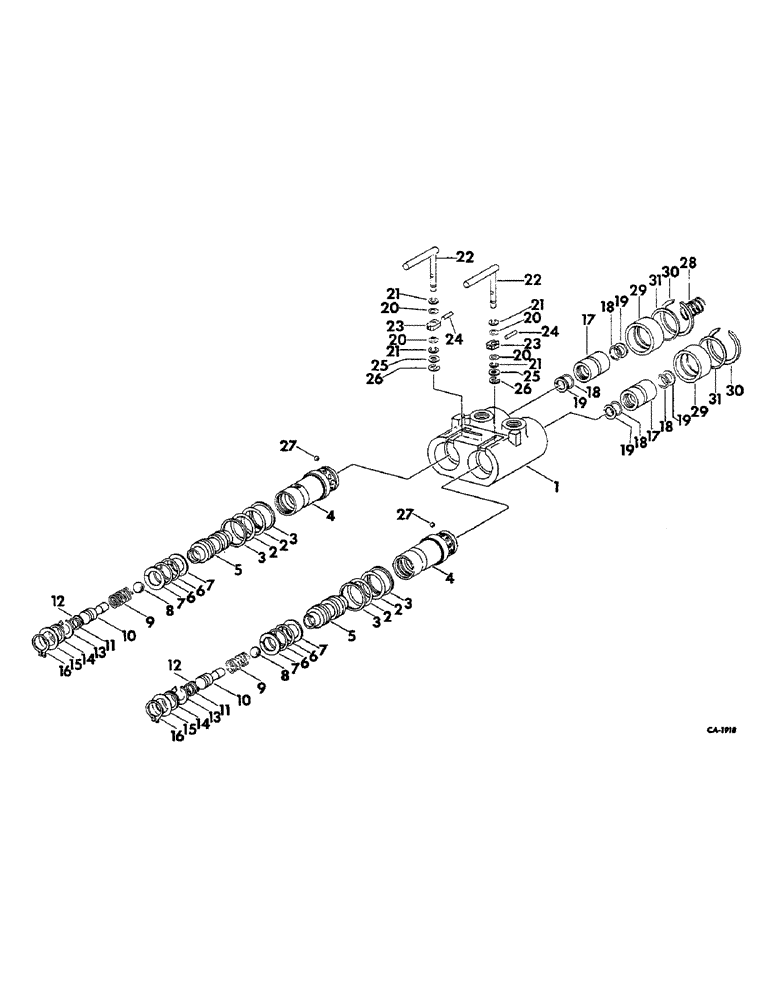

Запчасти Case IH 21026 (10-33) - HYDRAULICS, FEMALE COUPLER (07) - HYDRAULICS

544786R91

SPARE PART

COUPLER ASSY, female

1шт.

1

544788R1

BODY

female coupler

1шт.

2

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1-11/16 x 1-7/8 x 3/32

4шт.

3

544789R1

SEAL

sleeve

4шт.

4

544790R1

SLEEVE

female body large

2шт.

5

544791R1

BODY

check valve

2шт.

6

346959R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1-1/16 x 1-1/4 x 3/32

4шт.

7

544792R1

WASHER,27.66mm ID x 32.08mm OD x 1.32mm Thk

back-up

4шт.

8

17017R1

BALL,17/32" Dia

17/32 cr-stl

2шт.

9

544793R1

SPRING

hydraulic coupler

2шт.

10

544794R1

RETAINER

spring

2шт.

11

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32

2шт.

12

544795R1

WASHER

back-up

2шт.

13

544796R1

RING

spring retainer

2шт.

14

544797R1

RING

retaining check body inner

2шт.

15

22769R1

WASHER

2шт.

16

21399R1

SNAP RING,#106, Ext

Ring, Snap, , check body outer #106, Ext

2шт.

17

544798R1

BUSHING

SLEEVE, female body small

2шт.

18

528249R1

O-RING

13/16 x 1 x 3/32

4шт.

19

544799R1

WASHER

backup

4шт.

20

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

4шт.

21

544800R1

WASHER

back-up

4шт.

22

544801R1

HANDLE

ASSY, valve

2шт.

23

544804R1

CAM

check valve

2шт.

24

544805R1

PIN

cam retainer

2шт.

25

544806R1

RETAINER

cam shaft

2шт.

26

399921C1

RING

cam shaft retaining

2шт.

27

16006R1

BALL

lock 3/16 cr-slt

20шт.

28

544808R1

SPRING

lock ball retainer

2шт.

29

544809R1

RETAINER

lock ball

2шт.

30

968898R1

SNAP RING,1.938", Int, #193

Ring, Snap, 1.938", Int, #193

2шт.

31

544810R1

STOP

lock ball retainer

1шт.
