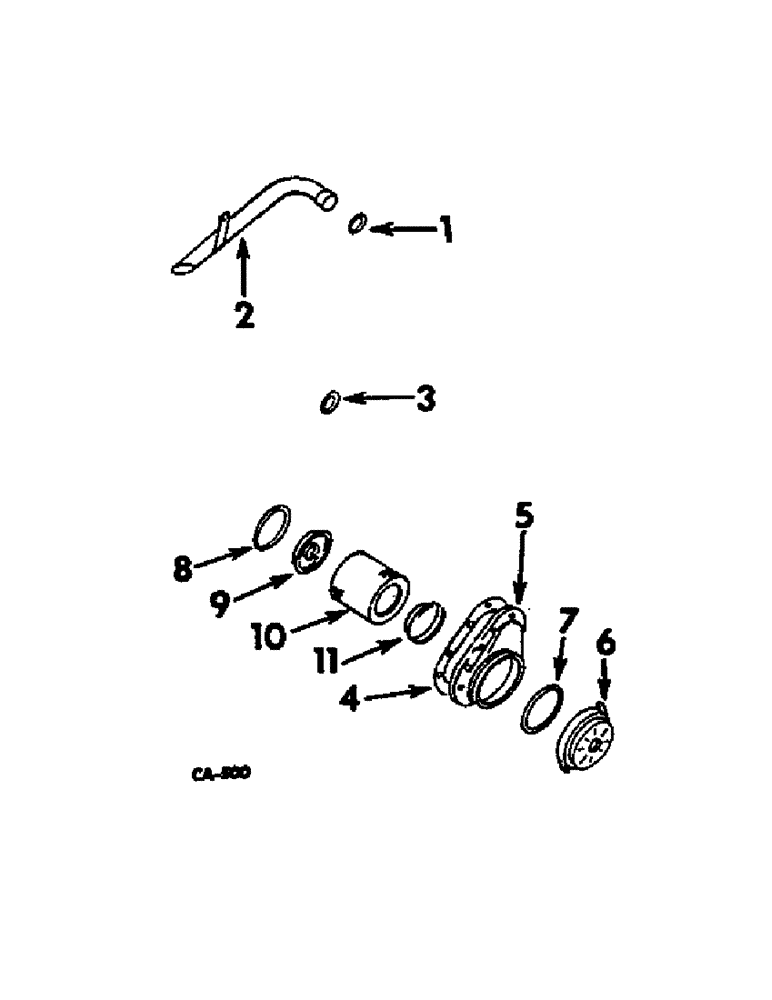

Запчасти Case IH 21026 (10-06) - HYDRAULICS, HYDRAULIC FILTER, IN REAR FRAME (07) - HYDRAULICS

1

360610R1

O-RING,1.609" ID x 0.139" Width

1-5/8 x 1-7/8 x 1/8, hydraulic filter suction tube

1шт.

2

382240R11

TUBE

ASSY, hydraulic filter suction

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

3

382242R1

RETAINER

hydraulic filter suction tube

1шт.

4

382257R1

GASKET

oil filter cover

1шт.

5

406038R1

FUNNEL

FRAME ASSY, filter

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

8шт.

6

406037R1

COVER ASSY

COVER, filter frame

1шт.

406040R1

SCREW,5/16" - 18 x 1.25"

filter cover

2шт.

7

285253R1

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

5-1/2 x 5-3/4 x 1/8, filter frame

1шт.

8

382247R1

O-RING,5.237" ID x 0.103" Width

SEAL, hyd filter cartridge retainer

1шт.

9

382246R11

RETAINER

hydraulic filter cartridge

1шт.

10

533289R91

PACKAGE

hydraulic filter service, includes ref. nos. 4 & 8

1шт.

11

386121R92

VALVE

ASSY, filter relief

1шт.
