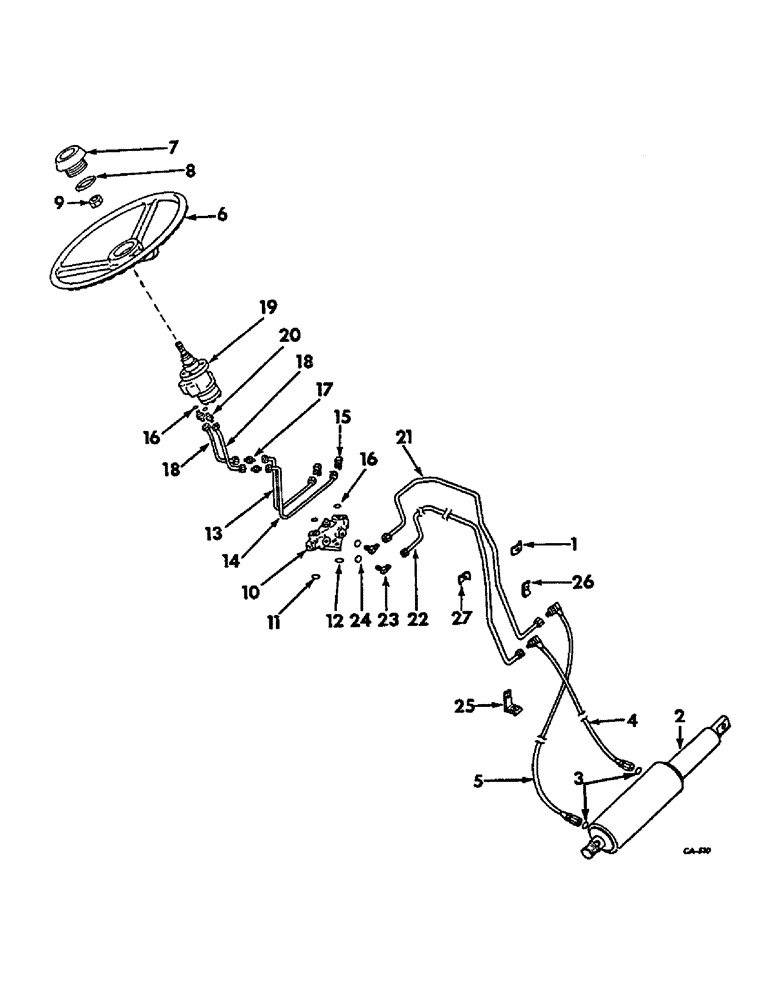

Запчасти Case IH 21026 (10-05) - HYDRAULICS, POWER STEERING, INTERNATIONAL TRACTORS (07) - HYDRAULICS

1

384891R11

CLAMP

STRIP ASSY, hyd tube clamp

1шт.

179794

BOLT,Hex, 1/4" - 20 x 11/16"

SCREW, 1/4-20 x 11/16 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

2

395068R91

CYLINDER BLOCK

CYLINDER ASSY, power steering, for components see list of parts under details of power steering cylinder, Fig. 10-11

1шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hydraulic cylinder hose

2шт.

4

384482R91

HOSE ASSY.

HOSE ASSY, hydraulic cylinder, right turn

1шт.

5

384481R91

HOSE ASSY.

HOSE ASSY, hydraulic cylinder, left turn

1шт.

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 90 deg

1шт.

6

385156R1

WHEEL (STEERING)

WHEEL, 16 in. dia steering

1шт.

6

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

7

378395R1

CAP

steering wheel

1шт.

8

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32

1шт.

9

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel

1шт.

10

527492R91

LOCK VALVE

VALVE ASSY, power steering pilot, for components see list of parts under details of power steering pilot valve, Fig.10-10

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, pressure port

1шт.

12

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, return port

1шт.

13

406159R1

TUBE ASSY, valve to hand pump left port lower section

1шт.

14

406164R1

TUBE

ASSY, valve to hand pump right port lower section

1шт.

15

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg hyd flared tube adj str thd 90 deg, valve to hand pump tube

2шт.

16

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

4шт.

17

9403216

HYD CONNECTOR,3/4"-16, 37 Degree

UNION, 3/4-16 deg C-Z hyd flared tube, valve to hand pump tube

2шт.

18

406165R2

TUBE ASSY, valve to hand pump upper section

2шт.

19

378578R95

HYDRAULIC STEERING

PUMP ASSY, power steering hand, for components see list of parts under details of hydrostatic power steering hand pump, Fig. 10-9

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

20

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 37 deg C-Z hyd flared tube short swivel, upper tube to hand pump

2шт.

21

406168R1

TUBE ASSY, valve to front cyl port

1шт.

22

406169R1

TUBE ASSY, valve to rear cyl port

1шт.

23

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 90 deg

2шт.

24

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

25

384585R11

SUPPORT ASSY, pressure tube

1шт.

26

381394R1

CLAMP

pressure tube

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

384891R1

CLAMP

STRIP, hyd tube clamp

1шт.
