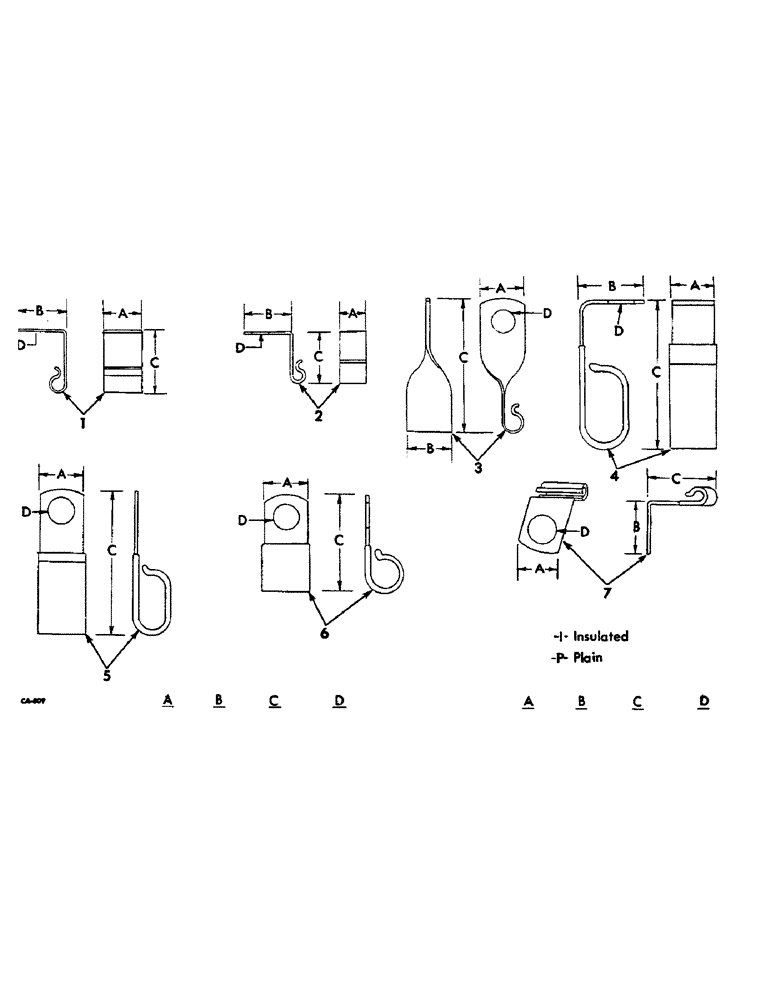

Запчасти Case IH 21026 (08-14) - ELECTRICAL, CLIPS (06) - ELECTRICAL

1

355574R1

CLIP

5/8, 11/16, 61/64, 15/32, -P-

1шт.

1

365584R1

CLIP

5/8, 13/16, 1-1/64, 13/32, -I-

1шт.

1

399657R1

CLIP

3/4, 7/8, 2-1/2, 11/32, -I-

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

1

527434R1

CLIP

3/4, 7/8, 2-9/16, 13/32, -I-

1шт.

1

370383R1

CLIP

3/4, 15/16, 1-3/4, 15/32, -I-

1шт.

1

370821R1

CLIP,ELECTRICAL

3/4, 1-1/8, 1-3/16, 15/32, -I-

1шт.

1

406123R1

CLAMP

3/4, 1-7/8, 2-3/4, 13/32, -I-

1шт.

2

365524R1

CLAMP

7/8, 1-5/16, 15/16, 17/32, -I-

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

SCREW, 1/2-13 x 1/2 hex - hd cap

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

1шт.

2

351669R1

7/8, 1-5/16, 27/32, 17/32, -P-

1шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

3

370205R1

3/4, 3/4, 2-7/8, 13/32, -P-

1шт.

3

370740R1

CLAMP

3/4, 3/4, 3-3/16, 15/32, -P-

1шт.

4

406122R1

3/4, 3/4, 2-7/8, 13/32, -I-

1шт.

5

527433R1

CLIP

3/4, 1-63/64, 13/32, -I-

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex - hd cap

1шт.

5

362666R1

CLIP

3/4, 2-1/2, 15/32, -I-

1шт.

6

366460R1

CABLE CLIP

3/4, 1-1/4, 13/32, -I-

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex - hd cap

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

1шт.

6

61813D

CLIP

3/4, 1-15/64, 27/64, -P-

1шт.

6

384554R1

CLIP

3/4, 1-35/64, 13/32, -I-

1шт.

6

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

3/4, 1-9/16, 13/32, -I-

1шт.

102635

NUT,3/8"-16, G5

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

384557R1

CLIP

3/4, 1-5/8, 9/32, -I-

1шт.

6

670043C1

CLIP

3/4, 1-5/8, 13/32, -I-

1шт.

6

362667R1

CLIP

3/4, 1-61/64, 15/32, -I-

1шт.

6

362123R1

CLIP

3/4, 2-1/8, 15/32, -I-

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

363812R1

3/4 2/1/4, 15/32 -P-

1шт.

6

384559R1

CLIP

3/4, 2-9/16, 13/32, -I-

1шт.

6

388922R1

NO LONGER SERVICED

3/4, 3-3/64, 3/8, -I-

1шт.

6

361774R1

3/4, 3-17/64, 15/32, -P-

1шт.

6

362126R1

CLIP

3/4, 3/5/8, 13/32, -I-

1шт.

6

363117R1

CLIP

1, 1-13/16, 9/32, -I-

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

401275R1

1, 1-13/16, 13/32, -I-

1шт.

6

384558R1

CLIP

1, 1-13/16, 21/32, -I-

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

SCREW, 1/2-13 x 1/2 hex - hd cap

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

1шт.

6

358986R1

CABLE CLIP

1, 1-15/16, 17/32, -I-

1шт.

383622R1

CLIP

1, 1-15/16, 22/32, -I-

1шт.

7

384556R1

CLAMP

3/4, 1, 1-61/64, 15/32, -I-

1шт.
