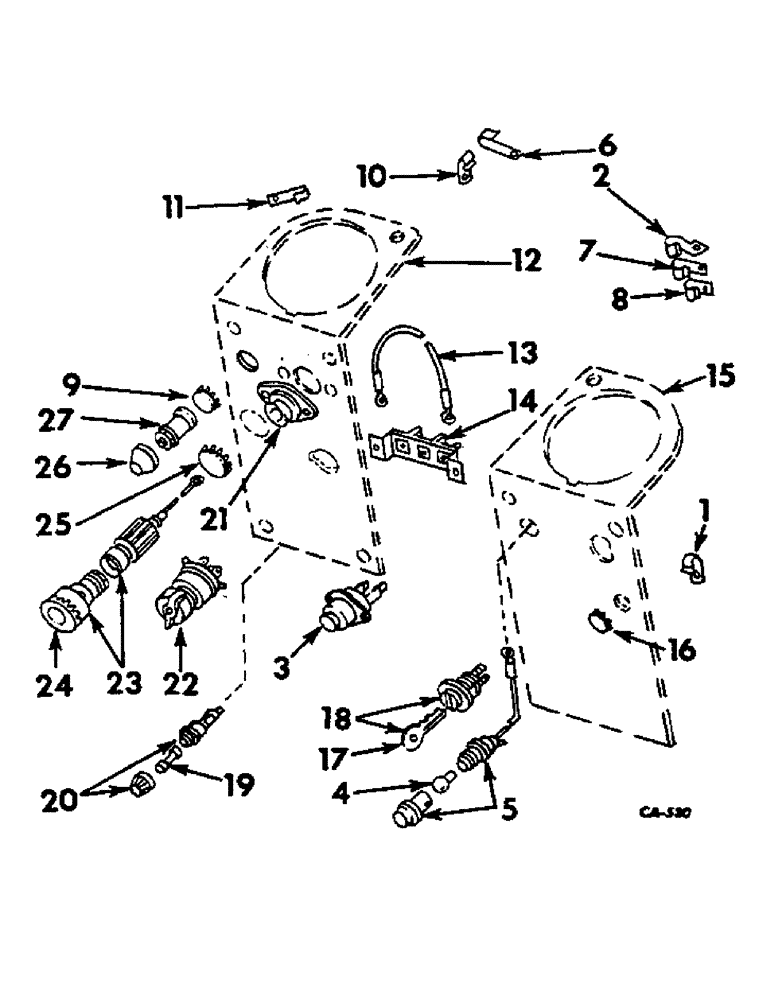

Запчасти Case IH 21026 (08-12) - ELECTRICAL, ENGINE CONTROLS AND SWITCHES (06) - ELECTRICAL

1

366460R1

CABLE CLIP

CLIP, electric air cleaner indicator cable

1шт.

2

370205R1

CLIP, capilliary tube twisted

1шт.

3

397940R93

SWITCH

ether solenoid push button

1шт.

120611

NUT,#10 - 32

10-32 C-Z sq

2шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10-32 x 1/2 C-Z slt-pan-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

4

9417863

BULB,C2F, #1895, 14V

LAMP, no. 257 12 volt, replaces 9412348

1шт.

5

392441R91

LIGHT

ASSY, transmission warning

1шт.

6

406123R1

CLAMP

CLIP, speedometer cable

1шт.

7

355574R1

CLIP

capillary tube

1шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1шт.

8

351699R1

CLIP, capillary tube

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

9

374342R1

PLUG

horn switch

1шт.

10

384558R1

CLIP

tachometer flexible drive shaft short

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

SCREW, 1/2-13 x 1/2 hex-hd cap

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

1шт.

11

370383R1

CLIP

tachometer flexible drive shaft block

1шт.

12

PANEL ASSY, instrument LH, refer to instrument panel and gauges listing, section 11

1шт.

13

405212R1

HARNESS

CABLE ASSY, horn, Serial Range: switch-junction

1шт.

14

378336R91

BLOCK

ASSY, junction

1шт.

109084

NUT,1/4"-20, G5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

PANEL ASSY, instrument RH, refer to instrument panel and gauges listing, section 11

1шт.

16

383621R1

PLUG, shut-off control hole button

1шт.

17

382458R2

KEY

switch

1шт.

18

403562R1

IGNITION SWITCH

SWITCH ASSY, key

1шт.

365502R1

NUT

switch mounting

1шт.

375431R1

LOCK WASHER

switch mounting nut

1шт.

19

432644

FUSE,20 Amp, Type SFE

cartridge type SFE 20

1шт.

20

376852R91

HOUSING

ASSY, fuse

1шт.

21

397940R93

SWITCH

ASSY, push button

1шт.

120611

NUT,#10 - 32

10-32 C-Z sq

2шт.

132903

ADAPTER

SCREW, 10-32 x 7/16 C-Z slt-rd-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

22

403571R2

SWITCH

lighting

1шт.

23

382671R91

CIGAR LIGHTER

CIGARETTE LIGHTER PARTS ACCESSORY

1шт.

24

378781R91

PACKAGE

UNIT, pop-out

1шт.

25

432281

HOLE PLUG BUTTON,29/32"

PLUG, 29/32 button, cigarette lighter hole

1шт.

26

371487R1

CYLINDER END CAP

CAP, horn switch dust

1шт.

27

393209R91

SWITCH

horn-less cap

1шт.
