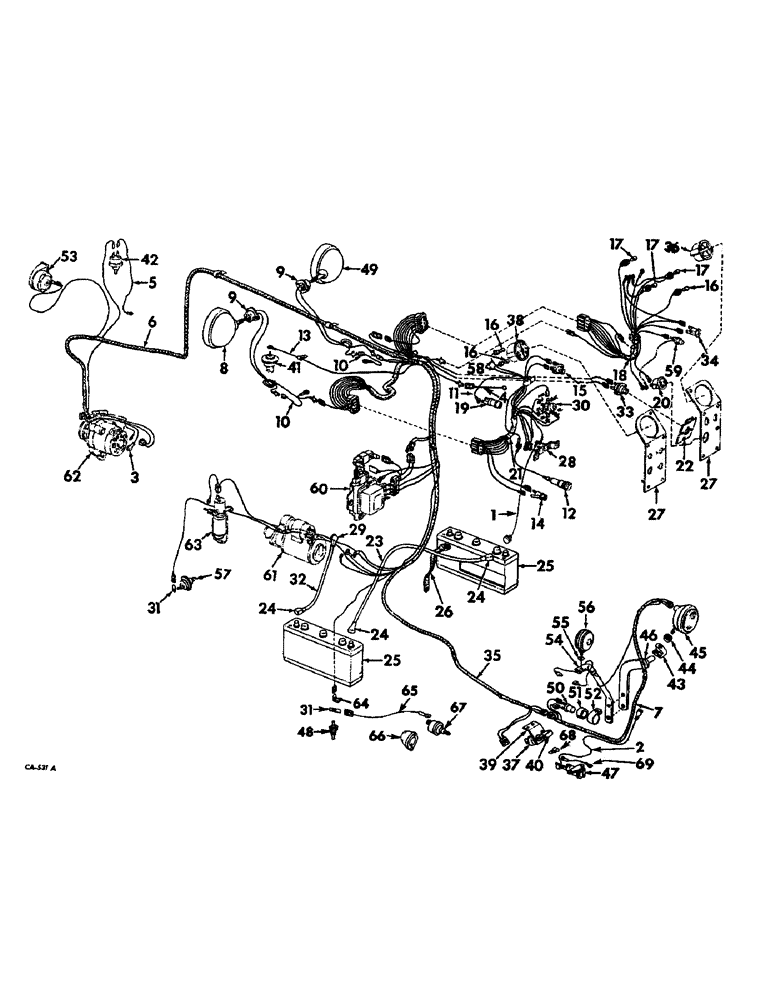

Запчасти Case IH 21026 (08-06) - ELECTRICAL, STARTING AND LIGHTING, FARMALL TRACTORS (06) - ELECTRICAL

405883R91

PARTS ACCESSORY, electric breakaway connector socket, tractors not equipped w/deluxe fenders, consists of ref nos 2, 47, 68, 69 and attaching hardware

1шт.

405884R91

PARTS ACCESSORY, electric breakaway connector socket, tractors equipped w/deluxe fenders, consists of ref nos 2, 47, 69 and attaching hardware

1шт.

1

406127R1

LAMP BASE

LIGHT ASSY, hydrostatic control

1шт.

2

405889R1

CABLE PULLING GRIP

CABLE ASSY, harness junction to breakaway connector socket, tractors w/o deluxe fenders

1шт.

2

405877R1

HARNESS

CABLE ASSY, harness junction to breakaway connector socket, tractors w/deluxe fenders

1шт.

3

399470R1

BOOT

INSULATOR, terminal cover boot, furnished as part of 405279R1

1шт.

4

405221R1

CABLE

ASSY, horn switch to harness junction

1шт.

5

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum, Serial Range: switch-ground

1шт.

6

405279R1

HARNESS

ASSY, main cable front

1шт.

7

405880R1

HARNESS

ASSY, combination and flashing lights

1шт.

8

387728R91

LIGHT

ASSY, sealed beam head, LH, only serviceable item is sealed beam, unit, 371443R91

1шт.

120371

NUT,1/2"-20, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .095 C-Z

1шт.

9

382406R1

SUPPORT

BRACKET, head light mounting

2шт.

113911

SCREW, 5/16-18 x 1/2 slt-f-hd mach

4шт.

10

405209R1

CABLE

ASSY, head light to ground junction

2шт.

11

405212R1

HARNESS

CABLE ASSY, horn switch to junction block

1шт.

12

CIGARETTE LIGHTER, refer to engine controls and switches listing, this section

1шт.

13

404400R1

CABLE

ASSY, fuel gauge sending unit to multiple connector

1шт.

14

HOUSING ASSY, fuse, refer to engine controls and switches listing, this section

1шт.

15

SWITCH ASSY, push button, refer to engine controls and switches listing, this section

1шт.

16

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt, tachometer & gauge cluster

4шт.

17

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12 volt, oil & amp tellite flasher

2шт.

18

405275R2

HARNESS

ASSY, panel cable RH

1шт.

18

405276R1

HARNESS ASSY, panel cable RH, tractors w/o electric fuel gauge

1шт.

19

SWITCH ASSY, horn, refer to engine controls and switches listing, this section

1шт.

20

INDICATOR ASSY, electric air cleaner, refer to instrument panel and gauges listing, section 11

1шт.

21

406121R1

HARNESS ASSY, panel cable LH

1шт.

22

ETHER STARTING PANEL, refer to ether starting listing, section 12

1шт.

23

383617R91

CABLE

ASSY, Serial Range: battery-battery

1шт.

356062R91

BOLT

ASSY, terminal

2шт.

24

383619R1

COVER

battery cable terminal large

3шт.

25

399056R1

BATTERY, prestolite 1419x, 6 volt

2шт.

26

378760R91

CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

27

PANEL ASSY, instrument LH, refer to instrument panel and gauges listing, section 11

1шт.

27

PANEL ASSY, instrument RH, refer to instrument panel and gauges listing, section 11

1шт.

28

BLOCK ASSY, junction, refer to engine controls and switches listing, this section

1шт.

29

364910R1

BOOT

COVER BATTERY TERMINAL SMALL

1шт.

30

SWITCH ASSY, lighting, refer to engine controls and switches listing, this section

1шт.

31

384396R1

SPADE TERMINAL,Male

TERMINAL, oil pressure switch straight

2шт.

32

383726R91

CABLE

ASSY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

33

SWITCH ASSY, ether push button, refer to engine controls and switches listing, this section

1шт.

34

SWITCH ASSY, key, refer to engine controls and switches listing, this section

1шт.

35

405293R2

HARNESS

ASSY, rear main cable

1шт.

399470R1

BOOT

INSUALTOR, terminal cover bolt, on cranking motor, S, terminal

1шт.

36

GAUGE ASSY, cluster, refer to instrument panel and gauges listing, section 11

1шт.

37

382728R91

SWITCH

safety starting, serial no. 9241 & below

1шт.

37

532682R1

SWITCH

ASSY, neutral starting, serial no. 9242 & above

1шт.

38

SPEEDOMETER TACHOMETER ASSY, refer to instrument panel and gauges listing, section 11

1шт.

39

406125R1

BRACKET, safety starting switch

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

40

406126R1

ROD

safety switch, serial no. 9241 & below

1шт.

40

534410R1

ROD, starting switch, serial no. 9242 & above

1шт.

102776H

CLEVIS PIN,1/4" x 11/16"

PIN, CLEVIS, , Rod end 1/4" x 11/16"

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, 1/16 x 1/2 cot.

1шт.

16558R1

WASHER

17/64 x 5/8 x .065

1шт.

41

SENDING UNIT, fuel gauge, refer to fuel tanks, supports and piping listing, section 12

1шт.

42

SWITCH ASSY, electric air cleaner, refer to air cleaner listing, this section

1шт.

43

350920R1

CLAMP

combination rear light

1шт.

44

365503R1

SPACER

combination rear light

1шт.

45

387729R91

LIGHT

ASSY, combination rear & tail, only serviceable items are lamp, 455490 & sealed beam unit, 371461R91

1шт.

102637

NUT,1/2"-13, G5

1шт.

46

397479R11

SUPPORT

BRACE ASSY, rear light bracket

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .060) 3/8"

2шт.

47

362002R92

SOCKET

ASSY, electrical breakaway

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap, 2 used w/deluxe flat top fenders

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

48

530034R2

SWITCH

ASSY, transmission oil temperature

1шт.

49

387728R91

LIGHT

ASSY, sealed beam head, RH, only serviceable item is sealed beam unit, 371443R91

1шт.

120371

NUT,1/2"-20, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .095 C-Z

1шт.

50

394132R91

FLASHER UNIT

FLASHER, safety warning light

1шт.

51

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

52

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

53

ELECTRIC HORN, refer to electric horn listing, this section

1шт.

54

394135R1

BRACE, flashing warning mounting

1шт.

55

394262R1

WASHER

GASKET, flashing warning light

1шт.

56

394129R91

LIGHT

ASSY, flashing safety warning, only serviceable items are lamp, 9417866 and lens, amber 899280R1 or lens, red 899279R1, Dietz

1шт.

120371

NUT,1/2"-20, G5

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

WASHER, 1/2 C-Z ext-tooth lock

1шт.

57

392249R92

SWITCH

engine oil pressure

1шт.

58

383620R91

ELECTRICAL WIRE

SOCKET ASSY, tachometer light

2шт.

59

392441R91

LIGHT

ASSY, transmission warning

1шт.

60

VOLTAGE REGULATOR, refer to voltage regulator listing, this section

1шт.

61

CRANKING MOTOR, refer to cranking motor listing, this section

1шт.

62

ALTERNATOR GENERATOR, refer to alternator generator listing, this section

1шт.

63

SOLENOID, ether starting, refer to ether starting listing, section 12

1шт.

64

365501R1

TERMINAL CONNECTOR

TERMINAL, transmission oil switch angle

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

65

532323R1

CABLE ASSY, temperature switch to pressure switch

1шт.

66

354558R1

SHIELD

low pressure switch

1шт.

67

534599R1

SWITCH

low pressure warning

1шт.

68

395228R1

CABLE CLIP

CLIP, breakaway, connector cable, tractors w/o deluxe fenders

1шт.

69

404395R1

CABLE

ASSY, breakaway connector, Serial Range: socket-ground

1шт.

405218R1

CABLE ASSY, flashing warning light, tractors with protective frame and without breakaway connector

1шт.

403301R1

CABLE ASSY, flasher to light, tractors with protective frame and with breakaway connector

1шт.

405219R1

CABLE

ASSY, platform to rear frame ground, for tractords with isomount bushings

1шт.
