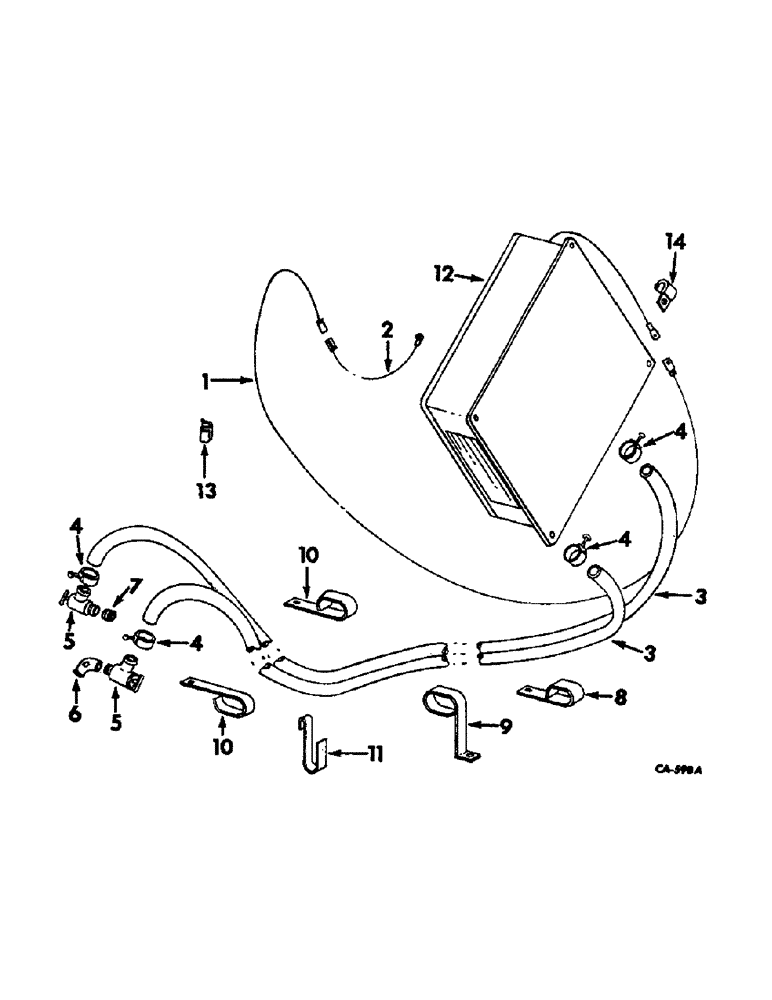

Запчасти Case IH 21026 (13-27) - SUPERSTRUCTURE, TRACTOR CAB HEATER AND CONNECTIONS (05) - SUPERSTRUCTURE

1

529733R1

CABLE ASSY, heater to power switch

1шт.

2

529734R1

CABLE ASSY, heater power from circuit breaker

1шт.

3

HOSE, heater, use 144 in. of 5/8 ID heater hose from a 50 ft. roll marked, 364359C1

2шт.

187954

GROMMET,1" ID x 1 3/4" x .062"

1 x 1-3/4 rubber

2шт.

4

39093H

HOSE CLAMP

CLAMP, heater hose end

4шт.

5

301803R91

VALVE

ASSY, shut-off

2шт.

6

444056

ELBOW

3/8-16 45 deg auto. pipe

1шт.

121207

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE, 3/8 x 1 pipe

1шт.

7

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING, 1/2 x 3/8 reducing pipe

1шт.

8

395467R2

CLIP

heater hose, double

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

394271R1

CLIP

heater hose

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

395467R2

CLIP

heater hose, double

2шт.

11

529741R2

CLIP, heater hose

1шт.

12

391172R91

HEATER ASSY, tractor cab, for components see list of parts under details of tractor cab heater, Fig. 13-26

1шт.

611112R1

SPACER,1/8" Pipe x 13/16"

1/8 x 13/16 std pipe

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

24987R1

SCREW, 1/4-20 x 1-1/2 slt-pan hd mach

4шт.

13

394763R1

CLIP,ELECTRICAL

CLIP, heater cable snap-on

5шт.

14

114213R1

CLIP, heater cable

1шт.
