Запчасти Case IH 21026 (13-26) - SUPERSTRUCTURE, TRACTOR CAB HEATER (05) - SUPERSTRUCTURE

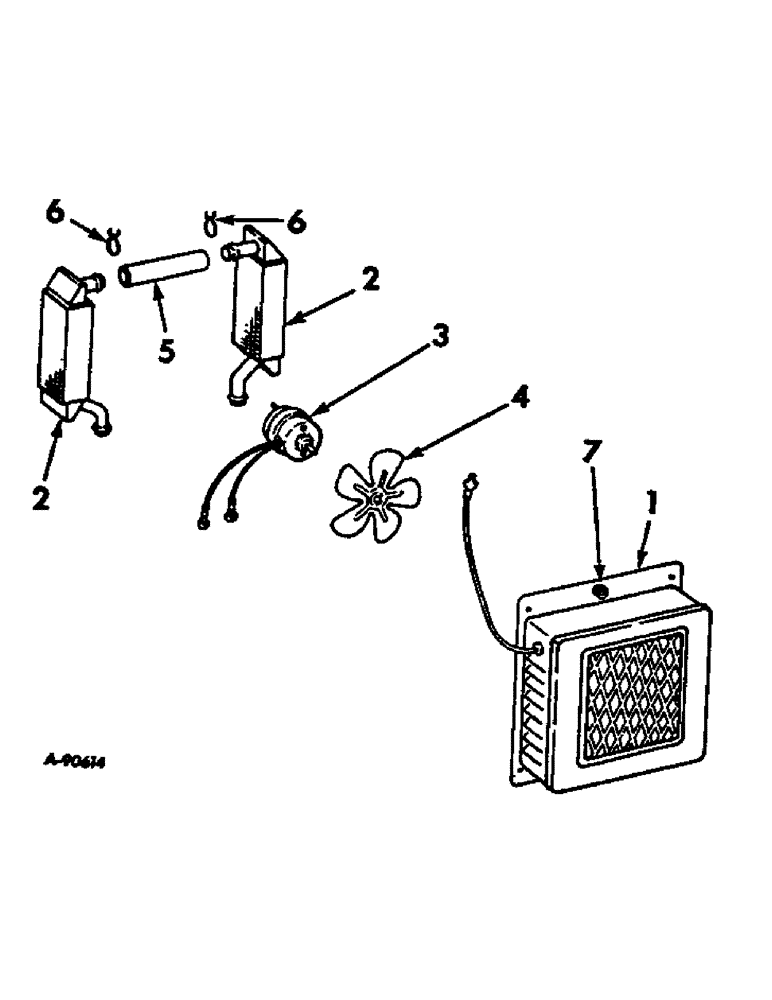

Схема запчастей Case IH 21026 - (13-26) - SUPERSTRUCTURE, TRACTOR CAB HEATER (05) - SUPERSTRUCTURE
2
7
5
6
3
1
4
2
6

Артикул

Название

Примечание

Количество

391172R91

HEATER ASSY

1шт.

1

CASE ASSY, not serviced separately, order 391172R91

1шт.

2

400405R1

CORE

heater

2шт.

3

400406R1

MOTOR

heater fan

1шт.

4

400407R1

FAN

heater

1шт.

5

HOSE, core junction heater, use 7 in. of 3/4 ID heater hose from A 50 ft. roll marked, 364360C1

1шт.

6

626239R1

HOSE CLAMP,#17, 1 1/16", Spring

CLAMP, core heater hose

2шт.

7

400408R1

SWITCH, heater, 3 speed

1шт.

Выбрано товаров: 8
