(13-25) - SUPERSTRUCTURE, WINDSHIELD WIPER MOTOR

Запчасти Case IH 21026 (13-25) - SUPERSTRUCTURE, WINDSHIELD WIPER MOTOR (05) - SUPERSTRUCTURE

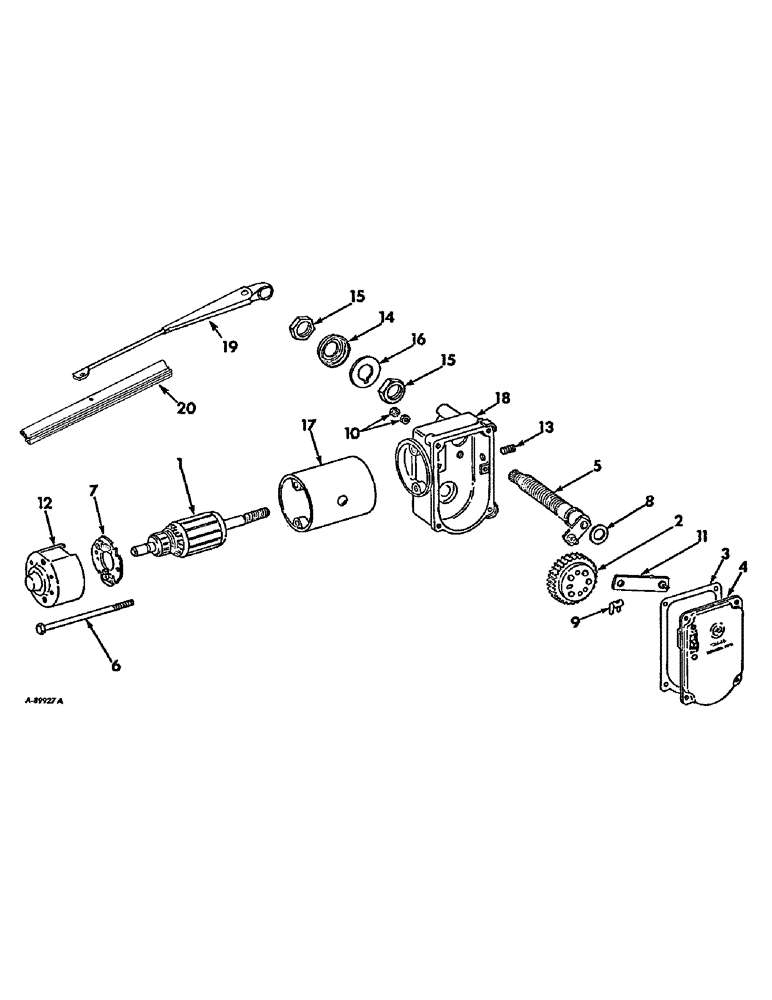

Схема запчастей Case IH 21026 - (13-25) - SUPERSTRUCTURE, WINDSHIELD WIPER MOTOR (05) - SUPERSTRUCTURE
14
15
10
3
17
18
1
20
15
7
12
8
11
19
16
9
4
13
5
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

391195R92

WIPER MOTOR

MOTOR ASSY, windshield wiper

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

436733

BOLT

SCREW, 10-24 x 5/8 znd slt-pan-hd mach

1шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 C-Z int-ext tooth lock

2шт.

1

299455C91

ARMATURE ASSY, Farmall tractors w/serial no. 8965 & below, International tractors w/serial no. 7538 & below

1шт.

1

534758R1

ARMATURE

ASSY, Farmall tractors w/serial no. 8966 & above, International tractors w/serial no. 7539 & above

1шт.

2

299450C91

GEAR

AND DRIVE PLATE ASSY

1шт.

3

299447C1

GASKET

cover

1шт.

4

399482R1

COVER

wiper

1шт.

5

399485R1

SHAFT

ASSY, pivot

1шт.

6

399486R1

SCREW, 8-32 x 3-25/64 hex-hd mach, Farmall tractors w/serial no. 8965 & below, International tractors w/serial no. 7538 & below

1шт.

6

534760R1

SCREW, 8-32 x 3-11/16 hex-hd mach, Farmall tractors w/serial no. 8966 & above, International tractors w/serial no. 7539 & above

2шт.

7

299456C91

BRUSH PLATE ASSY, Farmall tractors w/serial no. 8965 & below, International tractors w/serial no. 7538 & below

1шт.

7

534759R1

WIPER

KIT, brush plate repair, Farmall tractors w/serial no. 8966 & above, International tractors w/serial no. 7539 & above

1шт.

8

219699R1

WASHER

bowed

1шт.

9

85037R1

CLIP

link spring

1шт.

10

178992

NUT

6-40 x 5/16 C-Z hex., terminal screw

2шт.

11

399483R1

LINK

connecting

1шт.

12

399487R1

CAP ASSY, commutator end, Farmall tractors w/serial no. 8965 & below, International tractors w/serial no. 7538 & below

1шт.

12

CAP ASSY, commutator end, not serviced separately, order motor assy, 391195R92, Farmall tractors w/serial no. 8966 & above, International tractors w/serial no. 7539 & above

1шт.

13

399489R1

SCREW,Hdls, 1/4" - 28 x 3/4"

. set-armature end play

1шт.

14

399490R1

SPACER

outer

1шт.

15

299460C1

NUT

mounting stud

2шт.

16

299459C1

GASKET

1шт.

17

Not Serviced Separately, order motor assy, 391195R92

1шт.

18

Not Serviced Separately, order motor assy, 391195R92

1шт.

19

404242R1

ARM

ASSY, wiper

1шт.

20

346909C1

WIPER

BLADE ASSY, wiper

1шт.
