Запчасти Case IH 21026 (13-16) - SUPERSTRUCTURE, TRACTOR CAB AND CONNECTIONS (05) - SUPERSTRUCTURE

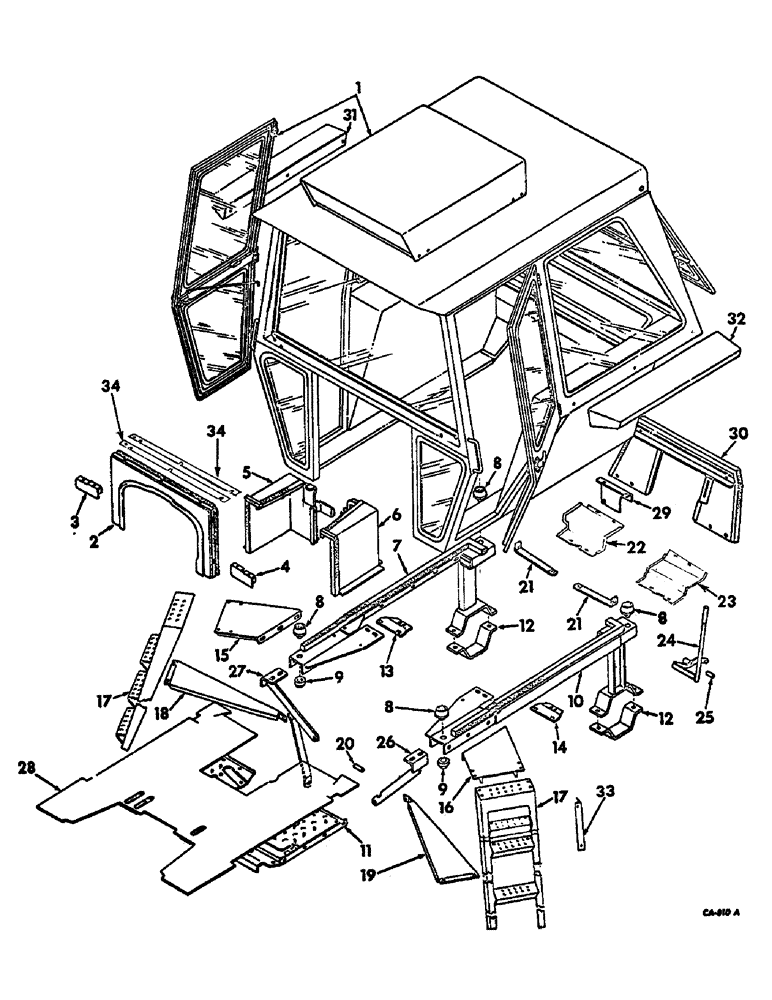

Схема запчастей Case IH 21026 - (13-16) - SUPERSTRUCTURE, TRACTOR CAB AND CONNECTIONS (05) - SUPERSTRUCTURE
26
28
21
1
25
34
20
24
12
11
17
5
13
12
9
19
32
8
8
8
34
7
22
4
27
10
6
30
16
33
8
14
9
18
17
2
31
21
23
29
15
3

Артикул

Название

Примечание

Количество

1

536040R91

PACKAGE, tractor cab w/o upholstery, consists of tractor cab without upholstery, ref nos 2, 8, 9, 34 and attaching hardware, Farmall tractors w/serial no. 8659 & below, International tractors w/serial no. 7520 & below

1шт.

1

536039R91

PACKAGE, tractor cab w/upholstery, consists of tractor cab with upholstery, ref nos 2, 8, 9, 34 and attaching hardware, Farmall tractors w/serial no. 8660 to 9026, International tractors w/serial no., Serial Range: 67521-7540

1шт.

1

529296R93

CAB ASSY, tractor, Farmall tractors w/serial no. 9027 & above, International tractors w/serial no. 7541 & above

1шт.

PO11454A

BOLT

eye

2шт.

2

529289R2

SHROUD, upper cowl

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16-18 x 3/4 znd hex. washer hd lock

4шт.

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

5/16-18 x 1-1/4 znd hex. washer hd lock

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z hex. washer hd lock

7шт.

3

529150R2

ANGLE, front fill RH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

529149R2

ANGLE, front fil LH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 .051 C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

529291R2

COVER, battery RH

1шт.

6

529290R3

COVER, battery LH

1шт.

7

529052R1

MOUNT, right main

1шт.

120377

NUT,3/8" - 16, Gr 5

4 used without isomount bushings 3/8"-16, G5

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, , 4 used with Isomount bushings 3/8"-16, GB

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap, International tractors

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap, 4 used for Farmall tractors without isomount bushings

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap, 4 used for Farmall tractors with isomount bushings

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z, 8 used without isomount bushings, 4 used with isomount bushings

1шт.

536642R1

WASHER

13/32 x 1 x .060, 4 used with isomount bushings

1шт.

8

529147R2

MOUNT, rubber shock

4шт.

9

529148R2

WASHER, rebound

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

8шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 znd hex-hd cap

4шт.

651282R1

WASHER, 11/16 x 1-1/2 x .10 ga CDP

8шт.

10

529051R1

MOUNT, left main

1шт.

120377

NUT,3/8" - 16, Gr 5

4 used without isomount bushings 3/8"-16, G5

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, , 4 used with Isomount bushings 3/8"-16, GB

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap, International tractors

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap, 4 used for Farmall tractors without isomount bushings

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap, 4 used for Farmall tractors with isomount bushings

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z, 8 used without isomount bushings, 4 used with isomount bushings

1шт.

356642R1

WASHER, 13/32 x 1 x .060, 4 used with isomount bushings

1шт.

11

406279R4

PLATFORM, rear frame, Farmall tractors without isomount bushings, International tractors

1шт.

432416

PLUG,5/16"

5/16 C-Z button, 7 for industrial tractors

5шт.

537942R1

PLATE, platform to fender fastening

8шт.

11

537405R1

PLATFORM, rear frame, Farmall tractors with isomount bushings

1шт.

536629R1

BUSHING,10.03mm ID x 19.81mm OD x 18.29mm L

isomount

8шт.

432416

PLUG,5/16"

5/16 C-Z button

5шт.

537942R1

PLATE, platform to fender fastening

8шт.

12

529053R1

CLAMP, axle carrier

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

SCREW, 1/2-13 x 3-3/4 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

13

529134R1

TIE PLATE, right

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

8шт.

14

529054R1

TIE PLATE, left

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

8шт.

15

529135R1

MOUNT, right step

1шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

7шт.

16

529136R1

MOUNT, left step

1шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

7шт.

17

529137R1

STEP, formed

2шт.

18

529139R2

BRACE, right step

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

2шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 znd hex-hd cap

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

19

529138R2

BRACE, left step

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

2шт.

20

364030R1

SPACER

3/4 x 1-1/2 extra strong pipe

1шт.

21

529140R1

BRACE, rear

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

2шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

22245R1

WASHER, 17/32 x 1 x 7 ga C-Z, rear brace spacer, 2 used for Farmall tractors w/isomount bushings

1шт.

22

529142R3

PANEL, right rear

1шт.

120376

NUT,5/16"-18, G5

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

23

529141R2

PANEL, left rear

1шт.

120376

NUT,5/16"-18, G5

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

24

529143R1

LEVER

ASSY, IPTO

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd cap

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25

529144R1

SPACER

BUSHING, IPTO lever

1шт.

26

529145R1

BRACE, left frt

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

375250R1

SCREW,Flg, 5/8" - 11 x 2 1/4"

5/8-11 x 2-1/4 12 pt hd-cap

1шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

27

529146R11

BRACE ASSY, right front

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 znd hex-hd cap, Course Threads

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga C-Z

1шт.

28

529151R2

MAT

floor

1шт.

29

529152R2

PANEL, rear filler

1шт.

30

529153R2

PANEL, lower rear

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051

2шт.

31

529295R1

FENDER ASSY, RH

1шт.

120376

NUT,5/16"-18, G5

3шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

3шт.

120379

WASHER, 5/16 C-Z med lock

3шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

3шт.

32

529294R1

FENDER ASSY, LH

1шт.

120376

NUT,5/16"-18, G5

3шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 3/4 znd hex-hd cap

3шт.

120377

NUT,3/8" - 16, Gr 5

WASHER, 5/16 C-Z med lock

3шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

3шт.

33

533541R1

ANGLE, step LH

2шт.

33

533542R1

ANGLE, step RH

2шт.

34

535745R1

SHIM, upper cowl shroud

2шт.

2751847R1

PRODUCT GRAPHIC

IH emblem

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

385059R1

SCREW,Cross Flat Hd, #10 - 24 x 7/8"

10-24 x 7/8 cr-rec-flt-hd mach

4шт.

533540R91

PARTS ACCESSORY, two piece step, for tractors equipped with cab & front mounted cultivators, consists of (2) angle, LH 533541R1 (2) angle, RH 533542R1, (12) nut 120377, (12) screw 180120, (12) washer 120382

1шт.
