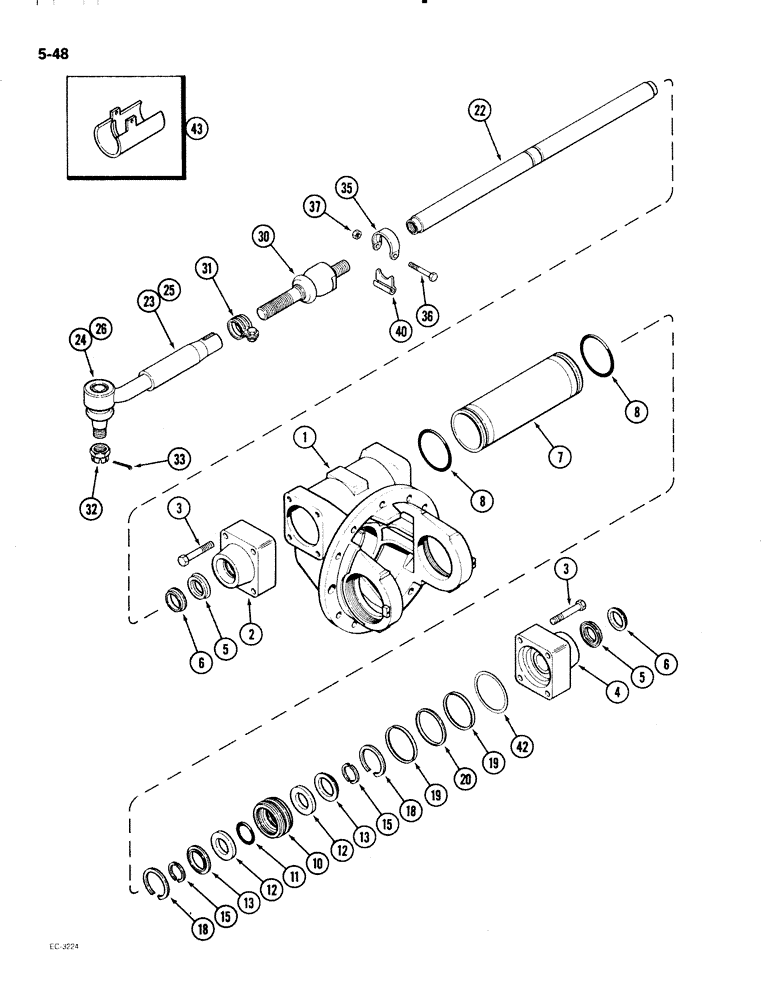

Запчасти Case IH 2096 (5-048) - ZF MFD FRONT AXLES, PRIOR TO P.I.N. 17898102, STEERING CYLINDER AND TIE RODS (05) - STEERING

A169532

AXLE

ASSEMBLY - front, Includes: Ref. 1 - 42 in this figure and parts in Figures 5-042 thru 5-046, 5-050 and 5-052, Serial Range: -17897606

1шт.

1968459C1

AXLE

ASSEMBLY - front, Includes: Ref. 1 - 42 in this figure and parts in Figures 5-042 thru 5-046, 5-050 and 5-052, Serial Range: 17897606-17898102

1шт.

1

A52052

CARRIER

- differential (See Figure 5-044)

1шт.

2

A52153

GUIDE

- rod, cylinder, right

1шт.

3

A52154

BOLT

BOLT hex, 14 mm x 75 mm

8шт.

4

A52184

GUIDE

- rod, cylinder, left

1шт.

5

A52156

RING

- grooved, cylinder

2шт.

6

A52370

SCRAPER RING

RING - scrapper, cylinder

2шт.

7

A52151

CYLINDER BLOCK

CYLINDER - steering

1шт.

8

A52152

O-RING,86 mm ID x 3 mm

- 86 mm ID, cylinder

2шт.

10

A52158

PISTON ASSY.

PISTON - cylinder

1шт.

11

A52159

O-RING,39.2 mm ID x 5.7 mm

- 32.9 x 5.7 mm, piston

1шт.

12

A52160

RING

DISK - cylinder

2шт.

13

A52161

CLIP

- ring

2шт.

15

A52162

RING

- split (2 halves)

2шт.

18

A52163

SNAP RING

RING - retaining, cylinder piston

2шт.

19

A52165

RING

- scraper

2шт.

20

A52164

RING

- sealing, cylinder

1шт.

22

A52157

ROD

- cylinder piston

1шт.

23

A52106

ROD

ASSEMBLY - tie, right, Includes: Ref. 24 and 30 - 33

1шт.

23

A52105

ROD

ASSEMBLY - tie, left, Includes: Ref. 26 and 30 - 33

1шт.

24

A52185

JOINT TURNING

JOINT ASSEMBLY - ball (Right tie rod)

1шт.

26

A52058

JOINT TURNING

JOINT ASSEMBLY - ball (Left tie rod)

1шт.

30

A52166

JOINT TURNING

JOINT ASSEMBLY - axial, tie rod

1шт.

31

A52114

CLAMP

ASSEMBLY - tie rod

1шт.

32

A52079

NUT

- castle, 27 mm

1шт.

33

632-206

COTTER PIN,M5 x 45

PIN - cotter, 5 mm x 45 mm

1шт.

35

A52189

PLATE ASSY.

PLATE - stop

2шт.

36

NLS

NO LONGER SERVICED

BOLT - hex, 8 mm x 60 mm

2шт.

37

A52188

NUT

- hex, 8 mm

2шт.

40

A52186

PLATE ASSY.

PLATE - spacing

2шт.

42

A52167

SHIM,1.0mm Thk

Steering cylinder 1.0mm Thk

1шт.

42

A52168

SHIM,1.1mm Thk

Steering cylinder 1.1mm Thk

1шт.

42

A52169

SHIM,1.2mm Thk

Steering cylinder 1.2mm Thk

1шт.

42

A52170

SHIM,1.3mm Thk

Steering cylinder 1.3mm Thk

1шт.

42

A52171

SHIM,1.4mm Thk

Steering cylinder 1.4mm Thk

1шт.

42

A52172

SHIM,1.5mm Thk

Steering cylinder 1.5mm Thk

1шт.

42

A52173

SHIM,1.6mm Thk

Steering cylinder 1.6mm Thk

1шт.

42

A52174

SHIM,1.7mm Thk

Steering cylinder 1.7mm Thk

1шт.

42

A52175

SHIM,1.8mm Thk

Steering cylinder 1.8mm Thk

1шт.

42

A52176

SHIM,1.05mm Thk

Steering cylinder 1.05mm Thk

1шт.

42

A52177

SHIM,1.15mm Thk

Steering cylinder 1.15mm Thk

1шт.

42

A52178

SHIM,1.25mm Thk

Steering cylinder 1.25mm Thk

1шт.

42

A52179

SHIM,1.35mm Thk

Steering cylinder 1.35mm Thk

1шт.

42

A52180

SHIM,1.45mm Thk

Steering cylinder 1.45mm Thk

1шт.

42

A52181

SHIM,1.55mm Thk

Steering cylinder 1.55mm Thk

1шт.

42

A52182

SHIM,1.65mm Thk

Steering cylinder 1.65mm Thk

1шт.

42

A52183

SHIM,1.75mm Thk

Steering cylinder 1.75mm Thk

1шт.

43

A180279

STOP

- steering

2шт.
