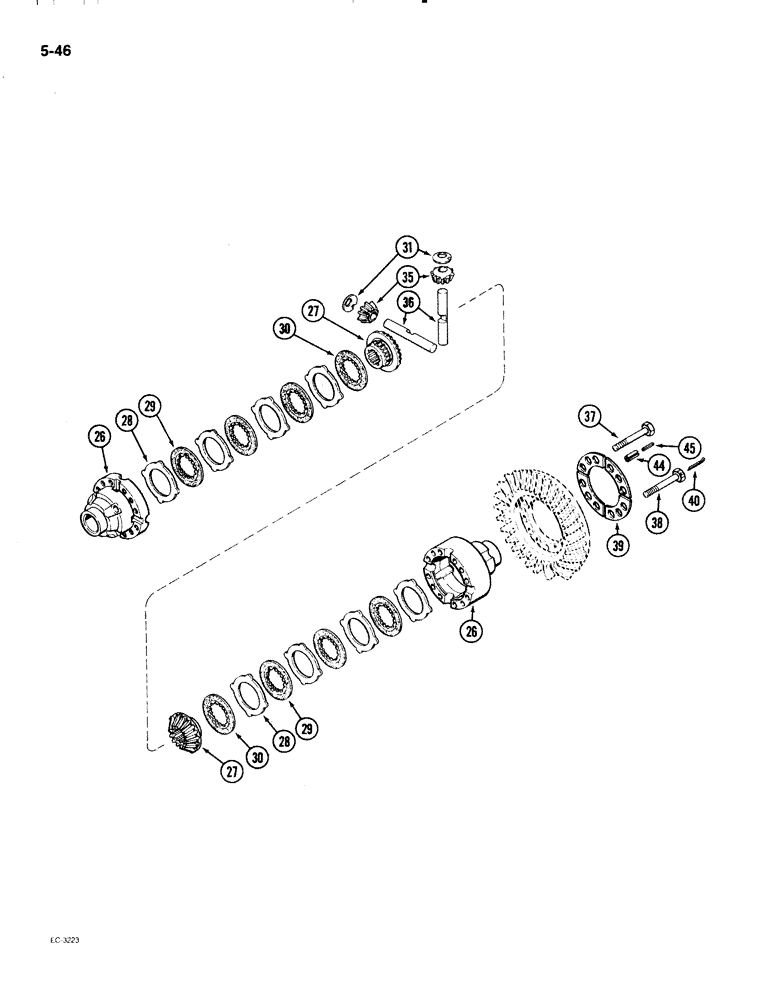

Запчасти Case IH 2096 (5-046) - ZF MFD FRONT AXLES, PRIOR TO P.I.N. 17898102, DIFFERENTIAL (CONTD) (05) - STEERING

A169532

AXLE

ASSEMBLY - front, Includes: differential limited slip disk assembly and Ref. 26 - 45 in this figure and parts in Figures 5-042, 5-044 and 5-048 thru 5-052, Serial Range: -17897606

1шт.

1968459C1

AXLE

ASSEMBLY - front, Includes: differential limited slip disk assembly and Ref. 26 - 45 in this figure and parts in Figures 5-042, 5-044 and 5-048 thru 5-052, Serial Range: 17897606-17898102

1шт.

A52075

SLIP RING

DISK ASSEMBLY - differential limited slip, Includes: Ref. 26 - 45

1шт.

26

A52076

CASE

- differential axle

1шт.

27

A52083

GEAR WHEEL

GEAR - side, differential

2шт.

28

A52388

DISC

DISK - slip, outer (Replaces A52077)

8шт.

29

A52078

DISK HARROW

DISK - slip, inner

6шт.

30

A52080

DISC

DISK - thrust, 3.0 mm

1шт.

30

A52081

DISK HARROW

DISK - thrust, 2.9 mm

1шт.

30

A52082

DISK HARROW

DISK - thrust, 2.8 mm

1шт.

31

A52085

WASHER

- thrust, differential pinion

4шт.

35

A52084

GEAR WHEEL

GEAR - differential pinion

4шт.

36

A52086

SHAFT

- pinion

2шт.

37

A52087

BOLT

BOLT - hex, 12 mm x 90 mm

4шт.

38

A52088

BOLT

BOLT - hex, 12 mm x 90 mm, drilled

8шт.

39

A52089

PLATE ASSY.

PLATE - lock, differential gear

4шт.

40

632-82

COTTER PIN,M2 x 25

PIN - cotter, 2 x 25 mm

4шт.

44

A52090

AXLE PIN

PIN - roll, 12 x 28 mm

4шт.

45

A52092

AXLE PIN

PIN - roll, 7 x 30 mm

4шт.
