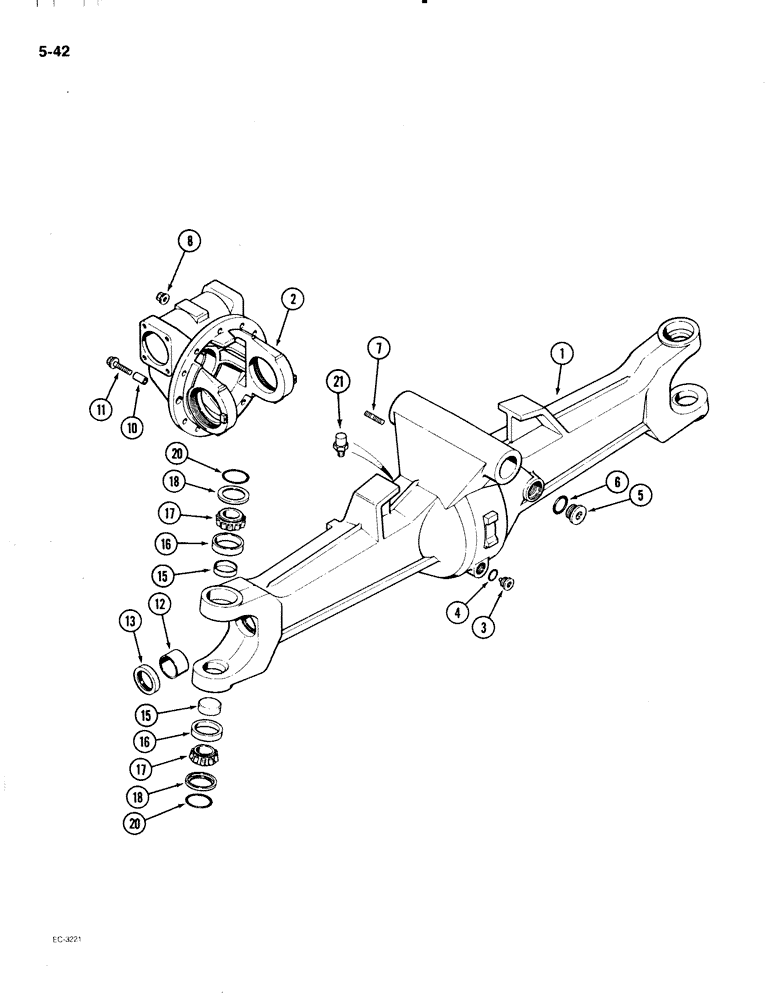

Запчасти Case IH 2096 (5-042) - ZF MFD FRONT AXLES, PRIOR TO P.I.N. 17898102, AXLE HOUSING AND DIFFERENTIAL CARRIER (05) - STEERING

A169532

AXLE

ASSEMBLY - front, Includes: Ref. 1 - 21 in this figure and parts in Figures 5-044 thru 5-052, Serial Range: -17897606

1шт.

1968459C1

AXLE

ASSEMBLY - front, Includes: Ref. 1 - 21 in this figure and parts in Figures 5-044 thru 5-052, Serial Range: 17897606-17898102

1шт.

1

A52093

HOUSING

- axle

1шт.

2

A52052

CARRIER

- differential (See Figure 5-044)

1шт.

3

A48804

PLUG

- hex socket, 24 mm thread

1шт.

4

A52097

O-RING,2mm Thk x 21mm ID

- plug

1шт.

5

A48791

PLUG

- hex socket, 42 mm thread

1шт.

6

A52096

O-RING,2.5mm Thk x 38mm ID

- plug

1шт.

7

A52101

STUD

- 14 mm x 55 mm, differential housing

2шт.

7

A52100

STUD

- 14 mm x 58 mm, differential housing

3шт.

8

A52103

NUT

- hex, 14 mm

5шт.

10

A52099

SLEEVE CYLINDER

SLEEVE - differential housing

1шт.

11

A52095

FLANGE BOLT

BOLT - hex flange, 14 mm x 55 mm

1шт.

11

A52094

FLANGE BOLT

BOLT - hex flange, metric

6шт.

12

A52104

BUSHING

SLEEVE - bearing (Short) (Used with axle A169532)

2шт.

12

1968315C1

BUSHING

SLEEVE - bearing (Short) (Used with axle 1968459C1)

2шт.

13

A52102

SEAL

- U-joint (Used with axle A169532)

2шт.

13

1968314C1

SEAL

- U-joint (Used with axle 1968459C1)

2шт.

15

A52109

CAP COVER

CAP - sealing, steering pivot

4шт.

NSS

NOT SOLD SEPARAT

BEARING - roller, steering pivot, Includes: Ref. 16 and 17

4шт.

16

131312C1

BEARING CUP

CUP - bearing

1шт.

17

871244R1

ROLLER BEARING

CONE - bearing

1шт.

18

A52112

SEAL

CAP - sealing, steering pivot

4шт.

20

A52113

O-RING,57 mm ID

- steering pivot

4шт.

21

A48855

VALVE

- breather (Used with axle 1968459C1)

1шт.
