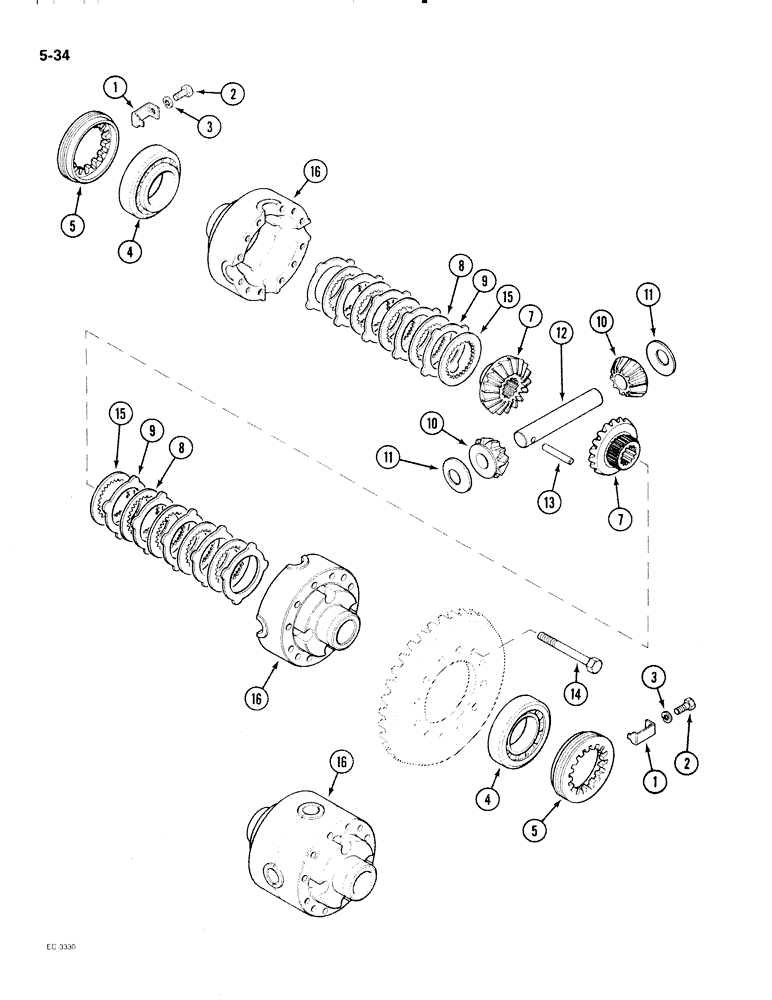

Запчасти Case IH 2096 (5-034) - CARRARO MFD FRONT AXLE, P.I.N. 17898102 AND AFTER, DIFFERENTIAL (05) - STEERING

1975363C1

AXLE

ASSEMBLY - front, Includes: Ref. 1 - 16 in this figure and parts in Figures 5-030 and 5-032 and 5-036 thru 5-040

1шт.

1

K261869

LOCK

BRACKET - differential

2шт.

2

K261871

SCREW

BOLT - hex, 6 mm x 12 mm

2шт.

3

K261870

WASHER

- differential bracket bolt

2шт.

4

K965339

BEARING

- tapered roller

2шт.

5

D142973

RING

- lock, threaded

2шт.

7

NSS

NOT SOLD SEPARAT

GEAR - sun

2шт.

8

NSS

NOT SOLD SEPARAT

DISK - slip, inner

8шт.

9

NSS

NOT SOLD SEPARAT

DISK - slip, outer

10шт.

10

D142969

SUN GEAR

GEAR - pinion

2шт.

11

D142968

WASHER

- thrust, pinion gear

2шт.

12

NSS

NOT SOLD SEPARAT

SHAFT - pinion

1шт.

13

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.

14

D142889

BOLT

- hex, 12 mm x 40 mm

10шт.

15

NSS

NOT SOLD SEPARAT

DISK - thrust

2шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - differential

1шт.
