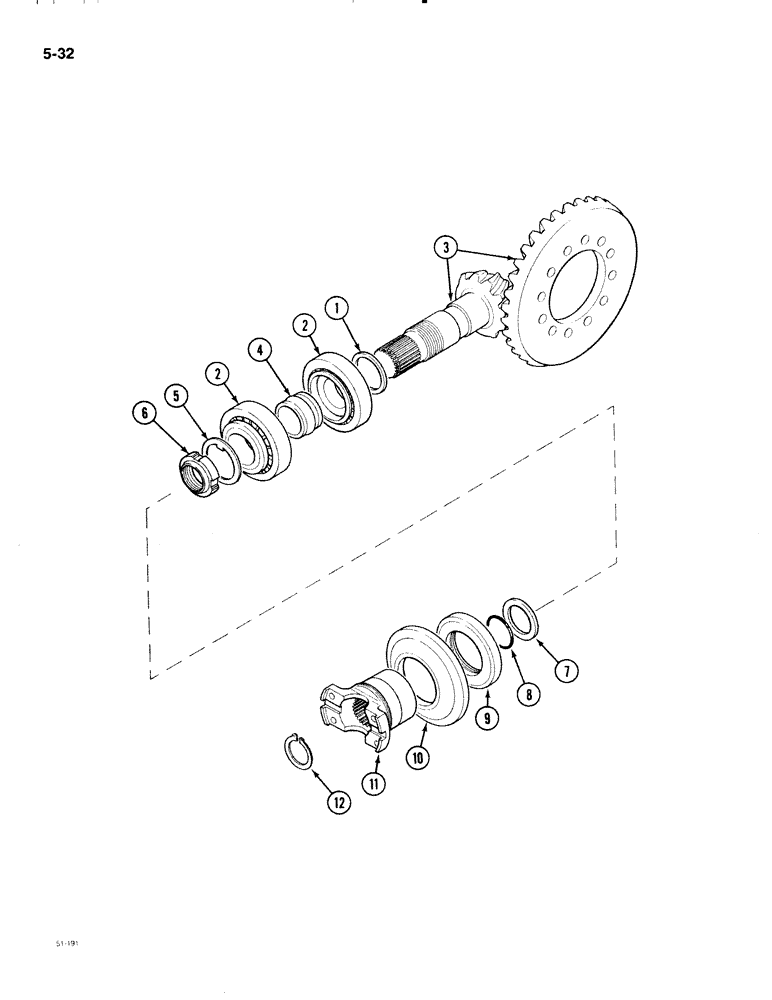

Запчасти Case IH 2096 (5-032) - CARRARO MFD FRONT AXLE, P.I.N. 17898102 AND AFTER, BEVEL GEAR PINION SET (05) - STEERING

1975363C1

AXLE

ASSEMBLY - front, Includes: Ref. 1 - 12 in this figure and parts in Figures 5-030 and 5-034 thru 5-040

1шт.

1

D142953

SHIM,2.50mm Thk

1шт.

1

D142954

BLOCK

SHIM - 2.60 mm

1шт.

1

D142955

SHIM,2.70mm Thk

1шт.

1

D142956

SHIM,2.80mm Thk

1шт.

1

D142957

SHIM,2.90mm Thk

1шт.

1

D142958

SHIM,3.00mm Thk

1шт.

1

D142959

SHIM,3.10mm Thk

1шт.

1

D142960

BLOCK

SHIM - 3.20 mm

1шт.

1

D142961

SHIM,3.30mm Thk

1шт.

1

D142962

SHIM,3.40mm Thk

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING - pinion shaft

2шт.

3

NSS

NOT SOLD SEPARAT

GEAR - bevel, matched set, 12/44 teeth, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

SPACER - collapsible

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - bevel set

1шт.

6

D143000

NUT

RING - nut, pinion gear

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - pinion shaft

1шт.

8

128376A1

O-RING

- pinion shaft sealing

1шт.

9

81873C1

OIL SEAL

- oil, pinion shaft

1шт.

10

81874C1

COVER

- pinion shaft

1шт.

11

222178A1

FLANGE

- pinion shaft

1шт.

12

800-1134

SNAP RING,M34, Ext

RING, SNAP, , Retaining, Pinion shaft M34, Ext

1шт.
