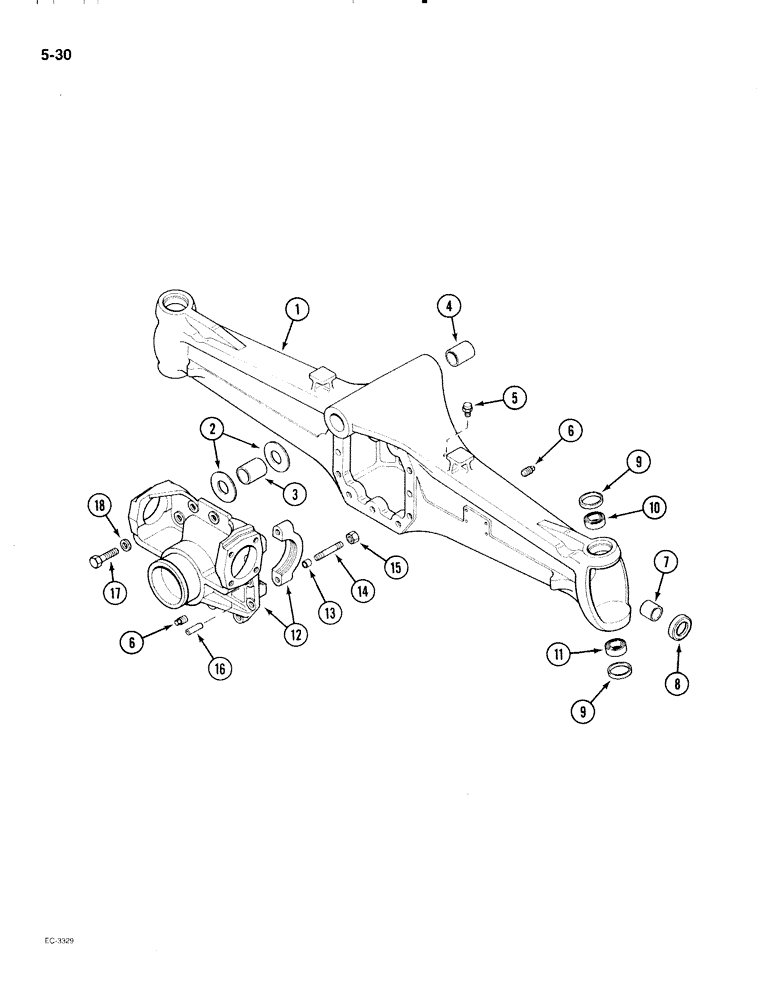

Запчасти Case IH 2096 (5-030) - CARRARO MFD FRONT AXLE, P.I.N. 17898102 AND AFTER, AXLE HOUSING AND DIFFERENTIAL SUPPORT (05) - STEERING

1975363C1

AXLE

ASSEMBLY - front, Includes: Ref. 1 - 18 in this figure and parts in Figures 5-032 thru 5-040

1шт.

1

NSS

NOT SOLD SEPARAT

AXLE - front

1шт.

2

N14367

SEALING RING,50mm ID x 60.1mm OD x 4mm Thk

- pivot pin bushing

2шт.

3

N14368

BUSHING,50.14mm ID x 66.68mm OD x 75mm L

- pivot pin

1шт.

4

N14369

BUSHING,50.23mm ID x 66.68mm OD x 40mm L

- pivot pin, front

1шт.

5

K965231

BREATHER

- front axle housing

1шт.

6

1966145C1

PLUG

- drain

2шт.

7

D142950

BUSHING

- half shaft

2шт.

8

N8897

OIL SEAL

SEAL - oil, half shaft

2шт.

9

1985789C1

OIL SEAL

- oil, steering knuckle

4шт.

10

D142886

NYLON BEARING

BUSHING - steering knuckle

2шт.

11

D142888

SPHERICAL BEARING

BEARING - steering knuckle

2шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - differential support, Includes: Ref. 13 - 15

1шт.

13

K260153

RING

BUSHING - differential support housing

4шт.

14

D143001

STUD

- differential support housing

4шт.

15

K260157

NUT

- differential support housing

4шт.

16

D142890

DOWEL

PIN - dowel

2шт.

17

81856C1

BOLT

- support housing mounting

10шт.

18

K395021

WASHER

- housing mounting bolt

10шт.
