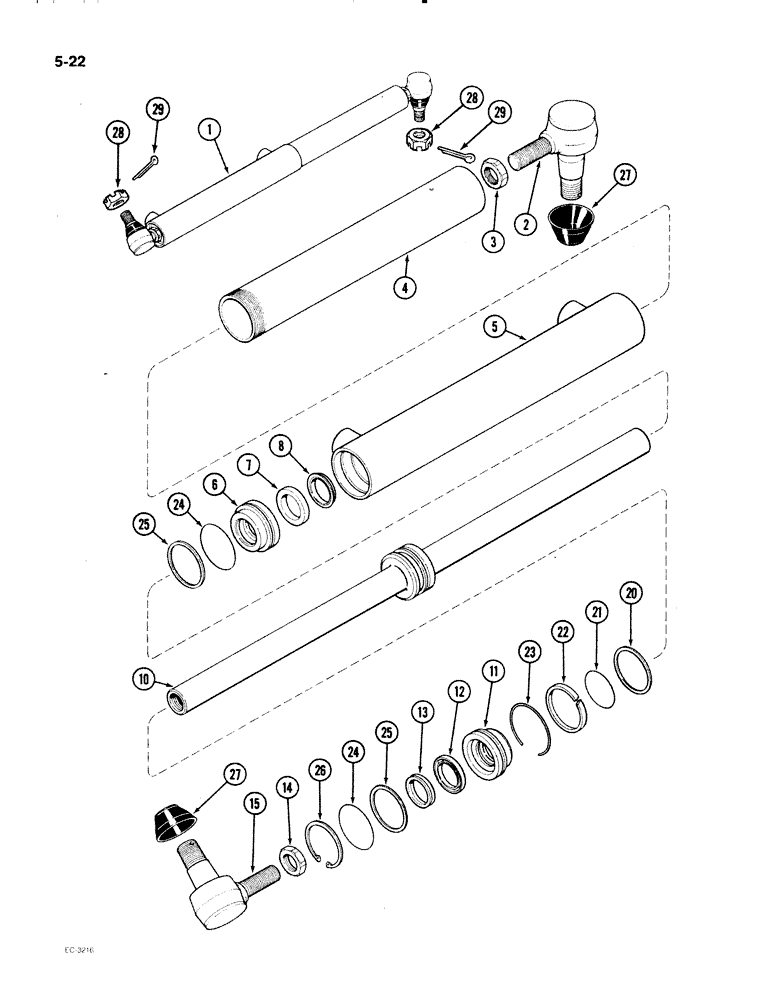

Запчасти Case IH 2096 (5-022) - STEERING CYLINDER, TWO WHEEL DRIVE TRACTORS (05) - STEERING

1

G102894

CYLINDER

CLINDER ASSEMBLY - steering, Includes: Ref. 2 - 26

1шт.

2

L59042

BALL JOINT

JOINT - ball, stationery

1шт.

3

A31094

JAM NUT

- hex, jam, 7/8 inch NF

1шт.

4

G101395

TUBE,2.38" OD x 14.31" L

- cylinder

1шт.

5

G101800

TUBE,2.321" ID x 2.388" OD x 17.1" L

- cylinder (With ports)

1шт.

6

G101400

GLAND

- tube

1шт.

7

G101401

SEAT

SEAL - rod

1шт.

Part of Cylinder Repair Service Kit, P/N G101805

1шт.

8

D95141

WIPER SEAL

SEAL - wiper, piston rod

1шт.

Part of Cylinder Repair Service Kit, P/N G101805

1шт.

G102895

ROD

ASSEMBLY - piston, Includes: Ref. 10 - 15

1шт.

10

G102272

ROD

- cylinder (Includes piston)

1шт.

11

G101400

GLAND

- tube

1шт.

12

G101401

SEAT

SEAL - rod

1шт.

13

D95141

WIPER SEAL

SEAL - wiper, piston rod

1шт.

14

G107167

NUT

- special, hex jam, 7/8 inch NF

1шт.

15

L59042

BALL JOINT

JOINT - ball, piston rod

1шт.

20

A61430

SEALING RING

RING - piston

1шт.

Part of Cylinder Repair Service Kit, P/N G101805

1шт.

21

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- 1-11/16 x 1-7/8 x 3/32 inch

1шт.

Part of Cylinder Repair Service Kit, P/N G101805

1шт.

22

G101837

RING

- wear, piston

1шт.

Part of Cylinder Repair Service Kit, P/N G101805

1шт.

23

G101804

RING

- gland retaining

1шт.

24

G102152

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

- 2-3/64 ID x 7/64 inch

2шт.

Part of Cylinder Repair Service Kit, P/N G101805

1шт.

25

G101803

RING

- back-up

2шт.

Part of Cylinder Repair Service Kit, P/N G101805

1шт.

26

T16276

SNAP RING,2.25", Int, #225

Ring, Snap, , gland 2.25", Int, #225

1шт.

27

D72832

COVER

BOOT - dust

2шт.

28

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex, slotted, 7/8 inch NF

2шт.

29

132-337

COTTER PIN,1/8" x 1 3/4"

1/8" x 1 3/4"

2шт.

G101805

KIT

- service, cylinder repair, Includes: Ref. 7, 8, 20, 21, 22, 24 and 25

1шт.
