Запчасти Case IH 2096 (5-020) - HYDROSTATIC STEERING PUMP, TRW, MFD TRACTORS (05) - STEERING

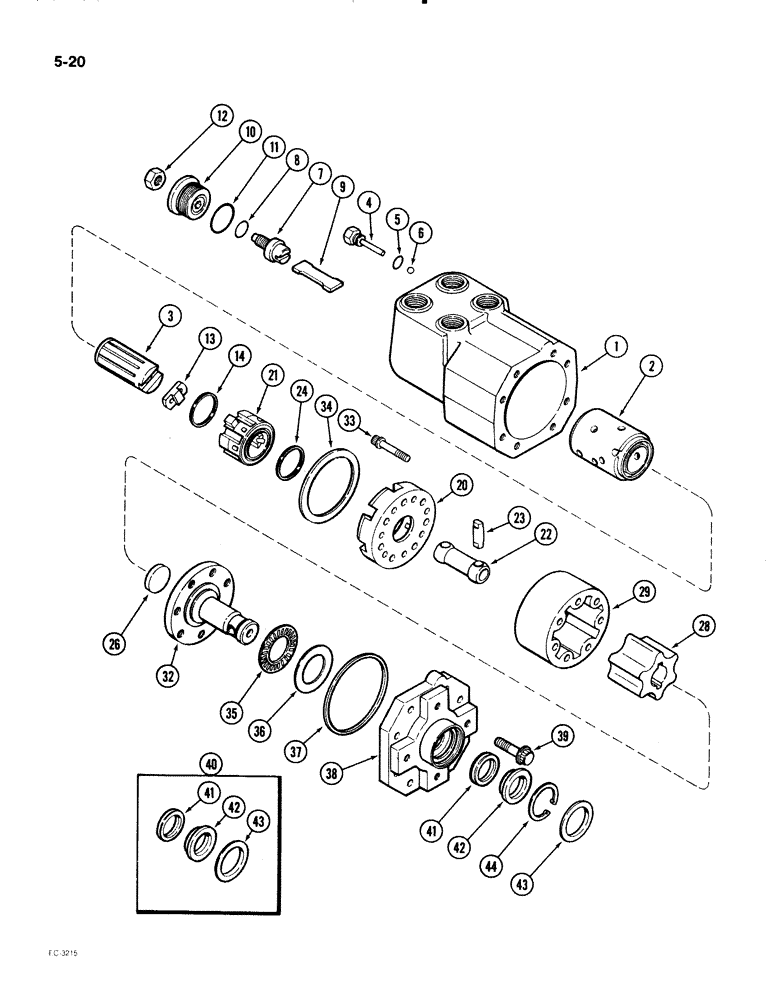

Схема запчастей Case IH 2096 - (5-020) - HYDROSTATIC STEERING PUMP, TRW, MFD TRACTORS (05) - STEERING
5
20
40
42
1
28
29
38
10
34
44
41
21
23
39
3
37
9
26
36
8
33
32
35
24
13
42
11
4
43
43
14
12
6
2
41
22
7

Артикул

Название

Примечание

Количество

A162639

PUMP

ASSEMBLY - steering (Replaced by 1978332C1), Includes: Ref. 1 - 44

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - housing (Order A162639)

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - valve (Order A162639)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A162639)

1шт.

4

A47019

PLUG

PIN - guide, Includes: Ref. 5

1шт.

5

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, 3/16 inch O.D. tube

1шт.

6

211-207

BALL

- 9/32 inch, grade 25, chrome alloy steel

1шт.

7

A45194

ADJUSTMENT SCREW

SCREW ASSEMBLY - adjusting, Includes: Ref. 8

1шт.

8

A45195

O-RING,0.556" ID x 0.073"

- adjusting screw

1шт.

9

A45196

FAN

BLADE - torsion

2шт.

10

A47006

PLUG

ASSEMBLY - adjusting screw, Includes: Ref. 11

1шт.

11

A47005

O-RING,1.053" ID

- adjusting screw plug

1шт.

12

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, jam, 3/8 inch NF

1шт.

13

A47668

RING

- drive

1шт.

41

A47421

SEALING RING

RING ASSEMBLY - seal

1шт.

A47419

MANIFOLD

ASSEMBLY - pump, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

MANIFOLD - pump (Order A47419)

1шт.

21

NSS

NOT SOLD SEPARAT

COMMUTATOR - pump (Order A47419)

1шт.

22

A48140

LINK

- drive

1шт.

23

F19636

PIN

- lock

2шт.

24

A47421

SEALING RING

RING ASSEMBLY - seal

1шт.

26

A48141

SPACER

- rotor

1шт.

A48139

FRAME

SET - pump, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

ROTOR - pump (Order A48139)

1шт.

29

NSS

NOT SOLD SEPARAT

STATOR - pump (Order A48139)

1шт.

32

A48138

SHAFT

- input

1шт.

33

A48132

SCREW,1/4" x 1 5/8"

- cap, manifold, stator and shaft

7шт.

34

A160850

WASHER

- manifold

1шт.

35

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

BEARING - needle, thrust

1шт.

A48143

WASHER

KIT, thrust washers, Includes: Ref. 36

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.047 inch (Order A48143)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.053 inch (Order A48143)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.059 inch (Order A48143)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.065 inch (Order A48143)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.071 inch (Order A48143)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.077 inch (Order A48143)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.083 inch (Order A48143)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.089 inch (Order A48143)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.095 inch (Order A48143)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.101 inch (Order A48143)

1шт.

37

A47004

RING

- seal, upper cover

1шт.

38

A47016

COVER

- upper, pump

1шт.

39

A48131

SCREW,1/4" x 1"

- cap, upper cover

8шт.

40

A47038

SEAL KIT,Pump Shaft

KIT - seal, Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

SEAL - shaft (Order A47038)

1шт.

42

NSS

NOT SOLD SEPARAT

SEAL - spacer (Order A47038)

1шт.

43

NSS

NOT SOLD SEPARAT

SEAL - shaft (Order A47038)

1шт.

44

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

Выбрано товаров: 48
