(5-006) - STEERING COLUMN ASSEMBLY

Запчасти Case IH 2096 (5-006) - STEERING COLUMN ASSEMBLY (05) - STEERING

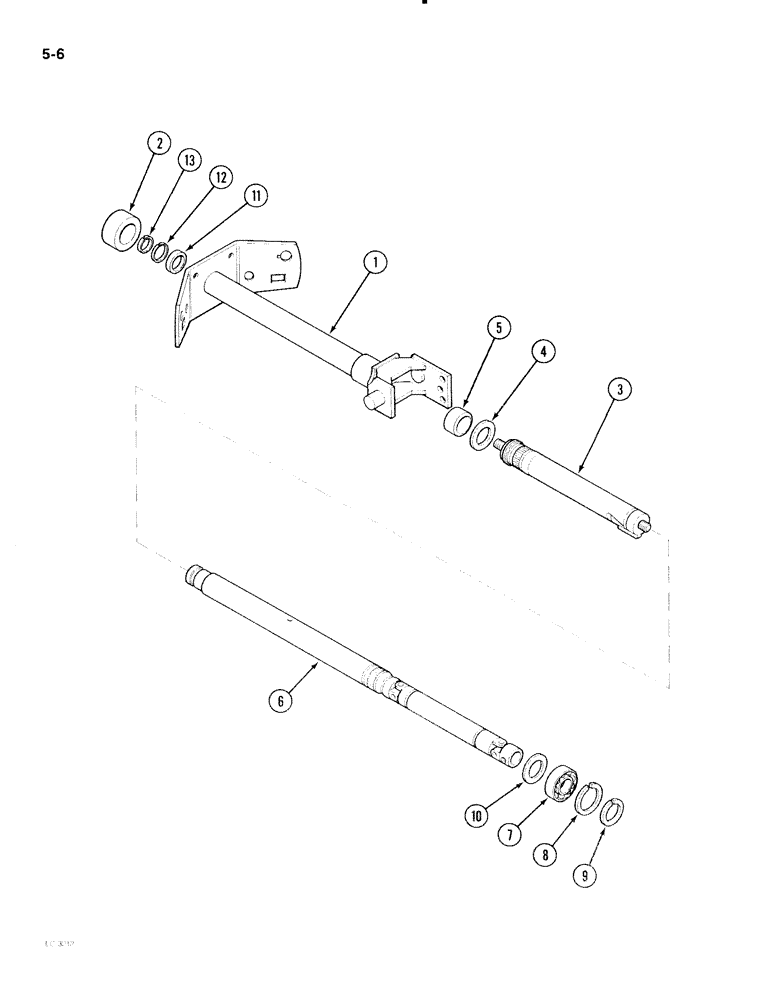

Схема запчастей Case IH 2096 - (5-006) - STEERING COLUMN ASSEMBLY (05) - STEERING
12
9
5
11
8
10
1
7
3
6
4
2
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A169342

STEERING COLUMN

COLUMN ASSEMBLY - steering, Includes: Ref. 1 - 13

1шт.

See service bulletin NTR SB003 94 which describes steering column recall and modification program, This bulletin lists snap ring part numbers. See kit B92962

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - column, complete with bracket

1шт.

2

A49647

CAP

COVER - column, top

1шт.

3

A49650

SPACER

SHAFT - upper, steering column

1шт.

4

A49645

WASHER

- flat

1шт.

5

A49649

SPACER

BAND - retaining

1шт.

6

A49651

SHAFT

- lower, steering column

1шт.

7

A49706

BEARING ASSY

BEARING - ball

1шт.

8

NSS

NOT SOLD SEPARAT

RING - stop, bearing

1шт.

9

NSS

NOT SOLD SEPARAT

RING - retaining, bearing

1шт.

10

A49707

WASHER

- spacer

1шт.

11

NSS

NOT SOLD SEPARAT

SPACER - shaft

1шт.

12

NSS

NOT SOLD SEPARAT

RING - lock

2шт.

13

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.
