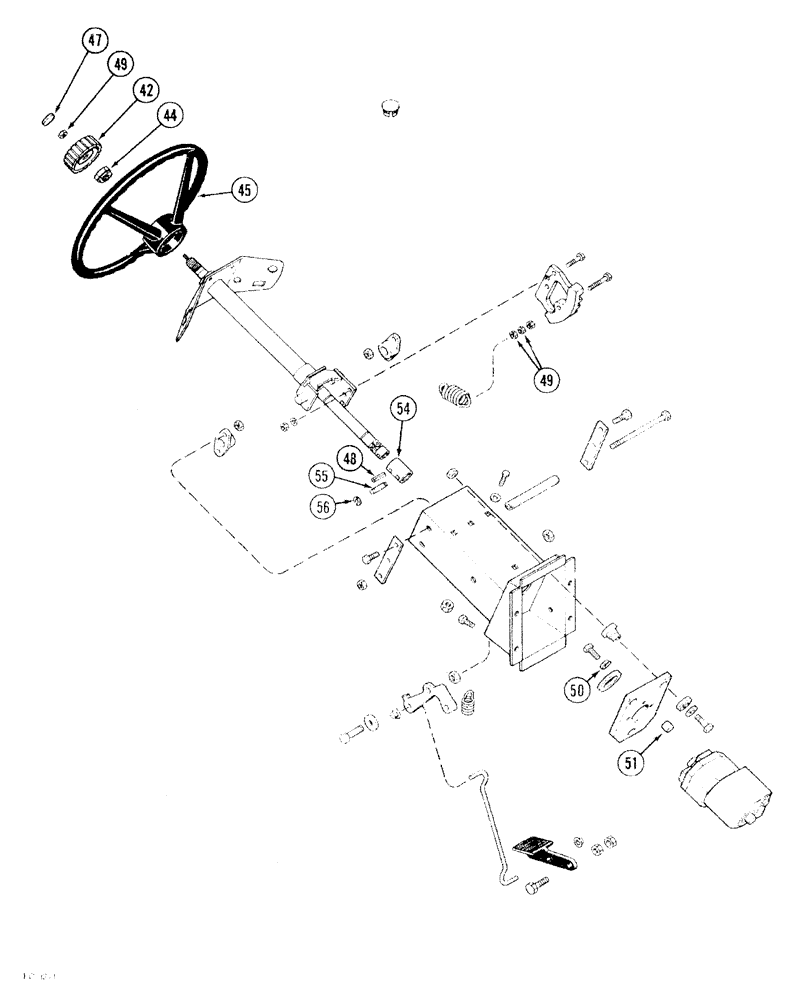

Запчасти Case IH 2096 (5-004) - STEERING WHEEL AND COLUMN (CONTD) (05) - STEERING

42

A141827

CAP

KNOB lock, steering wheel, (continued from Fig. 5-002)

1шт.

44

F19646

LOCK NUT,13/16"-20, Thin

NUT hex, wheel to shaft

1шт.

45

A65544

STEERING WHEEL

(Replaces A167953)

1шт.

47

A180055

CAP ASSY.

INSERT steering wheel

1шт.

48

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

1шт.

49

425-146

JAM NUT,3/8" - 16, Gr 5

hex, jam, 3/8 inch NC

3шт.

50

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , use with Eaton pump 5/16"

4шт.

50

492-11038

LOCK WASHER,3/8"

use with Danfoss pump 3/8"

4шт.

51

A187198

WASHER

SPACER steering, use with Eaton pump

1шт.

51

1343601C1

SPACER

steering, use with Danfoss pump

1шт.

54

A147291

COUPLING

steering pump shaft

1шт.

55

A64000

PIN,9.42mm OD x 38.1mm L

coupling to pump shaft

1шт.

56

A164905

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

2шт.
