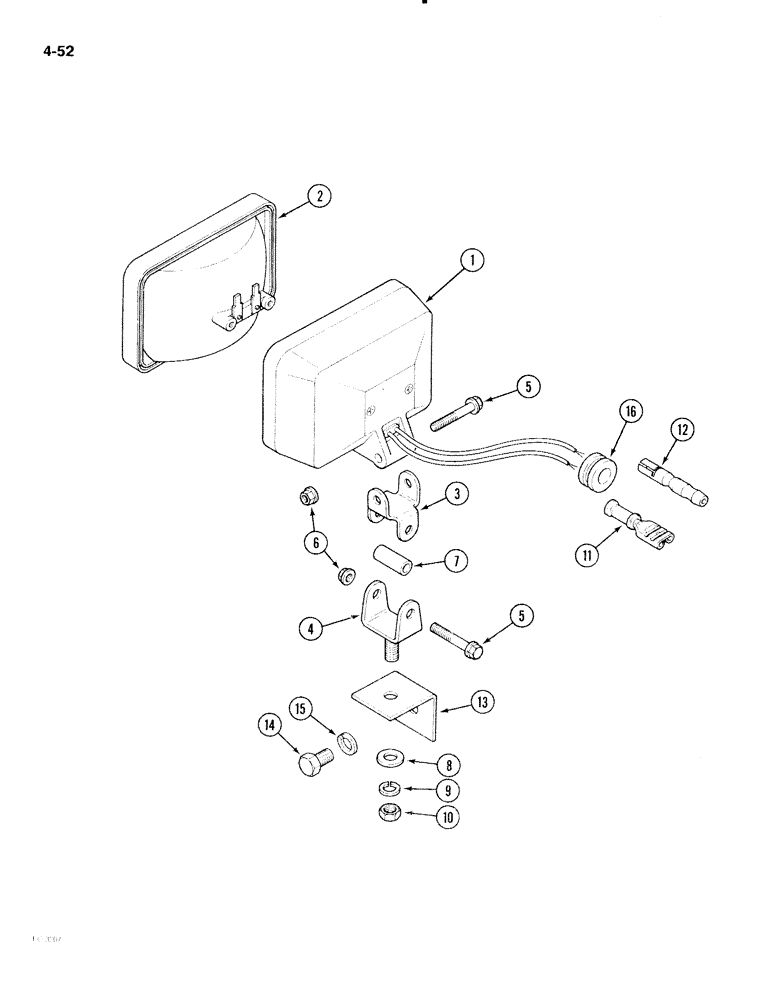

Запчасти Case IH 2096 (4-052) - FLOOD LAMP ATTACHMENT, UPPER FRONT, UPPER REAR AND FENDER MOUNTED (04) - ELECTRICAL SYSTEMS

A166652

LAMP

KIT - flood lamp, Includes: lamp kit and Ref. 1 - 15

1шт.

A177347

LAMP

KIT - lamp, Includes: Ref. 1 - 12

1шт.

1

A52214

LAMP

- flood, Includes: Ref. 2

1шт.

2

A48265

LAMP

- sealed halogen unit

1шт.

3

A52215

SUPPORT

BRACKET - mounting, universal

1шт.

4

A52216

SUPPORT

BRACKET - mounting, lamp, includes stud

1шт.

5

A52217

BOLT

- hex flange, 5/16 NC x 2 inch

2шт.

6

A52218

NUT

- hex flange, 5/16 inch NC

2шт.

7

A52219

SPACER

- bracket

1шт.

8

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

10

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

11

A177332

SPADE TERMINAL,Female

TERMINAL - blade Female

2шт.

12

A52220

TERMINAL CONNECTOR,Male

TERMINAL - bullet Male

2шт.

13

A166585

BRACKET

- mounting, flood lamp

1шт.

14

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

16

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- fender (Rear flood lamp cables)

2шт.
