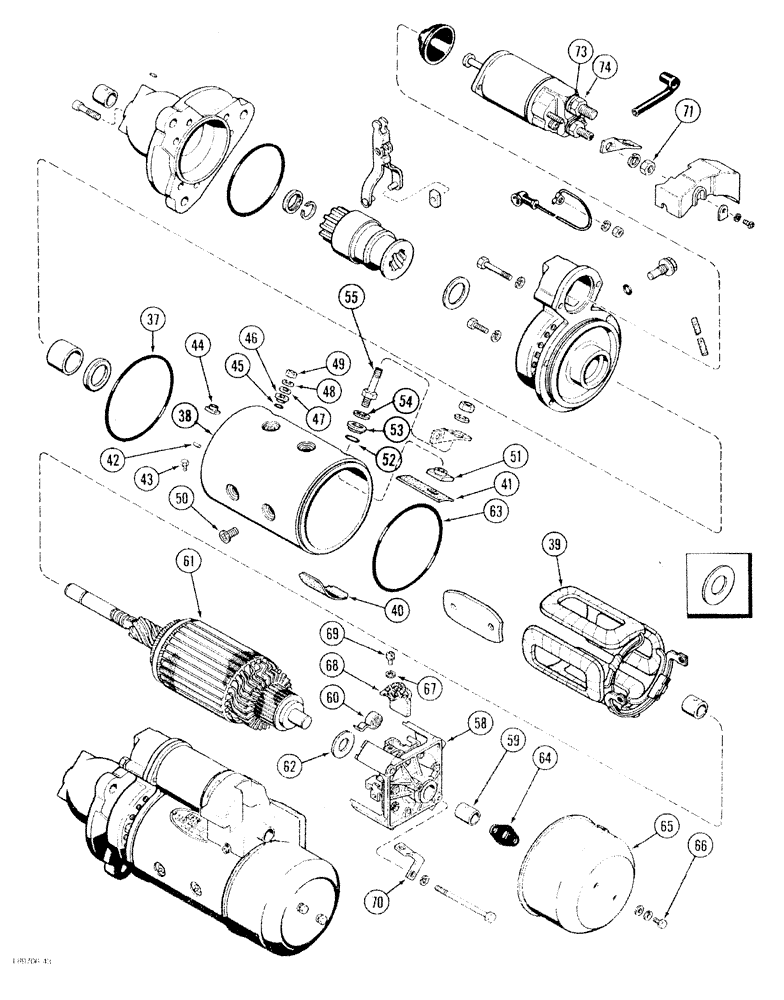

Запчасти Case IH 2096 (4-042) - STARTER ASSEMBLY, NIPPONDENSO NO. 028000-7430 (CONTD) (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A162469
STARTING MOTOR
STARTER ASSEMBLY engine, Includes: Ref. 37 - 74 and 2 - 33 on Fig. 4-040
1шт.
37
A47820
O-RING
yoke to center bearing
1шт.
38
A47821
YOKE
ASSEMBLY field coil, Includes: Ref. 39 - 54
1шт.
39
A47822
COIL
ASSEMBLY field
1шт.
40
A47833
INSULATOR
field
1шт.
41
A47832
INSULATOR
field
1шт.
42
A47824
PIN
dowel, yoke
1шт.
43
814-5010
BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd
hex, 5 mm x 10 mm
1шт.
44
A47825
BUSHING
terminal insulating, inner
1шт.
45
A47826
RING
O-RING terminal
1шт.
46
A47827
BUSHING
terminal insulating, outer
1шт.
47
195-513
WASHER,#10
flat, 7/32 x 1/2 x 1/16 inch
1шт.
48
892-1105
LOCK WASHER,M5
WASHER lock, 5 mm
2шт.
49
825-1405
NUT,M5, Cl 8
1шт.
50
A47823
SCREW,M10 x 1.5 x 1.5mm
flat head, 10 mm x 20 mm
8шт.
51
A47829
BUSHING
inner, terminal insulating
1шт.
52
A47830
RING
O-RING terminal
1шт.
53
A47831
BUSHING
outer, terminal insulating
1шт.
54
495-21038
WASHER,5/16"
(flat, 3/8 x 7/8 x 5/64") 5/16"
1шт.
55
A47828
BOLT
terminal
1шт.
58
A47814
FRAME
ASSEMBLY end, commutator, Includes: Ref. 59 and 60
1шт.
59
A47784
BUSHING
drive housing
1шт.
60
A47815
SPRING
brush
4шт.
61
A47812
ARMATURE
ASSEMBLY starter
1шт.
62
A47813
WASHER
end, armature
1шт.
63
39738
O-RING,4.609" ID x 0.139" Width
end cover
1шт.
64
A47835
GASKET
end cover
1шт.
65
A47834
COVER
end, starter
1шт.
66
814-5010
BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd
hex, 5 mm x 10 mm
2шт.
67
892-1116
LOCK WASHER,M16
WASHER lock, 6 mm
2шт.
68
A47817
BRUSH, COMMUTATOR
BRUSH starter
4шт.
69
A47816
SCREW,Pan Cross, M5 x 0.8 x 12mm
slotted, 5 mm x 12 mm
4шт.
70
A47818
CONNECTOR, ELEC
CONNECTOR brush
2шт.
71
425-146
JAM NUT,3/8" - 16, Gr 5
hex, jam, 3/8 inch NC
1шт.
73
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
1шт.
74
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
1шт.
Выбрано товаров: 36
