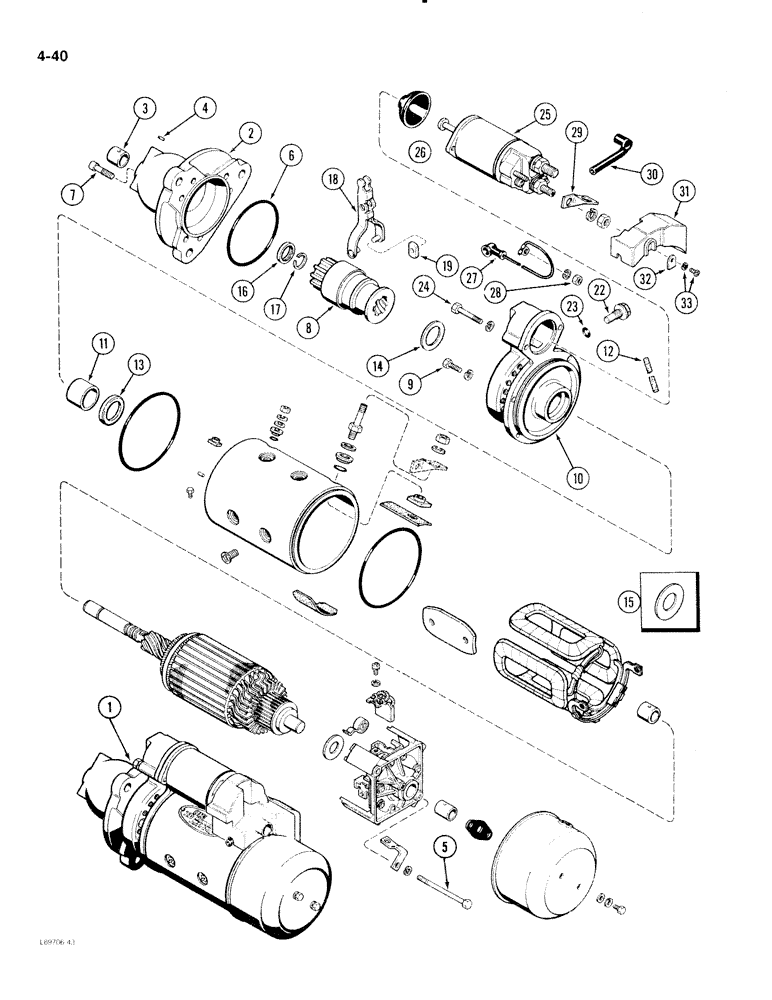

Запчасти Case IH 2096 (4-040) - STARTER ASSEMBLY, NIPPONDENSO NO. 028000-7430 (04) - ELECTRICAL SYSTEMS

1

A162469

STARTING MOTOR

STARTER ASSEMBLY - engine, Nippondenso No. 028000-7430, Includes: Ref. 2 - 33 and 37 - 74 on Fig. 4-042

1шт.

2

A47783

HOUSING

ASSEMBLY - drive, Includes: Ref. 3 and 4

1шт.

3

A47784

BUSHING

- drive housing

1шт.

4

A47785

PLUG

- housing cover

1шт.

5

A47819

BOLT

- hex through, 7 mm x 86 mm

2шт.

6

A47786

SEAL

O-RING - housing

1шт.

7

A47787

BOLT

- special, 8 mm x 31 mm

6шт.

8

A47788

CLUTCH

ASSEMBLY - drive

1шт.

9

A47809

BOLT

- hex, 7 mm x 20 mm

5шт.

10

A47805

HOUSING

- bearing, center, Includes: Ref. 11 - 13

1шт.

11

A47806

BUSHING

- bearing, center

1шт.

12

A47807

FELT

- bearing, oil

1шт.

13

A47808

OIL SEAL

- oil

1шт.

14

A47811

WASHER

- backup, oil seal

1шт.

15

A47810

WASHER

- brake

1шт.

16

A47789

COLLAR

- stop, pinion

1шт.

17

A47790

RING, SNAP

RING - snap, collar to shaft retaining

1шт.

18

A47791

LEVER

ASSEMBLY - drive, starter, Includes: Ref. 19

1шт.

19

A47792

RING

- drive lever

2шт.

22

A47793

BOLT

- pivot

1шт.

23

A47794

RING,11 mm ID

O-RING - pivot bolt, drive lever

1шт.

24

A47795

BOLT

- hex, 6 mm x 42 mm

2шт.

25

A47796

SWITCH

ASSEMBLY - magnetic, Includes: Ref. 26 - 28

1шт.

A187795R

REMAN-SOLENOID

2096 (S/N 17897500 TO 17897505, 17897510 & AFTER) NIPPONDENSO NO. 028000-7430 (1/84-12/86), Reman For New P/N A47796

1шт.

A187795C

CORE-SOLENOID

Return Number

1шт.

26

A47797

COVER

- switch, magnetic

1шт.

27

A47798

ELECTRICAL WIRE

WIRE - lead

1шт.

28

A47799

NUT

- hex special, No. 10

1шт.

29

A47800

CONNECTOR, ELEC

CONNECTOR - terminal

1шт.

30

A47801

TUBE

- drain, switch

1шт.

31

A47802

COVER

- terminal

1шт.

32

A47803

PLATE

- terminal cover

1шт.

33

A47804

SCREW,M4 x 0.7 x 0.7mm

- plate retaining, 4 mm x 9 mm

1шт.
