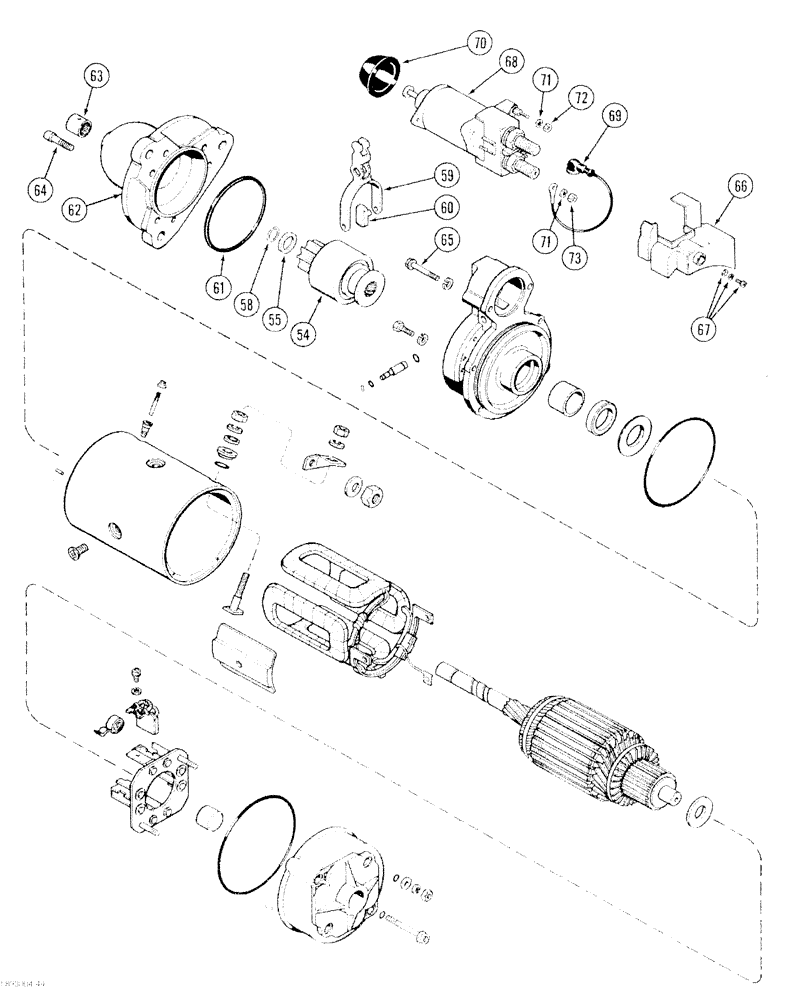

Запчасти Case IH 2096 (4-038) - STARTER ASSEMBLY, NIPPONDENSO NO. 128000-5330 (CONTD) (04) - ELECTRICAL SYSTEMS

A187728

STARTING MOTOR

STARTER ASSEMBLY engine, Includes: Ref. 54 - 73 and 1 - 53 on Fig. 4-036

1шт.

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

AC187728

CORE-STARTER

Return Part Number

1шт.

A187728GV

STARTER MOTOR

Value

1шт.

54

A187848

CLUTCH ASSEMBLY

CLUTCH ASSEMBLY drive, starter

1шт.

55

A187855

NUT

NUT stop, pinion

1шт.

58

A47790

RING, SNAP

RING SNAP RING snap, Serial Range: collar-shaft

1шт.

59

A187853

LEVER

LEVER ASSEMBLY clutch, starter, Includes: Ref. 60

1шт.

60

A187854

WEAR PAD

PAD lever

2шт.

61

A47786

SEAL

O-RING housing, clutch

1шт.

62

A187849

HOUSING

HOUSING ASSEMBLY clutch drive, Includes: Ref. 63

1шт.

63

NSS

NOT SOLD SEPARAT

BEARING needle

1шт.

64

A187856

BOLT,Hex, M7 x 24.50mm

BOLT hex, drive housing

6шт.

66

A187864

COVER

COVER KIT terminal, Includes: Ref. 67

1шт.

67

NSS

NOT SOLD SEPARAT

SCREW ASSEMBLY cover

1шт.

68

A187863

SOLENOID SWITCH

SWITCH ASSEMBLY magnetic solenoid, Includes: Ref. 69 - 73

1шт.

69

NSS

NOT SOLD SEPARAT

WIRE connecting

1шт.

70

NSS

NOT SOLD SEPARAT

COVER plunger

1шт.

71

NSS

NOT SOLD SEPARAT

WASHER lock

3шт.

72

NSS

NOT SOLD SEPARAT

NUT hex

1шт.

73

NSS

NOT SOLD SEPARAT

NUT hex

2шт.

65

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

BOLT - hex, 8 x 40 mm

2шт.
