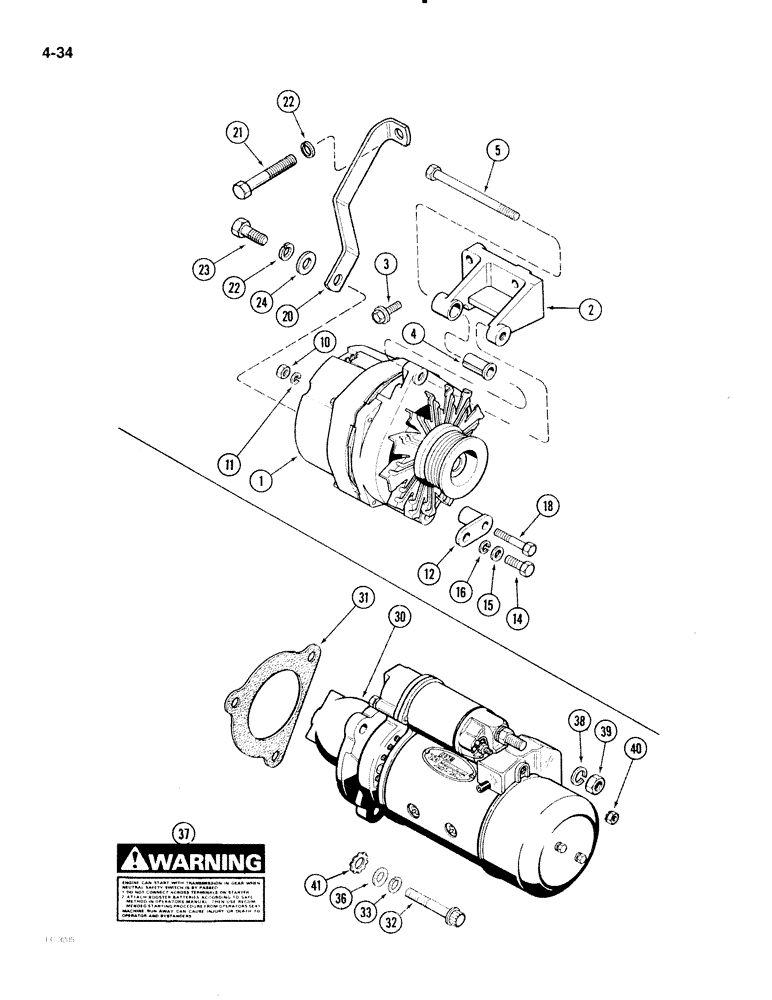

Запчасти Case IH 2096 (4-034) - ALTERNATOR AND STARTER MOTOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

A181766

ALTERNATOR

ALTERNATOR ASSEMBLY - electrical, 105 amp (Delco) (See Figure 4-044), mounting

1шт.

1

103808A1GV

ALTERNATOR

Value, 12V, 105A

1шт.

1

103808A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 105 ampere

1шт.

1

103808A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

A163085GV

ALTERNATOR

Value, 12V, 105A

1шт.

1

103807A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 105 ampere

1шт.

1

103807A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

A187623

ALTERNATOR

ALTERNATOR ASSEMBLY - electrical, 95 amp (Bosch) (Tractors with cab) (See Figure 4-046), mounting

1шт.

1

AR187623

REMAN-ALTERNATOR

Reman for New PN A187623

1шт.

1

AC187623

CORE-ALTERNATOR

Return Part Number

1шт.

1

A187623GV

ALTERNATOR

Value, 95 Amp, Tractors with cab

1шт.

1

A187873

ALTERNATOR,12V, 65A

ALTERNATOR ASSEMBLY - electrical, 65 amp (Bosch) (Tractors without cab) (See Figure 4-048), mounting

1шт.

1

AR187873

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

1

AC187873

CORE-ALTERNATOR

Return Part Number

1шт.

1

A187873GV

ALTERNATOR

Value, 65 Amp, Tractors without cab

1шт.

2

J910713

SUPPORT

SUPPORT - alternator mounting (Replaces J908774)

1шт.

3

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 25 mm, Alternator mounting

3шт.

4

J902469

SPACER

SPACER - alternator mounting

1шт.

5

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

BOLT - , Alternator mounting Hex, M10 x 100, 8.8

1шт.

10

825-1406

NUT,M6, Cl 8

NUT, , Alternator mounting M6, Cl 8

1шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Alternator mounting 1/4"

1шт.

12

J903922

PLATE

BRACE - alternator, mounting

1шт.

14

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

BOLT, , Alternator Mounting Hex, M10 x 25, 8.8, Full Thd

1шт.

15

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

WASHER, , Alternator mounting M11 x 24 x 2

1шт.

16

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, alternator mounting

1шт.

18

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

BOLT - hex, 8 - 1.25 x 45 mm, alternator mounting

1шт.

20

A180653

BRACKET

BRACE - rear, alternator mounting

1шт.

21

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

BOLT - hex, 10 - 1.5 x 70 mm, alternator mounting

1шт.

22

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, alternator mounting

1шт.

23

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

BOLT, , Alternator mounting Hex, M10 x 25, 8.8, Full Thd

1шт.

24

495-21044

WASHER,3/8"

WASHER, (flat, 7/16 x 1 x 5/64 inch), Alternator mounting 3/8"

1шт.

30

REF

INSTRUCTION

STARTER - engine (See Figure 4-036 and 4-40), motor mounting

1шт.

30

87297380

REMAN-STARTER

Remanufactured Starter

1шт.

30

87297381

CORE-STARTER

Return Part Number

1шт.

31

1536339C1

GASKET

GASKET - starting motor mounting (Replaces A27933)

1шт.

32

866-12035

12 PT SCREW,Flg, M12 x 35mm, Cl 8.8

BOLT - starter to engine retaining, motor mounting

3шт.

33

892-11012

LOCK WASHER,M12

WASHER, LOCK, , Starter Motor Mounting M12

2шт.

36

A75865

WASHER

WASHER - starter motor mounting

4шт.

37

321-3709

DECAL

DECAL - starter warning (On starter), motor mounting

1шт.

38

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Starter motor mounting 1/2"

1шт.

39

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Starter motor mounting 1/2"-13, G5

1шт.

40

193-1000

NUT,Keps, w/LW,#10-32

NUT - hex, with external tooth washer, No. 10 NF, starter motor mounting

1шт.

41

A34650

LOCK WASHER

WASHER - external lock, starter motor mounting

1шт.
