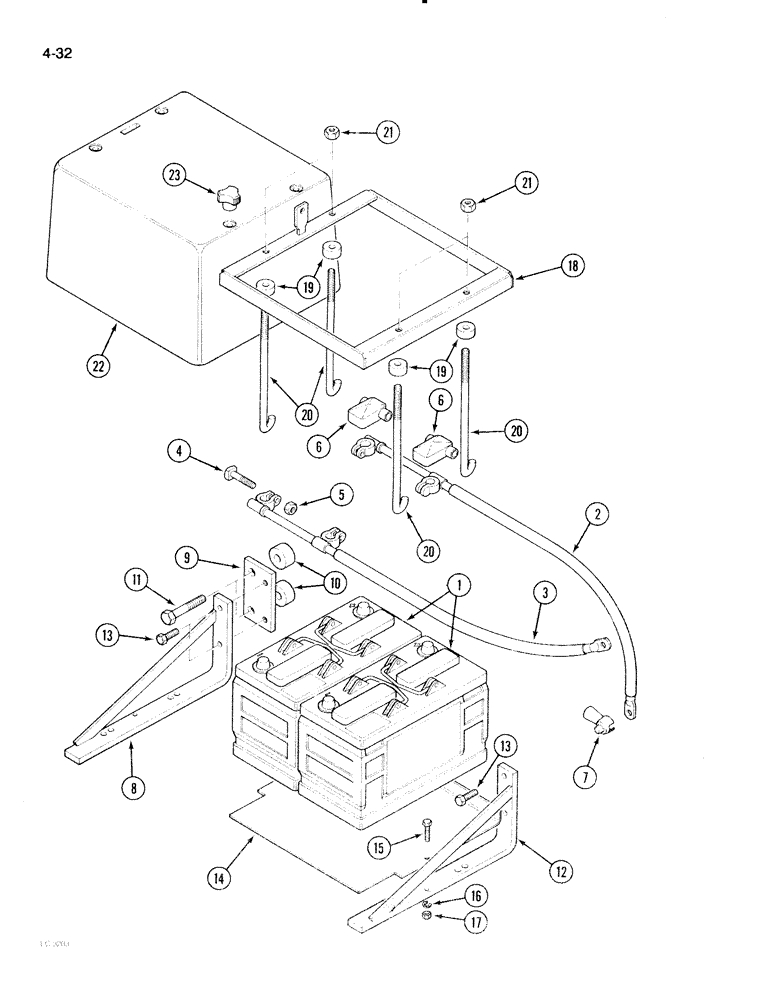

Запчасти Case IH 2096 (4-032) - BATTERY, BATTERY MOUNTING AND CABLES (04) - ELECTRICAL SYSTEMS

1

A186006

DRY BATTERY

BATTERY - 12 volt

2шт.

2

A185797

CABLE

- battery, positive (Replaces A180133)

1шт.

3

A185798

CABLE

- battery, negative

1шт.

4

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- square head, 5/16 NC x 1-3/8 inch, grade 2

4шт.

5

129-737

NUT

- hex, 5/16 inch NC

4шт.

6

A139372

CAP

- protection, battery terminal

2шт.

7

A181302

BOOT

- terminal, starter motor

1шт.

8

A177859

BRACKET

- battery mounting, rear

1шт.

9

A177861

PLATE

- battery mounting

1шт.

10

R40958

BUSHING

- battery mounting plate

2шт.

11

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

2шт.

12

A177856

BRACKET

- battery mounting, front

1шт.

13

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

14

A177862

PLATE

- battery

1шт.

15

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

16

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

17

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1

2шт.

18

A185765

CLAMP

RETAINER - battery

1шт.

19

A185621

SPACER

- battery

4шт.

20

A177866

BOLT

BOLT - battery hold-down

4шт.

21

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

22

A185790

COVER

- battery

1шт.

23

A185783

KNOB

- black plastic, 5/16 inch NC

4шт.
