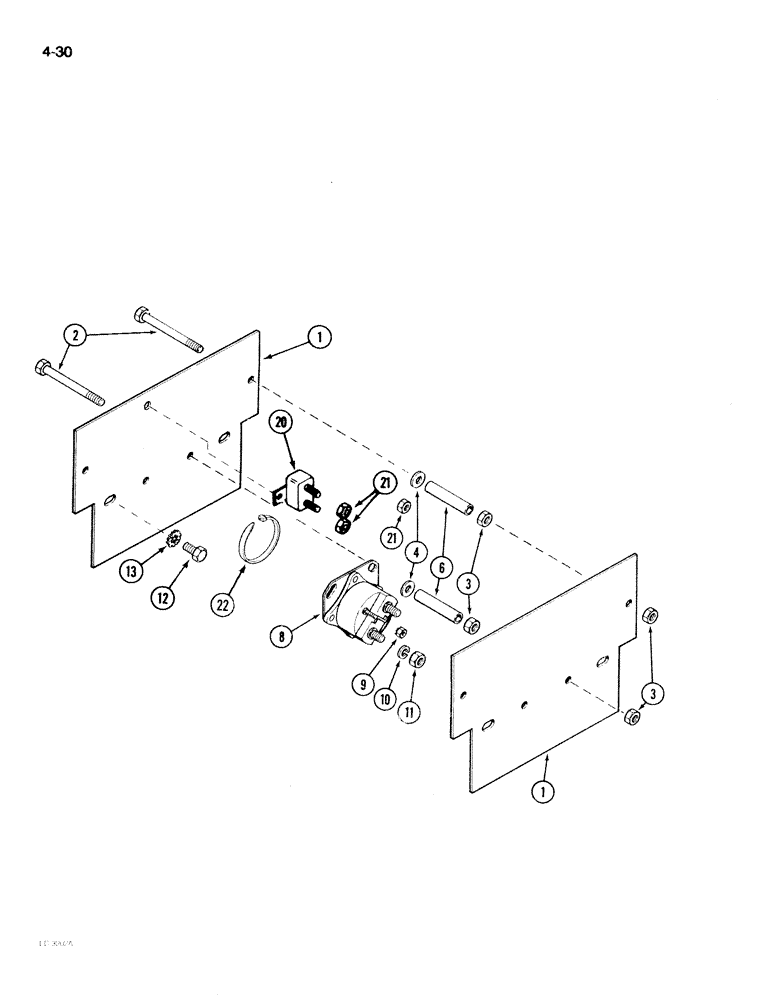

Запчасти Case IH 2096 (4-030) - SOLENOID AND CIRCUIT BREAKER (04) - ELECTRICAL SYSTEMS

1

A186205

PLATE

- solenoid and circuit breaker

2шт.

2

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

4шт.

3

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

8шт.

4

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

6

R25287

TUBE,0.375" OD x 2.12" L

SPACER - solenoid cover

4шт.

8

A39079

SOLENOID

- ignition

1шт.

9

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

12

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

13

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

20

92057C1

CIRCUIT-BREAKER

BREAKER - circuit, 50 amp (Replaces A165723)

1шт.

21

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, self-locking, No. 10 NF

3шт.

22

L76747

STRAP

- tie, breaker to engine harness

1шт.
