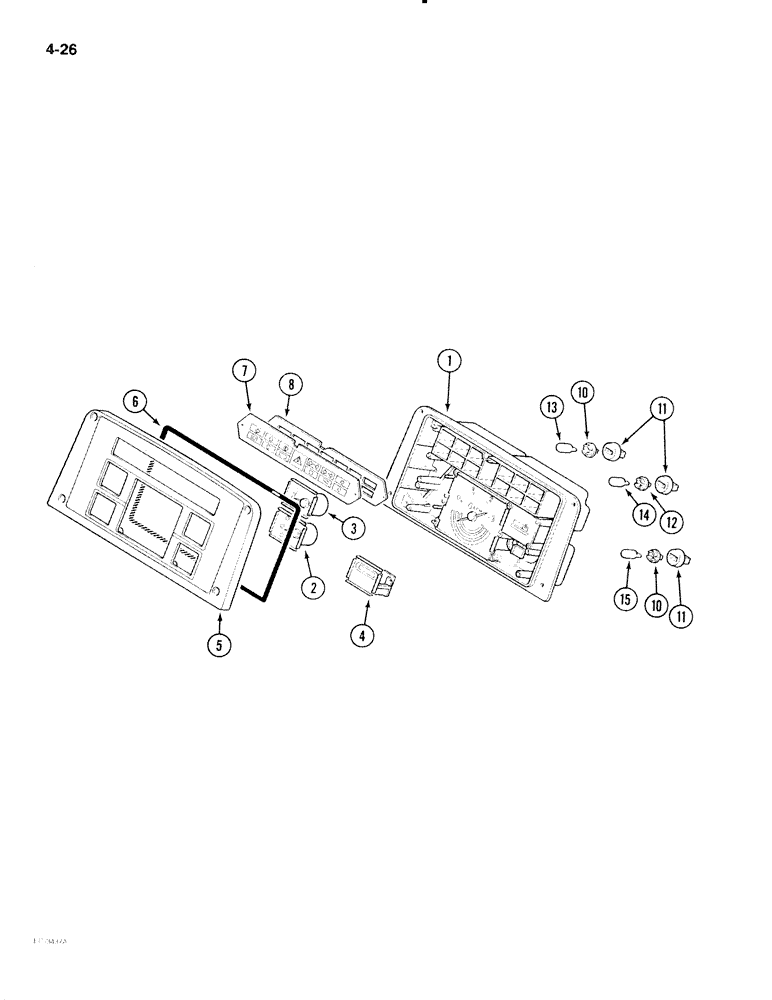

Запчасти Case IH 2096 (4-026) - INSTRUMENT CLUSTER, ANALOG DISPLAY (04) - ELECTRICAL SYSTEMS

1983370C1

CLUSTER, INSTR.

CLUSTER - analog instrument display, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - instrument cluster

1шт.

2

1983312C1

FUEL GAUGE

GAUGE - fuel, 90 ohm

1шт.

3

1983311C1

INDICATOR

GAUGE - temperature

1шт.

4

1983313C2

HOURMETER

GAUGE - hourmeter

1шт.

5

1964871C1

BEZEL

- front

1шт.

6

1964872C1

O-RING

- front bezel

1шт.

7

1983314C1

SYMBOLS

LENS - warning lights

1шт.

8

1964874C1

GASKET

- lens

1шт.

10

1964876C1

HOLDER

- bulb

16шт.

11

1964877C1

BOOT

- bulbholder

17шт.

12

1983316C1

DIODE ELEMENT

HOLDER - bulb (Indicator warning light)

1шт.

13

20627R1

BULB,C2F, #194, 14V

LAMP - 14 volt, 0.27 amp, type C-2F, trade No. 194 (Instrument cluster warning lights)

12шт.

14

26617R1

BULB,C2F, #168, 14V

LAMP - 14 volt, 0.35 amp, type C-2F, Trade No. 168 (Indicator warning light)

1шт.

15

NSS

NOT SOLD SEPARAT

LAMP - 14 volt, 0.19 amp, type C-2F, Trade No. 161 (Instrument cluster backlighting)

4шт.
