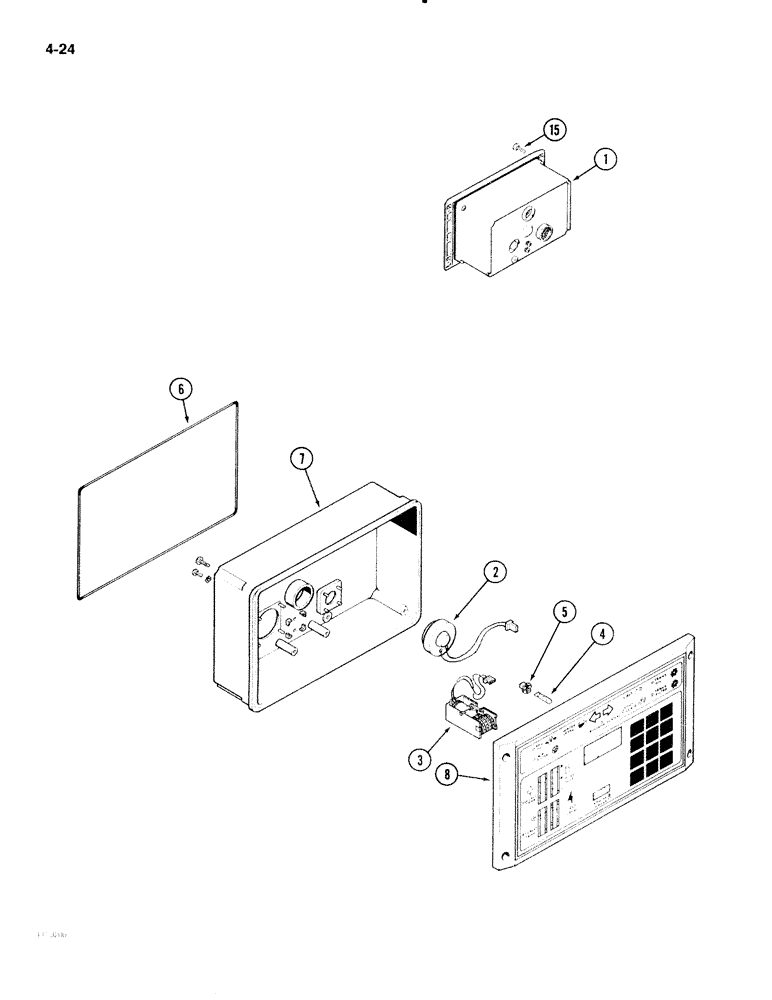

Запчасти Case IH 2096 (4-024) - INSTRUMENT CLUSTER, DIGITAL DISPLAY (04) - ELECTRICAL SYSTEMS

1

A187171

CLUSTER, INSTR.

CLUSTER, INSTRUMENT CLUSTER - instrument (New) (Replaces A169152), Includes: Ref. 2 - 8

1шт.

1

1935094C1

REMAN-INSTR CLUSTER

REMAN-INSTRUMENT CLUSTER CLUSTER - instrument (Remanufactured) (Replaces AR169152)

1шт.

1

1935093C1

CORE-CLUSTER, INSTR

CORE-INSTRUMENT CLUSTER CLUSTER - instruments (Use this number when returning cluster for credit) (Replaces AC169152)

1шт.

2

A48886

BUZZER

ALARM - instrument cluster

1шт.

3

A48887

GAUGE

COUNTER - instrument cluster

1шт.

4

A48888

BULB

BULB - instrument cluster

1шт.

5

A48889

LAMP SOCKET

SOCKET - bulb

1шт.

6

A48890

GASKET

GASKET - instrument cluster

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - instrument cluster

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - face, instrument cluster

1шт.

15

187-1333

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/4 inch

4шт.
