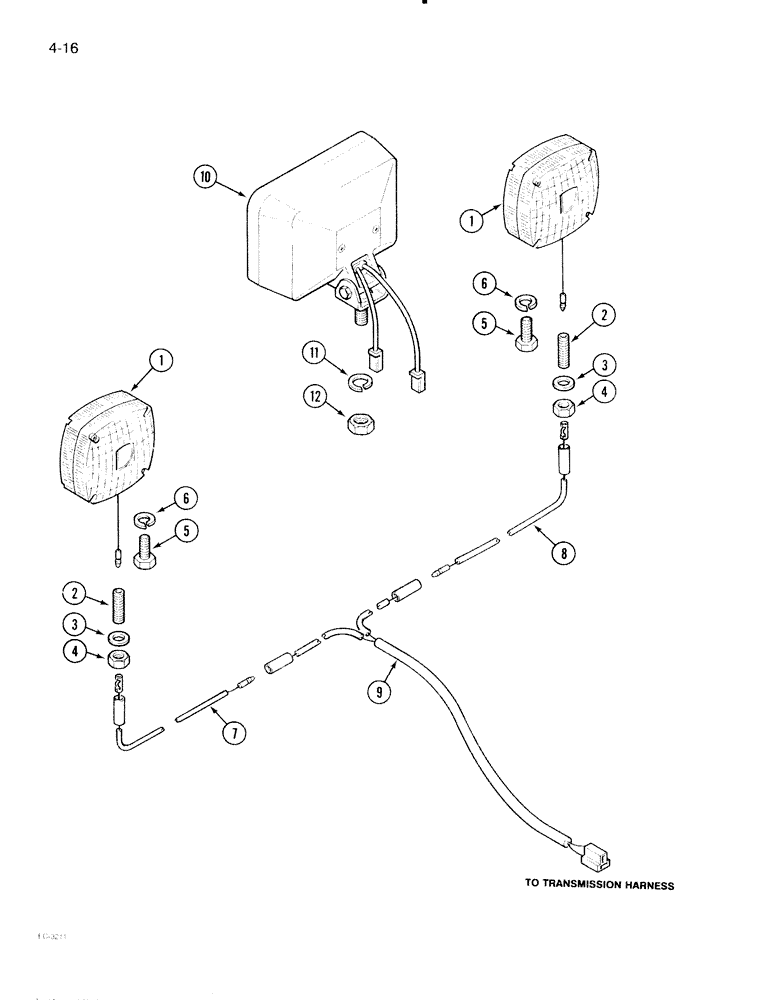

Запчасти Case IH 2096 (4-016) - PLATFORM WARNING LIGHT WIRING, TRACTOR WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

A44201

LIGHT ASSY.

LAMP ASSEMBLY - warning flasher (See Figure 4-050)

2шт.

2

A45118

STUD

- universal light mount

2шт.

3

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

4

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

2шт.

5

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

6

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

7

A160292

ELECTRICAL WIRE

CABLE - flasher light, right

1шт.

8

A160293

ELECTRICAL WIRE

CABLE - flasher light, left

1шт.

9

A169888

HARNESS

- flasher lights

1шт.

10

REF

INSTRUCTION

LIGHT - flood (See Figure 4-052)

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
