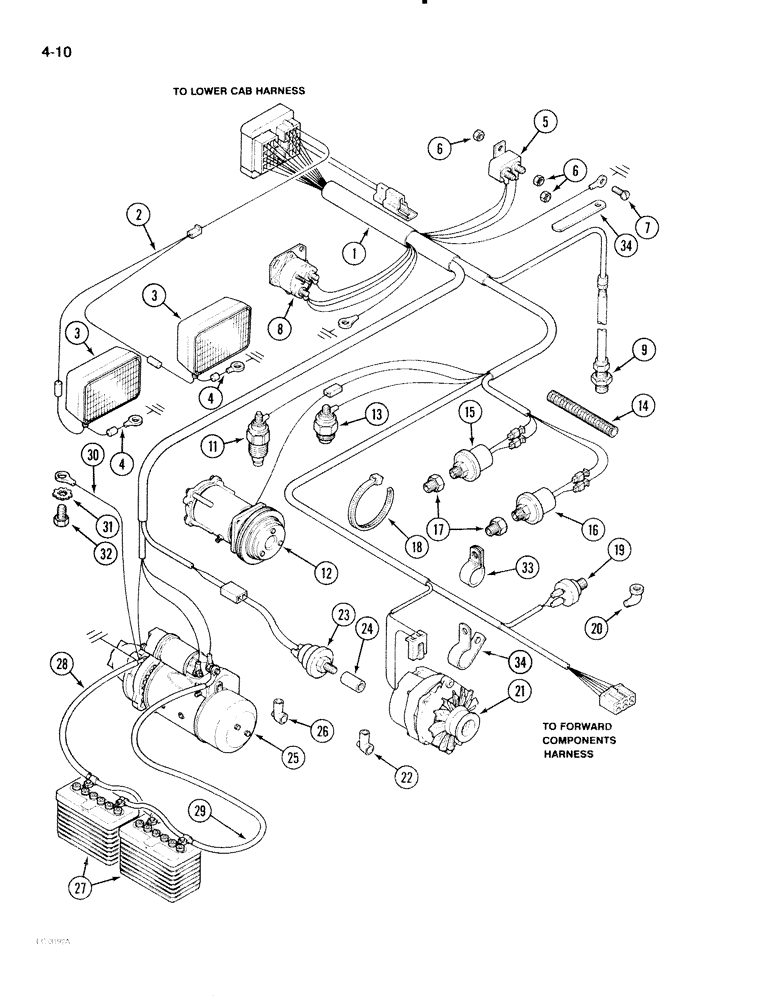

Запчасти Case IH 2096 (4-010) - ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

A186160

HARNESS

HARNESS - engine (Used with Delco 105 alternator)

1шт.

1

1983250C1

HARNESS

HARNESS - engine (Used with Bosch 95 alternators)

1шт.

2

A147345

HARNESS

HARNESS - lights, front flood

1шт.

3

REF

INSTRUCTION

LAMP - front, lower (See Figure 4-054)

2шт.

4

A147343

ELECTRICAL WIRE

WIRE WIRE - ground, front flood lights

2шт.

5

92057C1

CIRCUIT-BREAKER

BREAKER - circuit, 50 ampere (See Figure 4-030)

1шт.

6

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, self-locking, No. 10 NF

2шт.

7

L76747

STRAP

STRAP - tie, breaker to engine harness

1шт.

8

A39079

SOLENOID

SOLENOID - ignition (See Figure 4-030)

1шт.

9

A186169

TRANSMITTER

SENSOR - magnetic, engine speed (Use with digital cluster)

1шт.

9

14-1614

BOLT,Hex, 1" - 14 x 7/8", Gr 5, Full Thd

BOLT - hex, 1-14 x 7/8 inch (Use with analog cluster)

1шт.

11

A176566

TRANSMITTER

SENDER - temperature, engine water (Use with digital cluster)

1шт.

11

A187687

TEMPERATURE SENDER

SENDER - temperature, engine water (Use with analog cluster)

1шт.

12

A177068

AIRCOND. COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioning (See Figure 9-118 and 9-120)

1шт.

12

A177068R

REMAN-A/C COMPRESSOR

2096 DIESEL S/N 17897500 TO 17897505, 17897510 & AFTER (1/84-12/86)

1шт.

12

A177068C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

13

J903575

SOLENOID

SOLENOID - shut-off, 12 volt (See Figure 3-006)

1шт.

14

A186161

CONDUIT

CONDUIT - convolute, 8.25 inch

2шт.

15

1964949C1

IGNITION SWITCH

SWITCH - engine oil pressure, 22 psi (Digital display)

1шт.

15

444614

PLUG,Hex Hd, 1/8"-27, Brass

PLUG - i/8 inch, (Analog display)

1шт.

16

1964948C1

IGNITION SWITCH

SWITCH - engine oil pressure, 8 psi (Replaces A187688)

1шт.

17

217-1032

ADAPTER,1/8" - 27 NPT x 1/8" - 27 NPT

ADAPTER - switch, 1/8 x 1/8 inch NPT

2шт.

18

A169433

CABLE TIE,304.8mm L

STRAP, tie, nylon, 12 inch

1шт.

19

3224405R91

RESTRICTION SWITCH

SWITCH - air cleaner service (Replaces A166778)

1шт.

20

221-1401

ELBOW,45º, 1/8"-27, NPT

ELBOW - 45 degree, 1/8 inch NPT (Used with A166778)

1шт.

21

A181766

ALTERNATOR

ALTERNATOR ASSEMBLY - electrical, 105 amp (Delco) (See Figure 4-044)

1шт.

21

103808A1GV

ALTERNATOR

Value, 12V, 105A

1шт.

21

103808A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 105 ampere

1шт.

21

103808A1C

CORE-ALTERNATOR

Return Number

1шт.

21

A187623

ALTERNATOR

ALTERNATOR ASSEMBLY - electrical, 95 amp (Bosch) (Tractors with cab) (See Figure 4-046)

1шт.

21

A187623GV

ALTERNATOR

Value, 95 Amp Tractors with cab

1шт.

21

A187873

ALTERNATOR,12V, 65A

ALTERNATOR ASSEMBLY - electrical, 65 amp (Bosch) (Tractors without cab) (See Figure 4-048)

1шт.

21

A187873GV

ALTERNATOR

Value, 65 Amp, Tractors Witout cab

1шт.

22

A21753

CAP

BOOT - terminal

1шт.

23

1964951C1

IGNITION SWITCH

SWITCH - pressure, 8 psi, jump start safety (Replaces A180908)

1шт.

24

221-1335

COUPLING,Pipe, 1/8" NPT

COUPLING, Pipe, 1/8" NPT

1шт.

25

REF

INSTRUCTION

STARTER - engine (See Figure 4-036 and 4-040)

1шт.

26

A181302

BOOT

BOOT - terminal (Starter motor)

1шт.

27

A186006

DRY BATTERY

BATTERY - 12 volt, low maintenance (See Figure 4-032)

2шт.

28

A185798

CABLE

CABLE - battery, negative (See Figure 4-032)

1шт.

29

A185797

CABLE

CABLE - battery, positive (See Figure 4-032) (Replaces A180133)

1шт.

30

A186133

CABLE

CABLE - ground, cab

1шт.

31

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

1шт.

32

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

BOLT, Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

33

A185958

CLAMP,7/8", 1/2" Bolt

CLIP - cable (Switch coupling to engine)

1шт.

33

371035R1

CLIP

CLIP - cable (Oil pressure switch wires to throttle bracket)

1шт.

33

49838

CLAMP

CLAMP - cable (Alternator support bracket)

1шт.

33

51200329

CLIP

CLAMP - harness (Lower rear hood supports, right and left)

2шт.

34

A22883

CLIP

CLIP - cable (Harness to rear right hood catch support)

1шт.
