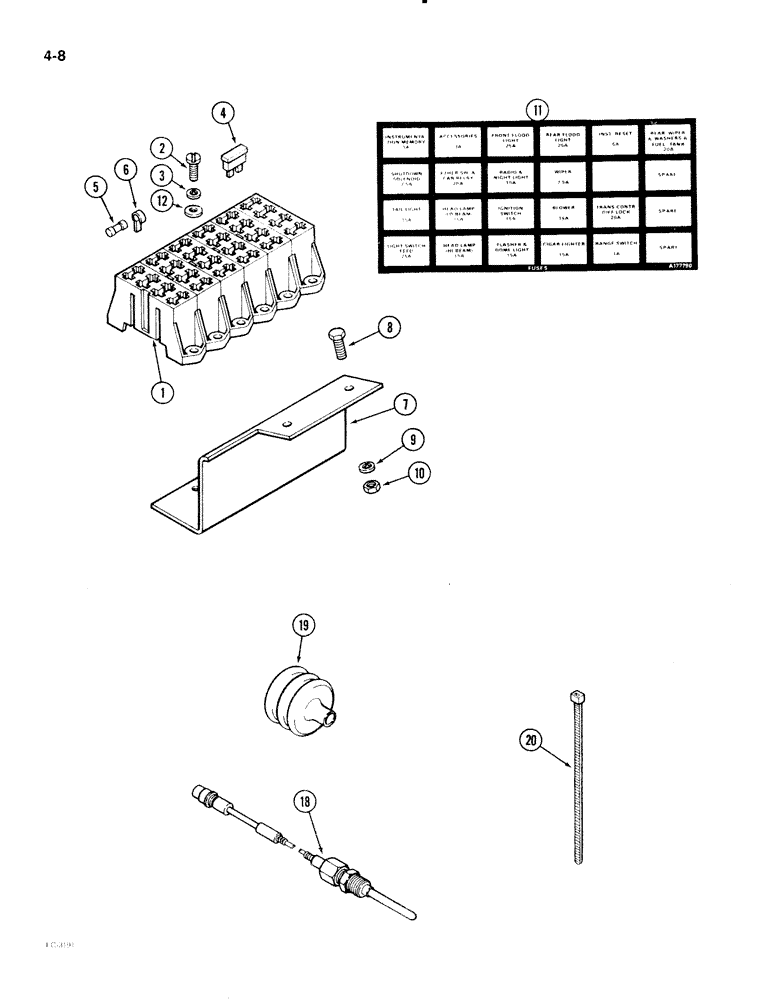

Запчасти Case IH 2096 (4-008) - FUSES AND FUSE HOLDER (04) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

HOLDER - fuse (Part of instrument harness) (See Figures 4-002 and 4-004)

1шт.

2

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

3шт.

3

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

4

A187975

FUSE

- 1 ampere

1шт.

4

A149796

FUSE

- 3 ampere (Violet)

1шт.

4

A149798

FUSE

- 5 ampere (Tan)

1шт.

4

A149799

FUSE

- 7.5 ampere (Brown)

1шт.

4

A149800

FUSE,10 Amp

- 10 ampere (Red)

1шт.

4

A149801

FUSE,Lt Blue, 15 Amp

- 15 ampere (Light blue)

1шт.

4

A149802

FUSE

- 20 ampere (Yellow)

2шт.

4

A149803

FUSE,25 Amp

- 25 ampere (White)

4шт.

5

A163102

FUSE

- 1 ampere

1шт.

6

A163103

CLIP

- fuse adapter

2шт.

7

A163038

BRACKET

- fuse block

1шт.

8

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

2шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

425-104

NUT,1/4"-20, Cl 5

2шт.

11

A181300

DECAL

- fuse location, digital display (Illustrated), Serial Range: -17897528

1шт.

11

1975364C1

DECAL

- fuse location, digital display (Not illustrated), Start Serial: 17897528

1шт.

11

1975366C1

DECAL

- fuse location, analogue display (Not illustrated)

1шт.

11

A169143

DECAL - fuse location (French language) (Not illustrated), Serial Range: -17897528

1шт.

12

495-31022

WASHER,#10

3шт.

18

A162936

TRANSMITTER

THERMOCOUPLE - exhaust, pyrometer

1шт.

18

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- 1/4 inch (Analog cluster), pyrometer thermocouple

1шт.

19

A145931

BELLOWS

BOOT - thermocouple (Used with A162936), pyrometer

1шт.

20

L76747

STRAP

- nylon tie (Used with A162936), pyrometer thermocouple

1шт.
