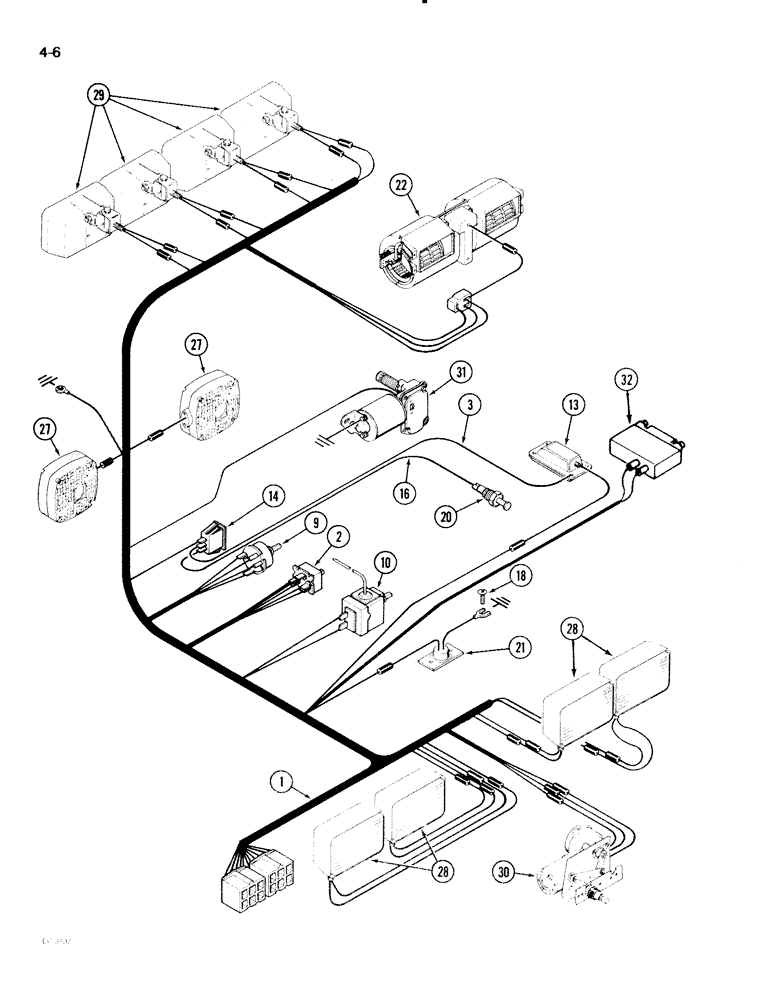

Запчасти Case IH 2096 (4-006) - CAB HARNESS (04) - ELECTRICAL SYSTEMS

1

F66064

HARNESS

- cab

1шт.

2

A42622

SWITCH

- blower (See Figure 9-102)

1шт.

3

F64731

CABLE PULLING GRIP

CABLE - dome, Serial Range: light-switch

1шт.

9

F43359

SWITCH

- wiper (See Figure 9-102)

1шт.

10

F43186

SWITCH ASSY

SWITCH - air conditioning (See Figure 9-102)

1шт.

13

R54198

COURTESY LIGHT

LIGHT - dome (See Figure 9-100)

1шт.

14

F64733

IGNITION SWITCH

SWITCH - dome light (See Figure 9-102)

1шт.

16

F64127

ELECTRICAL WIRE

CABLE - door light, Serial Range: (Switch-door)

1шт.

18

280-1658

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10-16 x 1/2 inch

1шт.

20

F63895

SWITCH

- light, door opening

1шт.

21

F98279

INTERIOR LIGHT

LAMP - console (See Figure 9-100)

1шт.

22

REF

INSTRUCTION

BLOWER ASSEMBLY - cab air (See Figure 9-104)

1шт.

27

REF

INSTRUCTION

LIGHT - warning flasher (See Figure 4-050)

1шт.

28

REF

INSTRUCTION

LIGHT - flood, front (See Figure 4-052)

1шт.

29

REF

INSTRUCTION

LIGHT - flood, rear (See Figure 4-052)

1шт.

30

F96900

MOTOR HOUSING

WIPER ASSEMBLY - windshield (See Figure 9-122 and 9-124)

1шт.

31

F93209

WIPER MOTOR

MOTOR - wiper, rear window (See Figure 9-126)

1шт.

32

REF

INSTRUCTION

KIT - radio (See Figure 4-058)

1шт.
