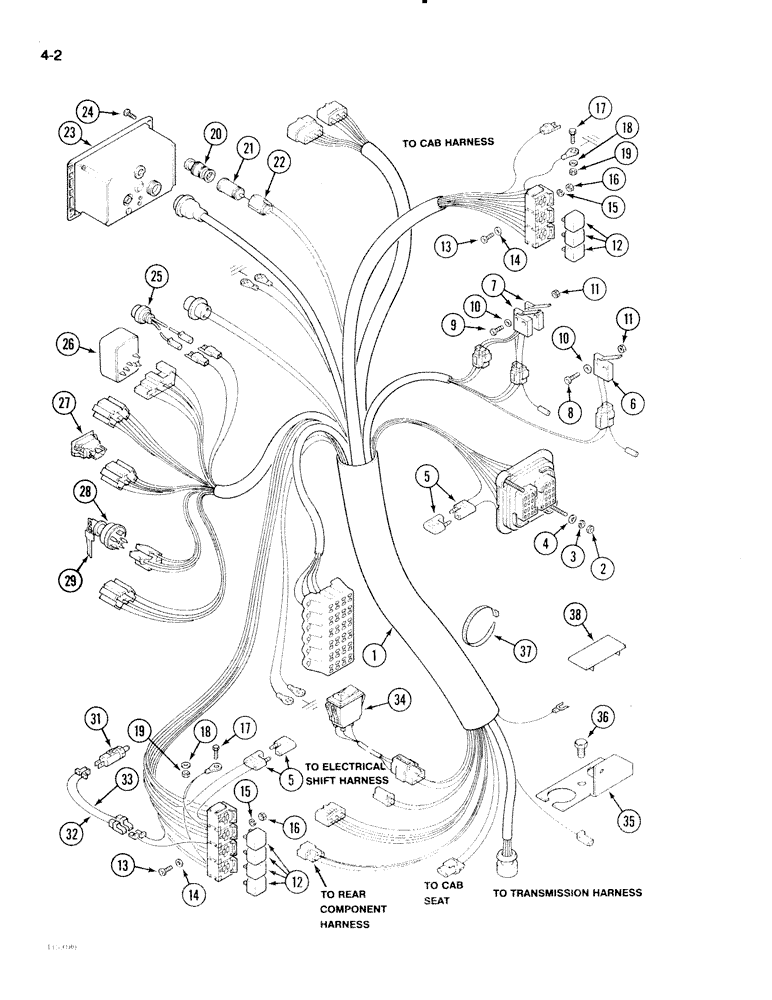

Запчасти Case IH 2096 (4-002) - INSTRUMENT HARNESS, ANALOG DISPLAY (04) - ELECTRICAL SYSTEMS

1

1983318C1

HARNESS

- instrument

1шт.

2

425-104

NUT,1/4"-20, Cl 5

2шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

4

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

5

L71879

DIODE ELEMENT,400V, 3A

DIODE - alternator protecting

2шт.

6

1343289C1

IGNITION SWITCH

SWITCH ASSEMBLY - micro, upper (Spot clutch)

1шт.

7

1343288C1

LIMIT SWITCH

SWITCH ASSEMBLY - micro (S.P.D.T.)

2шт.

8

470-10612

SCREW,Slotted Pan Hd, #6-32 x 3/4"

- machine, pan head slotted, No. 6 x 3/4 inch

2шт.

9

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

- machine, pan head slotted, No. 6 x 1-1/4 inch

2шт.

10

495-31016

WASHER,#6

4шт.

11

131-150

LOCK NUT,#6-32, GA

NUT, LOCK, #6-32, GA

4шт.

12

A147176

RELAY

- 30 amp

7шт.

13

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan head Phillips, No. 10-24 x 3/4 inch

4шт.

14

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

15

495-31022

WASHER,#10

4шт.

16

225-14110

NUT,#10-24

4шт.

17

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

2шт.

18

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

2шт.

19

193-1006

NUT,Keps, w/LW, 1/4"-20

- hex, with external tooth lock washer, 1/4 inch NC

2шт.

20

A177447

LIGHTER, CIGARETTE

ELEMENT - cigar lighter, push-in

1шт.

21

F63530

SOCKET/RECEPTACLE

SOCKET - cigar lighter

1шт.

22

F63738

CIGAR LIGHTER

SHELL - cigar lighter

1шт.

23

1983370C1

CLUSTER, INSTR.

CLUSTER - analog instrument display (See Figure 4-026)

1шт.

24

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/4 "

4шт.

25

A135520

SWITCH

- cold start

1шт.

26

A77184

SWITCH

- combination, turn signal and flasher (See Figure 4-028)

1шт.

27

A163009

SWITCH

- lights

1шт.

Ref. 27 connector is P/N 245781C1

1шт.

28

A77312

SWITCH

- ignition

1шт.

29

A77313

SET OF 2 KEYS

KEY - ignition (Set of 2)

1шт.

31

A163160

SWITCH

- brake, differential lock

1шт.

32

A169823

ELECTRICAL WIRE

WIRE - differential lock switch

1шт.

33

A169863

ELECTRICAL WIRE

WIRE - ground, differential lock switch

1шт.

34

A176685

SWITCH

- differential lock, with harness

1шт.

35

A177067

BRACKET

- harness retaining

1шт.

36

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

37

A169433

CABLE TIE,304.8mm L

STRAP, tie, nylon, 12 inch

1шт.

38

245334C1

PLUG

- panel switch cover

1шт.
