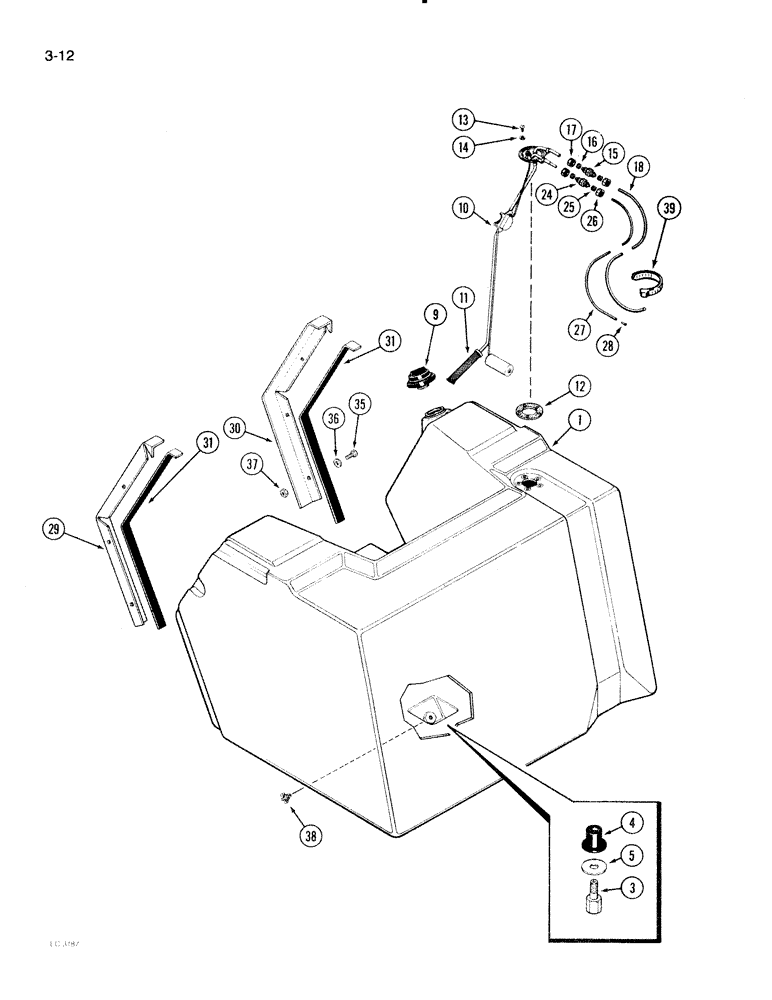

Запчасти Case IH 2096 (3-012) - FUEL TANK AND LINES, 6TA-590 ENGINE (03) - FUEL SYSTEM

1

A167685

TANK

ASSEMBLY - fuel, Includes: Ref. 3 - 5

1шт.

3

A65890

STUD,3/8" - 16 x 1/4" NPT

- (Drain valve)

1шт.

4

A143035

NUT,31.75mm OD x 26.97mm L

FASTENER - stud

1шт.

5

A65892

WASHER

- stud

1шт.

9

A185731

CAP

- fuel filler (Replaces A180111)

1шт.

10

A161769

TRANSMITTER

UNIT - sending, fuel level, Includes: Ref. 11

1шт.

11

A47706

STRAINER ELEMENT

STRAINER - fuel

1шт.

12

A11822

GASKET

- sending unit

1шт.

13

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, N0. 10 NC x 1/2 inch

5шт.

14

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

15

222-2651

HYD CONNECTOR,17/32"-24

CONNECTOR - compression, 3/8 inch tube O.D., Includes: Ref. 16 and 17

1шт.

16

222-2611

SLEEVE

- flanged, 3/8 inch O.D. tube

2шт.

17

222-2601

NUT

NUT - hex, 3/8 tube O.D. x 17/32-24 inch

2шт.

18

A62320

TUBE

- nylon, 9/32 ID x 3/8 OD x 105 inch (Fuel supply)

1шт.

24

222-2650

HYD CONNECTOR,7/16"-24

CONNECTOR - compression, 1/4 inch tube O.D., Includes: Ref. 25 and 26

1шт.

25

222-2610

SLEEVE

- flanged, 1/4 inch tube O.D.

2шт.

26

222-2600

NUT

NUT - hex, 1/4 tube O.D. x 7/16-24 inch

2шт.

27

A60722

TUBE

- nylon, 3/16 ID x 1/4 O.D. x 104 inch (Fuel return)

1шт.

28

222-601

FITTING,3/8"-24 x 1/8" NPT, Comp

ADAPTER - compression, 3/16 tube O.D. x 1/8 inch PT

1шт.

29

A139959

BRACKET

RETAINER - right, fuel tank

1шт.

30

A139961

BRACKET

RETAINER - left, fuel tank

1шт.

31

A139339

SEAL

- retainer

2шт.

35

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

6шт.

36

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

37

131-133

NUT,Ret, 3/8"-16

Speed grip Ret, 3/8"-16

6шт.

38

103647

VALVE

- drain, 1/4 inch PT

1шт.

39

L76747

STRAP

- nylon retaining (Fuel tubes to throttle cable)

1шт.
