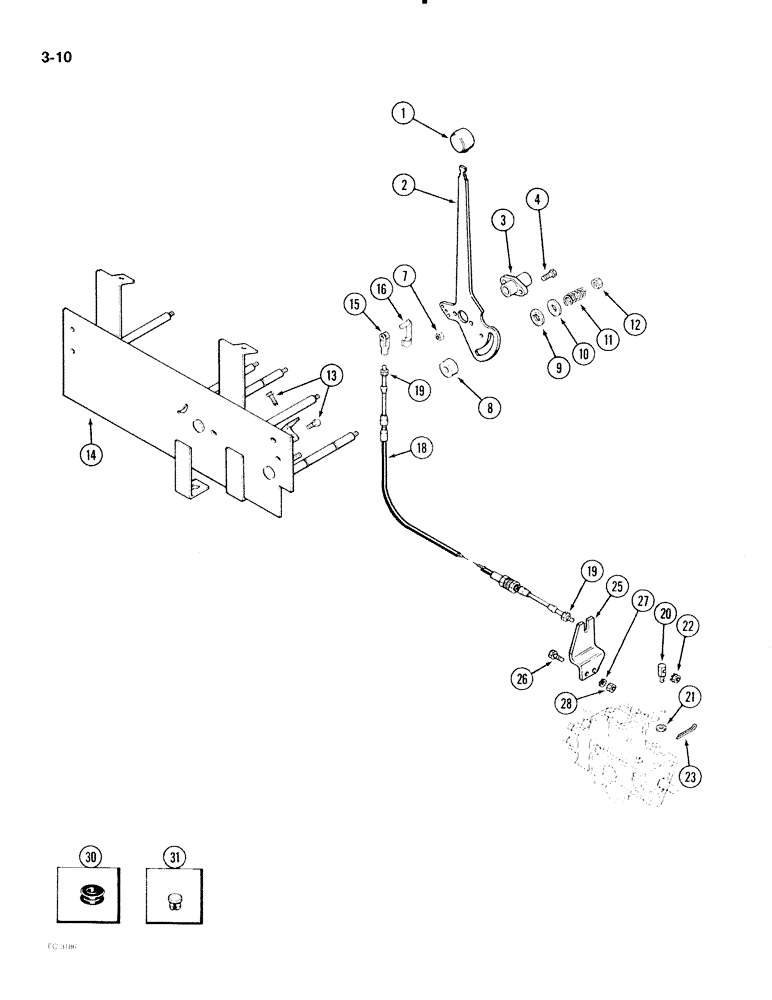

Запчасти Case IH 2096 (3-010) - THROTTLE CONTROL, 6TA-590 ENGINE (03) - FUEL SYSTEM

1

A177439

KNOB

- throttle lever (Red)

1шт.

2

A180498

LEVER

- hand, throttle control

1шт.

3

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING - pivot, hand lever

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

8

A160622

BUSHING

SPACER - lever

1шт.

9

A61069

DISC

- friction

1шт.

10

495-81149

WASHER,7/16" x 1 1/4" x .083"

- flat, 7/16 x 1-1/4 x 3/32 inch

1шт.

11

A65583

SPRING

- pressure, friction disc

1шт.

12

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex, jam, self-locking, 3/8 inch NC

1шт.

13

A67294

BOLT

- lock, lever adjustment

2шт.

14

REF

INSTRUCTION

SUPPORT - console control (See Figure 9-034)

1шт.

15

213-1

ADJUSTABLE CLEVIS,#10-32

CLEVIS - adjustable, No. 10

1шт.

16

A149683

PIN

- spring, 3/16 inch

1шт.

18

A137119

CABLE

Assembly - control, Includes: Ref. 19

1шт.

19

225-10410

NUT - hex, No. 10-32

2шт.

20

A63014

PIVOT

- throttle control cable

1шт.

21

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

1шт.

22

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

23

32-412

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

25

A181157

BRACKET

- control cable mounting

1шт.

26

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

27

492-1125

WASHER

- lock, 1/4 inch NC

2шт.

28

425-104

NUT,1/4"-20, Cl 5

2шт.

30

A141389

GROMMET

- control cable (Replaces A145925)

1шт.

31

A162961

PLUG

- 11/16 inch ID, control cable

1шт.
