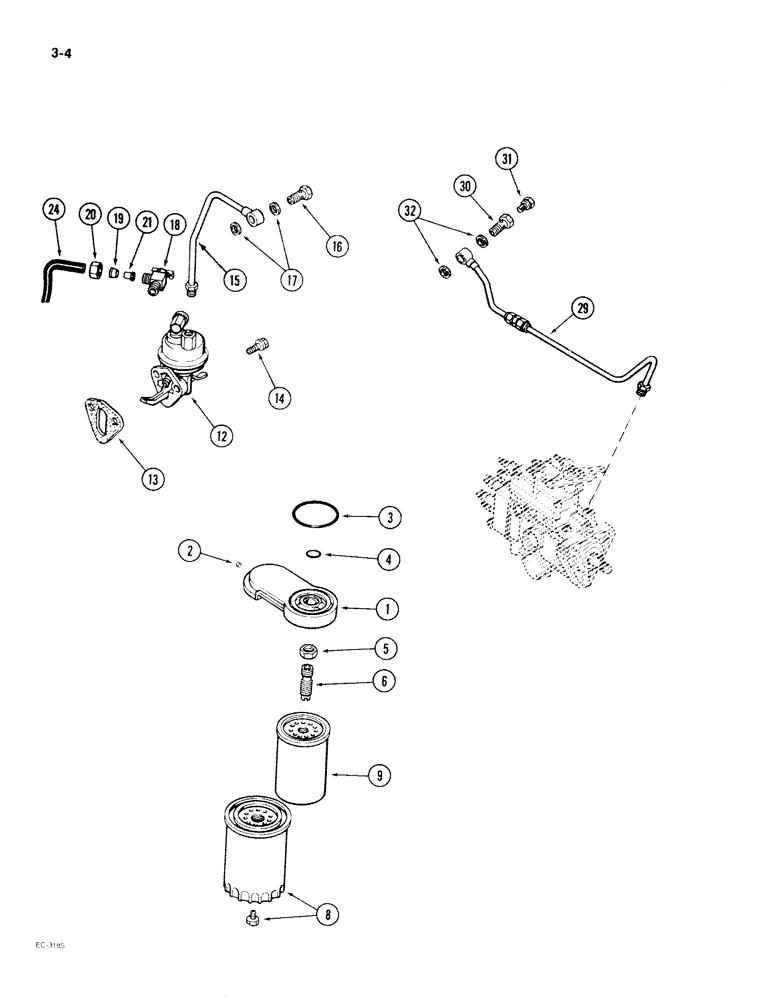

Запчасти Case IH 2096 (3-004) - FUEL FILTER AND LIFT PUMP, 6TA-590 ENGINE (03) - FUEL SYSTEM

1

J915240

SUPPORT

HEAD ASSEMBLY - fuel filter (Replaces J904362), Includes: Ref. 2

1шт.

2

211-101

BALL,1/4" Dia, Stainless

- 1/4 inch, grade 25, stainless steel (Replaces A77432)

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - fuel filter head, 70 mm ID (Replaces J903546)

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - fuel filter stud, 14 mm ID (Replaces J903846)

1шт.

5

J903293

JAM NUT

- hex, 16 mm

1шт.

6

J903845

BANJO BOLT

ADAPTER - fuel, Includes: Ref. 8 and 9

1шт.

8

J903410

FILTER

fuel, primary, 30 micron

1шт.

9

J903640

FILTER, FUEL

FILTER - fuel, secondary (25 Micron)

1шт.

12

J904374

PUMP

ASSEMBLY - lift, fuel

1шт.

13

J914304

GASKET

- fuel lift pump (Replaces J904044)

1шт.

14

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

15

J907582

FUEL TUBE,8 mm OD x 250.6 mm L

TUBE ASSEMBLY - fuel supply

1шт.

16

J903035

BANJO BOLT

BOLT - banjo hex, 12 mm x 24 mm

1шт.

17

J903037

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

2шт.

18

A181554

VALVE

- fuel shut-off, Includes: Ref. 19 and 20

1шт.

19

222-5186

SLEEVE,3/8" Tube

- 3/8 inch tube O.D.

1шт.

20

222-5181

NUT,9/16"-24

NUT - hex, 3/8 tube O.D. x 17/32-24 inch

1шт.

21

222-2446

INSERT,1/4" Tube

SLEEVE - spherical, 3/8 inch tube O.D.

1шт.

24

REF

INSTRUCTION

TUBE - nylon, fuel supply (See Figure 3-012)

1шт.

29

J912783

FUEL TUBE,363.9, 84 mm L

TUBE ASSEMBLY - fuel supply (Replaces J908986)

1шт.

30

J905860

BANJO BOLT

BOLT - banjo hex, special, Includes: Ref. 31

1шт.

31

J911446

BANJO BOLT,M12 x 1.5 x 24mm

BOLT, BANJO, M12 x 1.5 x 24

2шт.

32

J903037

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

2шт.

A77470

SEPARATOR

FILTER KIT

1шт.
