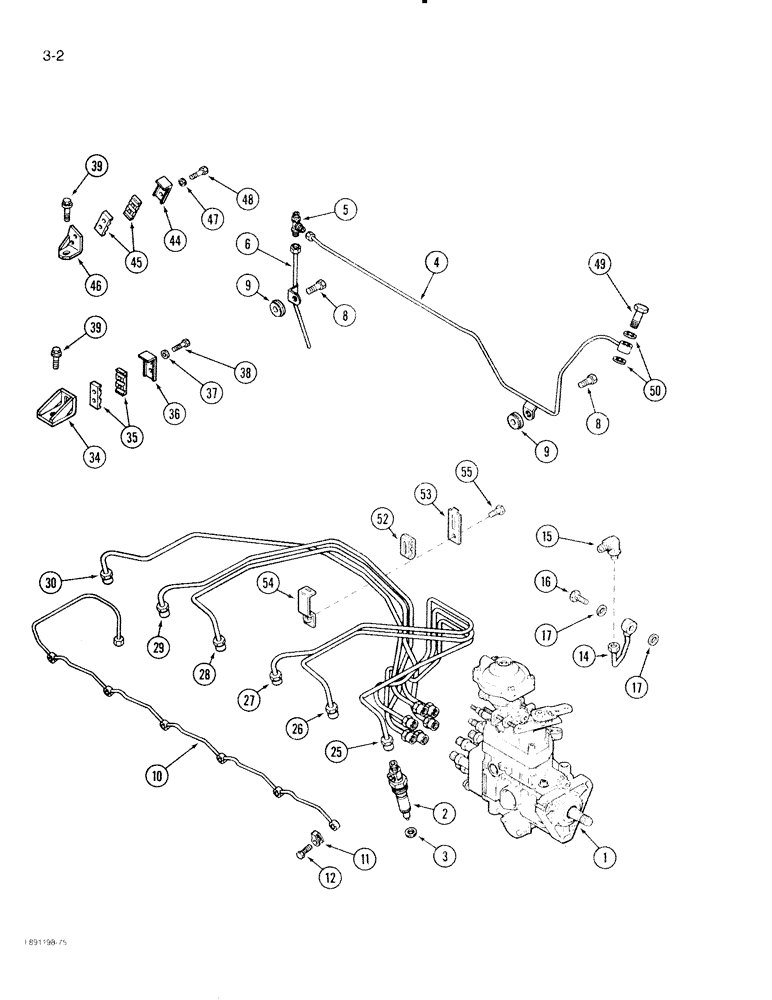

Запчасти Case IH 2096 (3-002) - FUEL INJECTION SYSTEM, 6TA-590 ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-006)

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel (See Figure 3-008)

6шт.

3

J900808

SEAL

- injector

6шт.

4

J905709

FUEL TUBE

TUBE ASSEMBLY - fuel drain (Replaces J905707)

1шт.

5

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing (Remove and discard hex nuts and sleeves at assembly)

1шт.

6

J905692

FUEL TUBE

TUBE ASSEMBLY - fuel return, tee to fuel tank

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

9

J900267

SEAL

ASSEMBLY - cover bolt

2шт.

10

J909696

TUBE

TUBE ASSEMBLY - manifold, fuel drain

1шт.

11

J903380

SEAL

- connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

14

J910004

FUEL TUBE,4.76 mm OD x 101.9 mm L

TUBE - injection pump aneroid

1шт.

15

J910265

ELBOW

- male adapter

1шт.

16

J903729

BANJO BOLT,M8 x 1 x 17mm

BOLT - banjo, aneroid tube

1шт.

17

J903728

PACKING RING

WASHER - sealing

2шт.

25

J915419

FUEL TUBE,2 mm ID x 6.4 mm OD x 872.5 mm L

TUBE ASSEMBLY - fuel injector, No.1 cylinder

1шт.

26

J915420

FUEL TUBE,2 mm ID x 6.4 mm OD x 872.5 mm L

TUBE ASSEMBLY - fuel injector, No.2 cylinder

1шт.

27

J915421

FUEL TUBE,2 mm ID x 6.4 mm OD x 872.5 mm L

TUBE ASSEMBLY - fuel injector, No.3 cylinder

1шт.

28

J907814

FUEL TUBE,2 mm ID x 6.4 mm OD x 872.5 mm L

TUBE ASSEMBLY - fuel injector, No.4 cylinder

1шт.

29

J907815

FUEL TUBE,2 mm ID x 6.4 mm OD x 872 mm L

TUBE ASSEMBLY - fuel injector, No.5 cylinder

1шт.

30

J907816

FUEL TUBE,2 mm ID x 6.4 mm OD x 872 mm L

TUBE ASSEMBLY - fuel injector, No.6 cylinder

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube, Includes: Ref. 34 - 38

1шт.

34

J917777

BRACE

BRACKET - fuel tube

1шт.

35

J917747

CLAMP

ISOLATOR - fuel tube

2шт.

36

J904519

SUPPORT

PLATE - clamp

1шт.

37

J903723

WASHER

- flat, 5 mm

2шт.

38

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

2шт.

39

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, Hex Flg Hd, M8 x 1.25 x 25

2шт.

A77529

BRACKET

ASSEMBLY - fuel tube, Includes: Ref. 44 - 47

1шт.

44

J904519

SUPPORT

PLATE - clamp

1шт.

45

J917747

CLAMP

ISOLATOR - fuel tube

2шт.

48

J917778

BRACE

- fuel tube

1шт.

46

J903723

WASHER

- flat

2шт.

47

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

2шт.

49

REF

INSTRUCTION

BOLT - banjo connector (See Figure 3-006)

1шт.

50

REF

INSTRUCTION

WASHER - sealing (See Figure 3-006)

1шт.

52

J916417

CLAMP

INSULATOR - fuel supply tube

1шт.

53

J916418

SUPPORT

BRACE - fuel tube

1шт.

54

J916420

SUPPORT

BRACE - fuel tube

1шт.

55

864-6010

HEX SOC SCREW,M6 x 10mm, Cl 8.8

BOLT - hex socket, 6 - 1 x 10 mm

1шт.
