Запчасти Case IH 2096 (2-040) - OIL PUMP AND OIL PAN, 6TA-590 ENGINE (02) - ENGINE

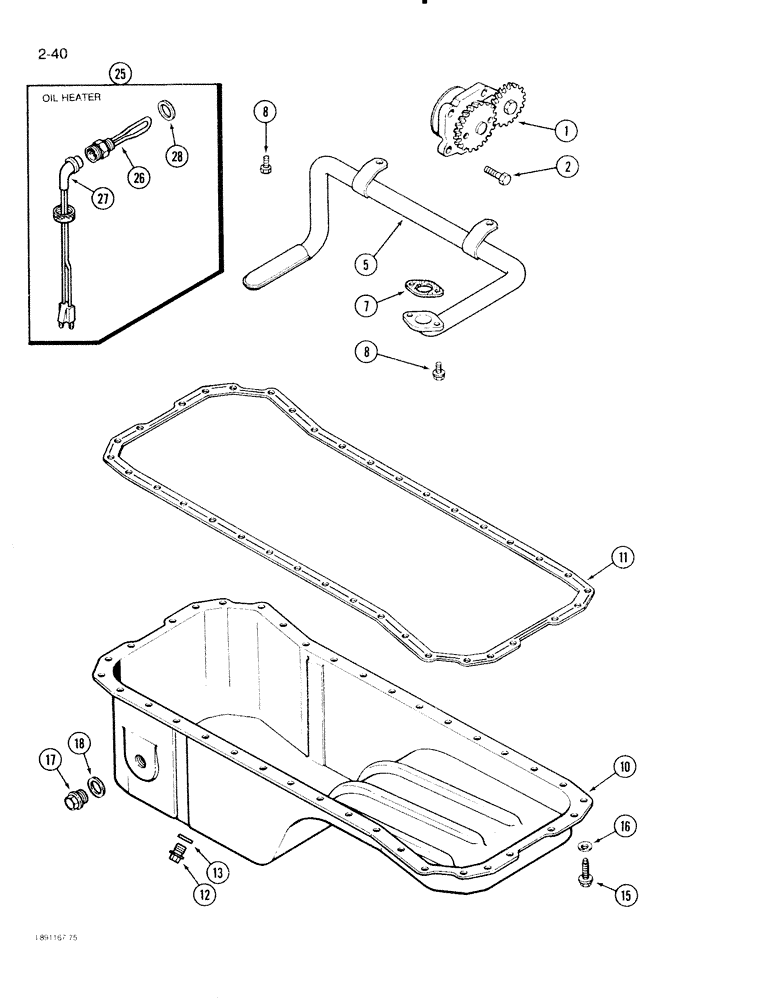

Схема запчастей Case IH 2096 - (2-040) - OIL PUMP AND OIL PAN, 6TA-590 ENGINE (02) - ENGINE
12
16
28
13
26
8
18
25
8
11
5
17
1
27
10
2
7
15

Артикул

Название

Примечание

Количество

1

J914006

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, engine (New) (Replaces J906414)

1шт.

JR914006

PUMP

PUMP ASSEMBLY - engine oil, remanufactured (North America Only)

1шт.

JC914006

CORE-HYDRAULIC PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

JR937404

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured ENGINE OIL PUMP - For N.A. only

1шт.

JC937404

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, HH, CL 8.8, M8 x 1.25 x 30

4шт.

5

J909374

TUBE

TUBE AND SCREEN - oil suction

1шт.

7

J914383

GASKET

GASKET - mounting, tube (Replaces J905468)

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

8

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

3шт.

10

J915703

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine (Replaces J901288)

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A77492)

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

12

J900215

PLUG

PLUG - drain, oil (Alternate with J911638 plug)

1шт.

12

J911638

PLUG,M18 x 1.5

PLUG - drain, oil magnetic (Alternate with J900215 plug)

1шт.

13

J900216

PACKING RING

WASHER - seal, drain plug

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

15

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT, Hex, Flg Hd, M8 x 25, Spcl

36шт.

16

J907537

SPRING WASHER

WASHER - spring

36шт.

17

J904386

PLUG

PLUG - hex flange

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug

1шт.

A77676

GASKET KIT

GASKET KIT - oil pan, Includes: Ref. 7, 11 and 13, Replaces A77492

1шт.

25

A77490

KIT

KIT - heater, engine oil, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77490)

1шт.

27

J905113

CABLE

CABLE - engine block heater

1шт.

28

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing

1шт.

Выбрано товаров: 26
