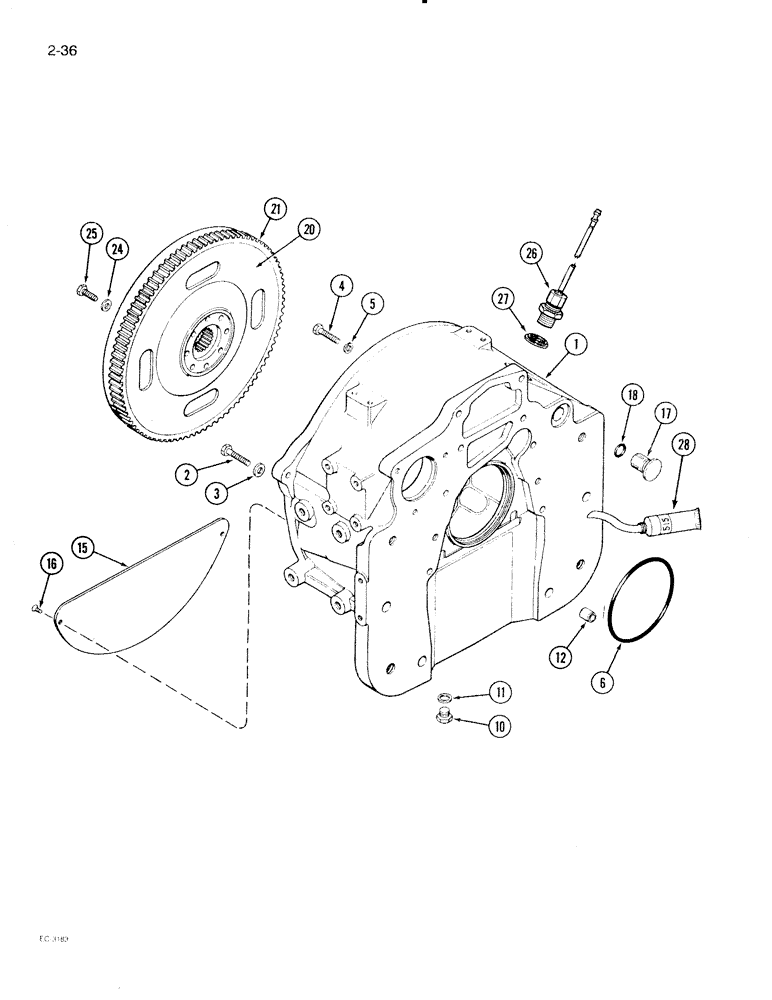

Запчасти Case IH 2096 (2-036) - FLYWHEEL AND HOUSING, 6TA-590 ENGINE (02) - ENGINE

1

A179398

HOUSING

- flywheel

1шт.

2

826-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

- hex, 12 - 1.75 x 55 mm, class 10.9

8шт.

3

A157918

WASHER

- flat, hardened, 12 mm

8шт.

4

826-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9

2шт.

5

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

2шт.

6

238-5362

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

- 6-1/4 ID x 1/16 inch wide

1шт.

10

A140222

PLUG

- drain, transmission housing

1шт.

11

A58608

GASKET

- drain plug

1шт.

12

A168288

PIN

DOWEL - locating

2шт.

15

A157973

BAFFLE

- clutch oil

1шт.

16

A168131

HEX SOC SCREW,Flat Hd, M4 x 10mm, Gr 8.8

SCREW - metric, flat socket head

2шт.

17

J910248

PLUG

- housing

1шт.

18

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

20

J905032

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 21

1шт.

21

A27920

GEAR

- ring

1шт.

24

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, flywheel bolt

8шт.

25

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex head, 12 mm x 32 mm

8шт.

26

A186169

TRANSMITTER

SENSOR - magnetic, engine speed

1шт.

27

A163366

SEAL

- nagnetic sensor

1шт.

28

345-118

SEALANT

COMPOUND - gasket eliminator (Loctite 515)

1шт.
