(2-030) - CYLINDER BLOCK, 6TA-590 ENGINE (CONTD)

Запчасти Case IH 2096 (2-030) - CYLINDER BLOCK, 6TA-590 ENGINE (CONTD) (02) - ENGINE

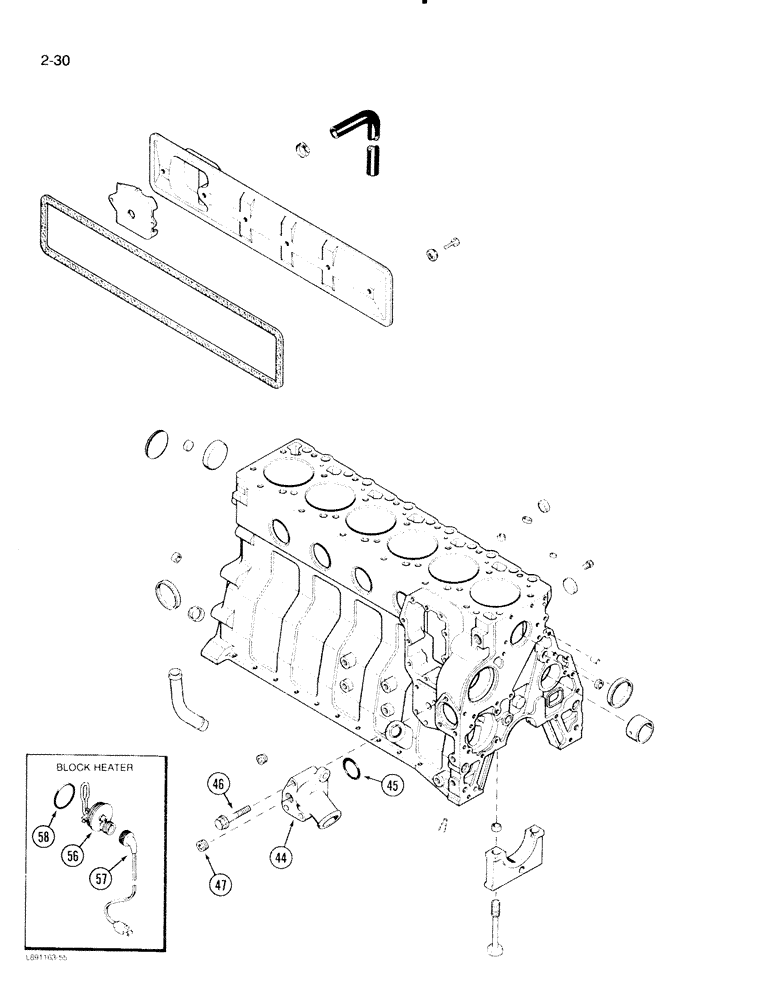

Схема запчастей Case IH 2096 - (2-030) - CYLINDER BLOCK, 6TA-590 ENGINE (CONTD) (02) - ENGINE
46
44
47
58
57
56
45
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

44

J903102

CONNECTION

- water inlet

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing

1шт.

46

J901757

FLANGE BOLT,Hex, M10 x 75mm, Cl 10.9

BOLT - hex flange, M10 x 75 mm

3шт.

47

A77429

PLUG

BLOCK ASSEMBLY - stripped engine (Also order J905813 kit)

1шт.

A77634

KIT

HEATER KIT - engine block, Includes: Ref. 56 - 58

1шт.

56

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 12 volt

1шт.

57

J905113

CABLE

- heater, block

1шт.

58

J910517

O-RING

- heater sealing

1шт.
