Запчасти Case IH 2096 (2-028) - CYLINDER BLOCK, 6TA-590 ENGINE (02) - ENGINE

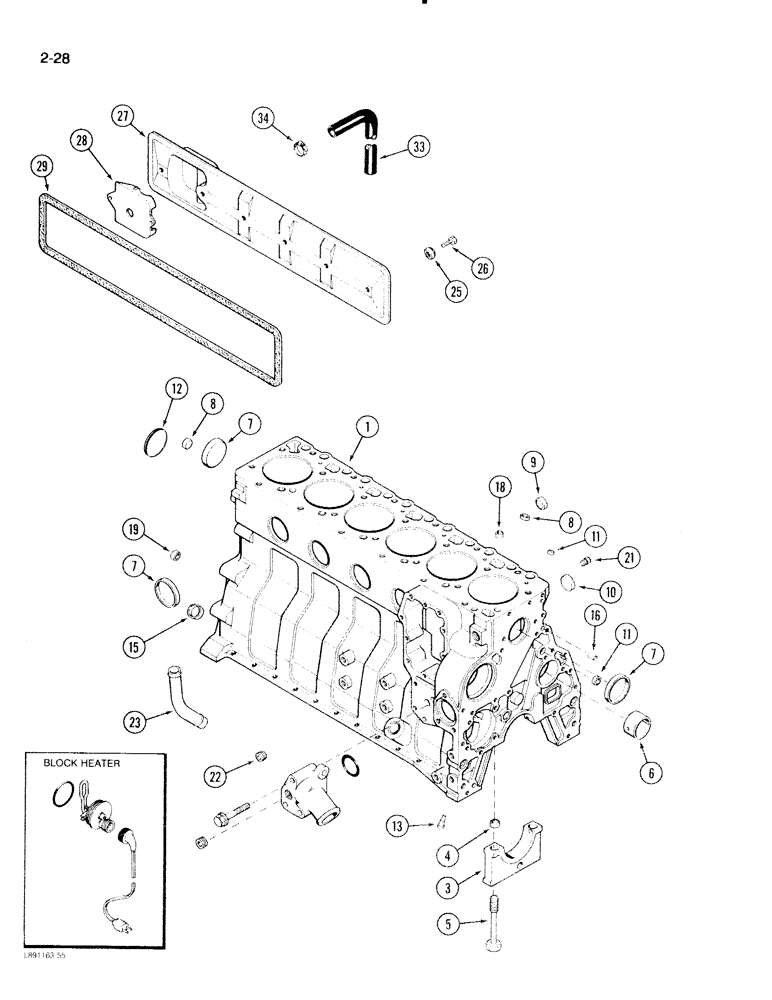

Схема запчастей Case IH 2096 - (2-028) - CYLINDER BLOCK, 6TA-590 ENGINE (02) - ENGINE
25
11
1
7
34
5
13
8
33
19
11
18
26
9
7
10
29
15
4
6
16
7
3
8
23
28
12
22
21
27

Артикул

Название

Примечание

Количество

A174272

ENGINE ASSEMBLY

- complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe)

1шт.

1989107C2R

REMAN-REPLACEMENT EN

1шт.

6TA-590C

CORE-REPLACEMENT ENG

Return Part Number

1шт.

1989097C1

BASIC ENGINE

ENGINE ASSEMBLY - basic, new

1шт.

P/N 1989097C1 includes all parts except: starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel & housing, oil fill & dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner, turbocharger and aftercooler.

1шт.

1989097C3R

ENGINE, EXCHANGE

Remanufactured

1шт.

1989097C2C

CORE-ENGINE

Return Part Number

1шт.

J908151

SKELETON ENGINE

BLOCK ASSEMBLY - short, new (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings) (Also order J905813 kit), Includes: Ref. 1 - 9

1шт.

JR933184

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933184

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J905810

CRANKCASE

BLOCK ASSEMBLY - stripped engine (Also order J905813 kit), Includes: Ref. 3 - 9

1шт.

3

J900967

BEARING CAP

CAP - main bearing

7шт.

4

J900068

BEARING WASHER

RING - dowel, 18 mm O.D.

14шт.

5

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

- bearing cap, special

14шт.

6

REF

INSTRUCTION

BUSHING - camshaft, front (See Figure 2-026)

1шт.

7

J900965

PLUG

- expansion, 58 mm O.D.

6шт.

8

J900956

PLUG

- expansion, 18 mm O.D.

3шт.

9

A77539

PLUG

- magnetic expansion, 26 mm

4шт.

J905813

PACKAGE, REPAIR

HARDWARE KIT - block, engine, Includes: Ref. 10 - 22

1шт.

10

J900958

PLUG

- expansion, 32 mm O.D.

1шт.

11

J900955

PLUG

- expansion, 10 mm O.D.

2шт.

12

J900687

PLUG

- expansion, (Welch), 60 mm O.D.

1шт.

13

J901020

NOZZLE CAP

NOZZLE - piston cooling

6шт.

15

A77439

PLUG

- expansion, 0.886 mm O.D.

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long

2шт.

18

J902343

DOWEL

RING - dowel, 16 mm O.D.

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm O.D.

1шт.

21

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

2шт.

22

A77429

PLUG

- hex socket pipe, 1/2-14 inch PT

1шт.

23

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

25

J900267

SEAL

ASSEMBLY - cover bolt

4шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

4шт.

27

J911822

COVER

- tappet

1шт.

28

J907586

BAFFLE

- tappet cover

1шт.

29

J907617

GASKET

- tappet cover

1шт.

33

NSS

NOT SOLD SEPARAT

HOSE - breather, 660 mm long (Order 1977295C1, Serial Range: cut-length)

1шт.

34

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - retaining

1шт.

J905786

DIPSTICK

1шт.

J905425

TUBE,9.52 mm OD x 93 mm L

dipstick

1шт.

J906704

O-RING

oil fill tube

1шт.

J901249

FLANGE BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT oil fill tube

1шт.

J905440

TUBE

oil fill

1шт.

A77424

FILLER CAP

CAP ASSEMBLY fill tube

1шт.

J903102

CONNECTION

HOUSING inlet water

1шт.

J901467

O-RING,Square, 5.16mm Thk x 50.17mm ID

housing water inlet

1шт.

J901757

FLANGE BOLT,Hex, M10 x 75mm, Cl 10.9

BOLT housing water inlet

1шт.

A77429

PLUG

hex socket pipe, 1/2" PT

1шт.

Выбрано товаров: 47
