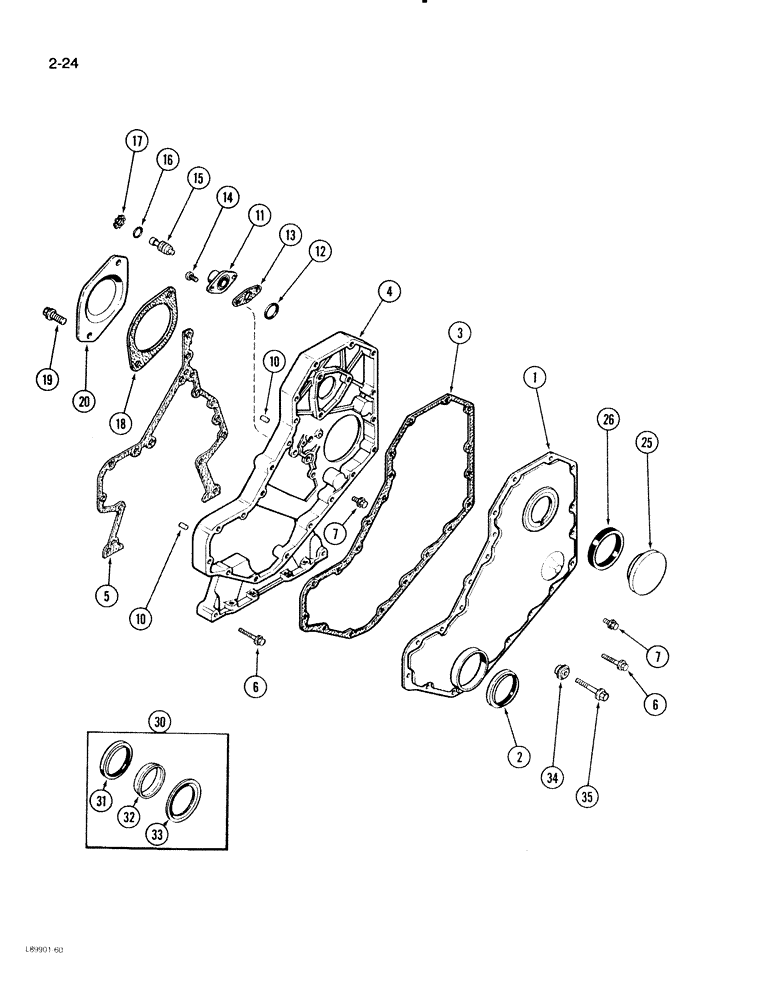

Запчасти Case IH 2096 (2-024) - FRONT GEAR COVER, 6TA-590 ENGINE (02) - ENGINE

1

J903794

COVER

- gear, front (Replaces J903663)

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, cover (Order Ref. 30)

1шт.

3

J914385

GASKET,1.02mm Thk

- front cover (Replaces J910500)

1шт.

4

J910411

HOUSING

- timing gear (Replaces J905731)

1шт.

5

J916131

GASKET

- gear housing (Replaces J907836)

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm

11шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

16шт.

10

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long

2шт.

11

J905933

HOUSING

- timing pin

1шт.

12

J914092

O-RING

- pin housing (Replaces J903396)

1шт.

13

J905595

GASKET

- pin housing (Used with J903923 housing)

1шт.

14

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

15

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

16

J913994

O-RING

- sealing (Replaces J903927)

1шт.

17

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

18

J913192

GASKET

- cover plate (Replaces A77441)

1шт.

19

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm

2шт.

20

J909918

PLATE

- cover, access (Replaces A77440)

1шт.

25

J903463

PLUG,M63 x 5

- tachometer drive hole

1шт.

26

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.

30

J904353

GASKET KIT

SEAL KIT - oil, crankshaft front, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

34

J912772

RETAINER

- bolt

1шт.

35

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 60 mm

1шт.

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - rectangular (Not Shown)

1шт.
