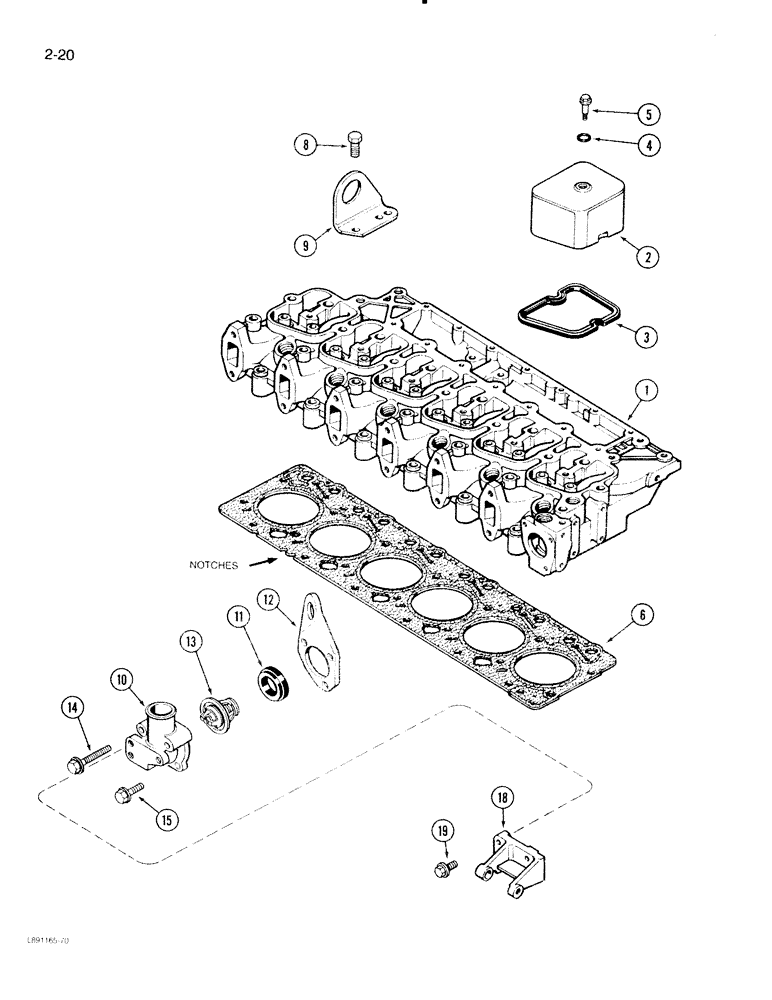

Запчасти Case IH 2096 (2-020) - CYLINDER HEAD COVER, 6TA-590 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder (See Figure 2-022)

1шт.

2

J902604

COVER

- rocker, valve

6шт.

3

J902666

GASKET

SEAL - rocker cover

6шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

5

J907049

BOLT,Hex

- hex flange, 8 mm x 21 mm

6шт.

6

A77755

GASKET

- head, standard (Replaces J907057)

1шт.

6

J917359

GASKET

- head, 0.23 mm thicker (2 Notches) (Replaces J907058)

1шт.

6

J915724

CYLINDER HEAD GASKET

- head, 0.5 mm thicker (3 Notches) (Replaces J907059)

1шт.

8

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm

2шт.

9

J908118

BRACKET

- lifting, rear

1шт.

10

J914409

HOUSING

- thermostat (Replaces J903756)

1шт.

11

J920020

GASKET

- housing (Replaces J903301), thermostat and housing

1шт.

12

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

13

A77736

THERMOSTAT

- water, 95 degree C (Replaces J910706), thermostat and housing

1шт.

14

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm, Thermostat and housing

2шт.

15

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Thermostat and housing

1шт.

18

J910713

SUPPORT

- alternator mounting (Replaces J908774), thermostat and housing

1шт.

19

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat and housing

4шт.
